Frequency758~803MHz, Frequency703~748MHz, 选通路数4 in, 4 out
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

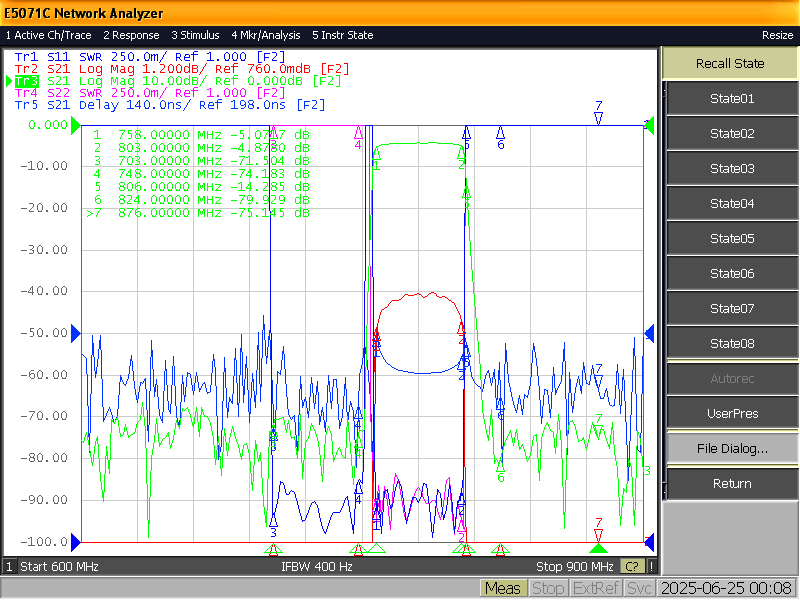

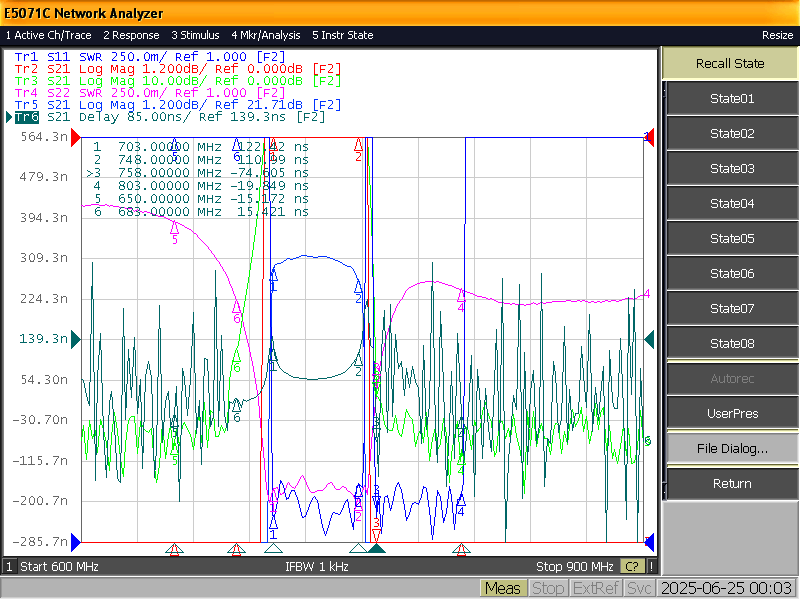

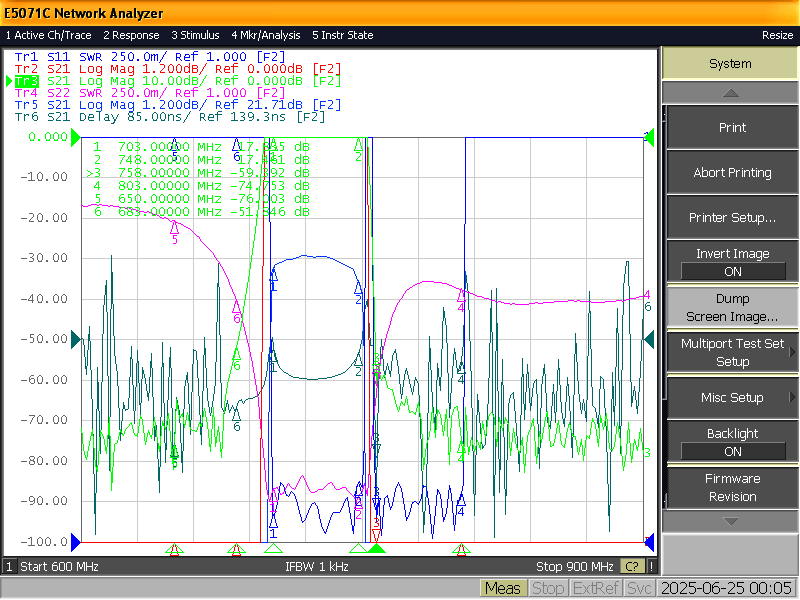

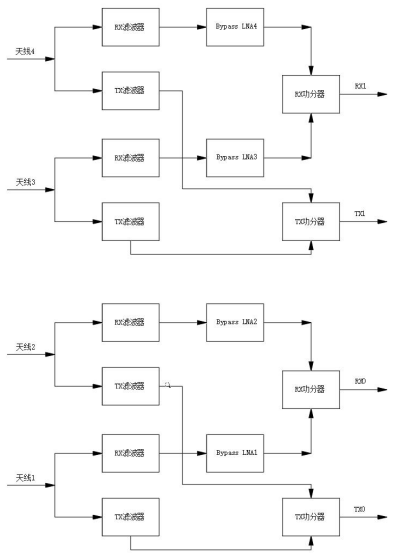

| 参数TX | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 758 | ~ | 803 | MHz |
| IL | 5.5 | dB | ||
| 带内驻波 | 1.5 | |||
| 功分隔离度 | 28 | dB | ||
| Power Capacity | 50 | W | ||
| Ripple | 1.2 | dB | ||
| Group delay | 140 | ns | ||
| Rejection | 80 | dBc@DC~703MHz | ||
| Rejection | 104 | dBc@703~748MHz | ||
| Rejection | 5 | dBc@806~824MHz | ||
| Rejection | 73 | dBc@824~876MHz | ||
| Rejection | 90 | dBc@876~915MHz | ||
| Rejection | 60 | dBc@915~1427MHz | ||
| Rejection | 80 | dBc@1427~2700MHz | ||
| Rejection | 60 | dBc@2700~3000MHz |
| 参数RX | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 703 | ~ | 748 | MHz |
| Noise figure | 2.2 | |||
| 输出P-1 | 10 | dBm | ||
| 带内增益 | 15 | dB | ||
| 带内驻波 | 1.5 | |||
| 功分隔离度 | 28 | dBm | ||
| Ripple | 1.2 | dB | ||
| Group delay | 85 | ns | ||
| Rejection | 65 | dBc@DC~650MHz | ||
| Rejection | 40 | dBc@650~683MHz | ||
| Rejection | 90 | dBc@758~803MHz | ||
| Rejection | 80 | dBc@803~1400MHz | ||
| Rejection | 60 | dBc@1400~3000MHz |
| 选通路数 | 4 in, 4 out |
| Impedance | 50Ω |

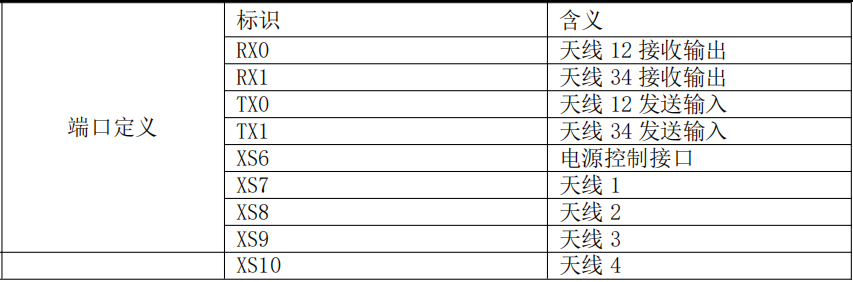

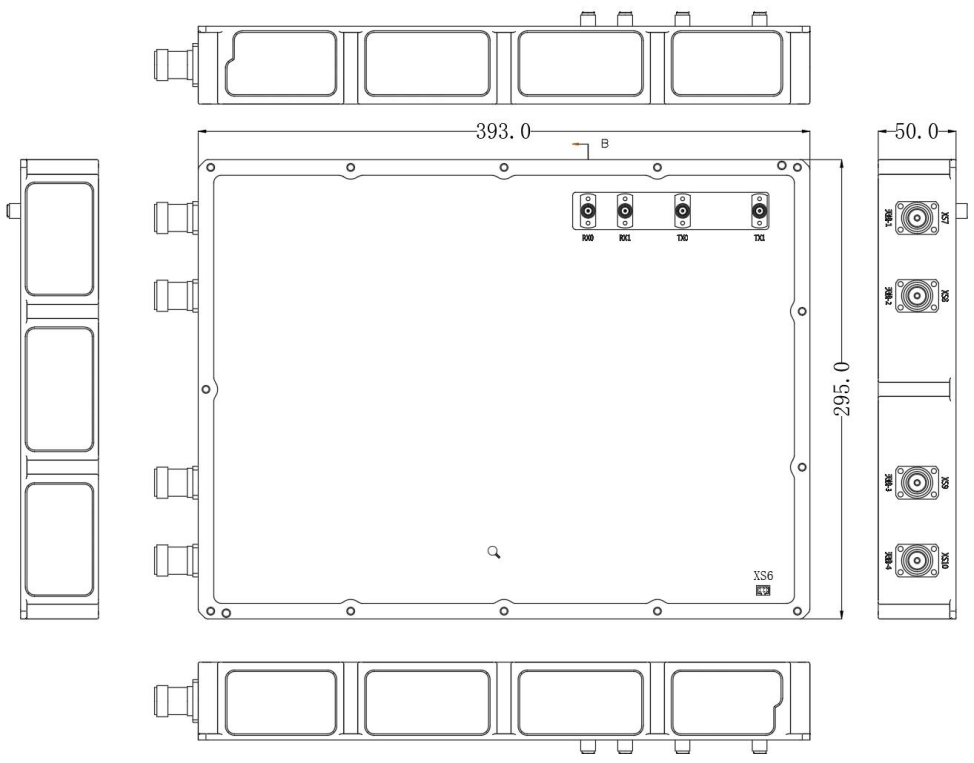

| 射频接口方式 | RX&TX端口BMA-KFB2天线端口4.3-10 |

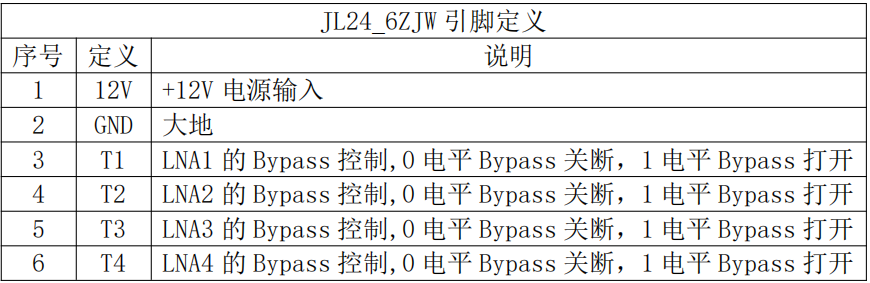

| 低频接口方式 | JL24-6ZJW |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
