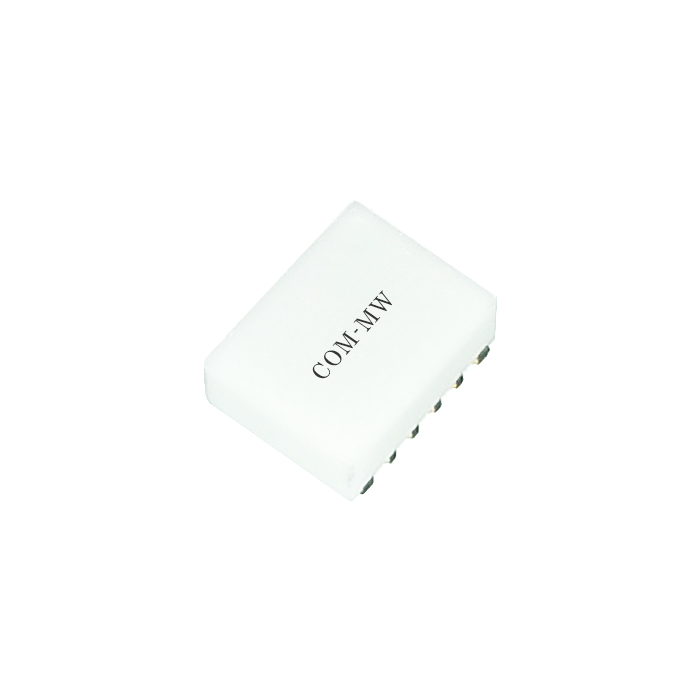

RF Frequency5~4200MHz, IL11.8dB, Power Capacity0.2W, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| RF Frequency | 5 | ~ | 4200 | MHz |
| LO Frequency | 5 | ~ | 4200 | MHz |
| IF Frequency | 5 | ~ | 3500 | MHz |
| IL | 11.8 | dB | ||
| LO-RF ISO | 28 | dB | ||
| LO-IF ISO | 17 | dB | ||
| RF-IF ISO | 18 | dB |
| Power Capacity | 0.2W Design assurance |
| LO input power | +13dBm |
| Connector | SMD |
| Operation Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| ROHS | Compliant Available |

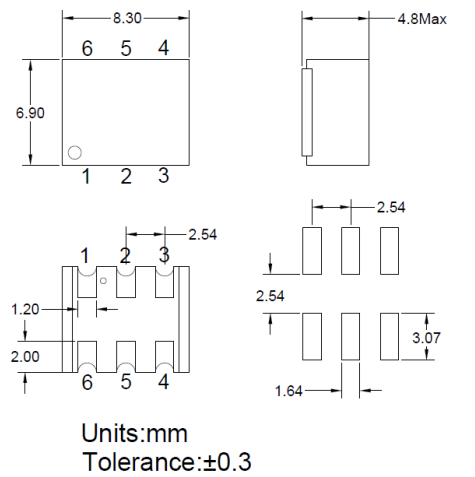

| Pin number | 2 | 3 | 6 | other |
|---|---|---|---|---|
| Pin Definition | IF | RF | LO | GND |

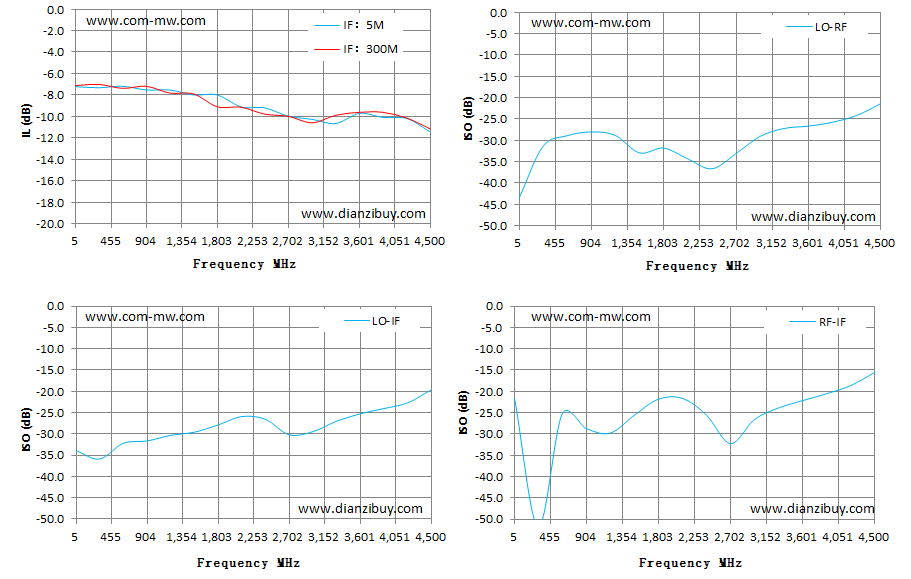

| Frequency MHz | IF：5M 损耗dB | IF：300M 损耗dB | LO-IF ISO dB | LO-RF ISO dB | RF-IF ISO dB |
|---|---|---|---|---|---|
| 5.00 | -7.22 | -7.12 | -33.91 | -43.53 | -21.61 |
| 300.00 | -7.32 | -7.01 | -35.90 | -31.45 | -51.76 |
| 600.00 | -7.18 | -7.38 | -32.20 | -28.94 | -25.28 |
| 900.00 | -7.53 | -7.19 | -31.66 | -28.05 | -28.71 |
| 1200.00 | -7.54 | -7.82 | -30.33 | -28.85 | -29.78 |
| 1500.00 | -7.99 | -7.90 | -29.58 | -32.96 | -25.60 |
| 1800.00 | -8.00 | -9.10 | -27.90 | -31.82 | -21.83 |
| 2100.00 | -9.11 | -9.14 | -25.91 | -34.35 | -21.61 |
| 2400.00 | -9.20 | -9.78 | -26.57 | -36.68 | -25.55 |
| 2700.00 | -9.97 | -9.99 | -30.20 | -33.10 | -32.25 |
| 3000.00 | -10.27 | -10.59 | -29.46 | -29.08 | -26.58 |
| 3300.00 | -10.66 | -9.89 | -27.02 | -27.22 | -23.89 |
| 3600.00 | -9.71 | -9.61 | -25.27 | -26.68 | -22.16 |
| 3900.00 | -10.09 | -9.62 | -24.03 | -25.78 | -20.54 |
| 4200.00 | -10.19 | -10.15 | -22.70 | -24.19 | -18.63 |
| 4500.00 | -11.46 | -11.18 | -19.62 | -21.40 | -15.52 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
