RF Frequency9kHz~67GHz, Conversion loss13dB, Power CapacitydBm, 1.85, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
有源混频器
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| RF Frequency | 9kHz | ~ | 67 | GHz |
| LO Frequency | 9kHz | ~ | 67 | GHz |
| IF Frequency | 9kHz | ~ | 4 | GHz |

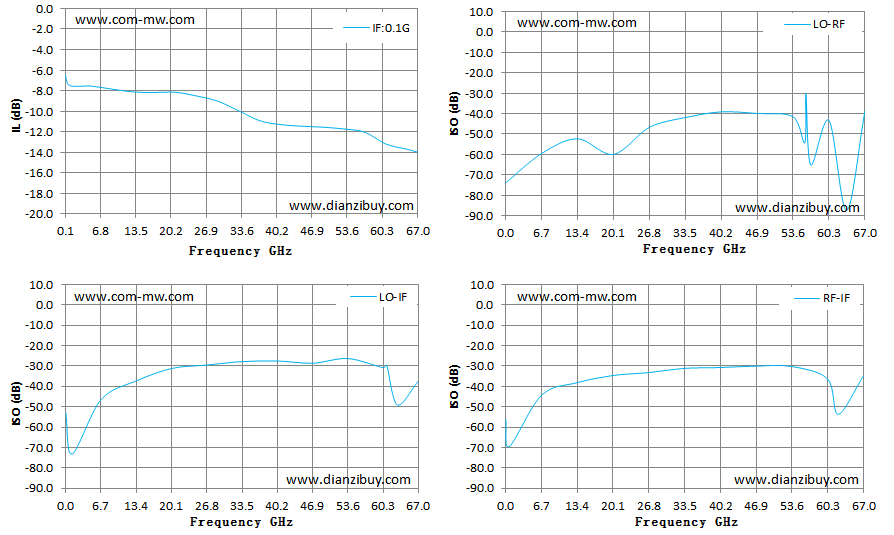

| Conversion loss | 13 | dB | ||
| LO input power | 0 | 3 | 5 | dBm |
| RF input P-1dB | -4 | dBm | ||
| LO-RF ISO | 40 | dB | ||
| LO-IF ISO | 25 | dB | ||
| RF-IF ISO | 20 | dB | ||
| VSWR | 1.8 |
| Power Capacity | dBm Design assurance |
|---|---|
| Impedance | 50Ω |
| 射频/中频接口形式 | 1.85-F or K |
| 中频接口形式 | SMA-F or K |
| Working voltage | 8~12V |
| Working current | 75mA |
| Operation Temp. | -40~+65℃ Design assurance |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
|---|
