Product features

Broadband, gain negative slope.

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	400	~	8500	MHz
Gain	30		43	dB
Gain flatness		≤5dBpk-pk follow gain slope		dB
Noise figure			3	dB
VSWR			2.2
P-1dB	14			dBm
OIP3		28		dBm

Other parameters

Connector	SMA
Working voltage	+12V
Working current	300mA
Reverse isolation	70dB
Operation Temp.	-30~+70℃ Design assurance
Other	Maximum input power: 10dBm; 400MHz gain ≥ 30, 8500MHz gain ≥ 43.

Typical test data

Frequency GHz	S11 VSWR	S22 VSWR	S21 Gain	S21 Noise	S21 P-1dB	S21 Psat dBm
0.1	1.47	1.36	30.45	4.67	17.4	19.1
0.81	1.15	1.5	30.95	2.78	17.2	18.9
1.51	1.29	1.47	32.05	2.78	17	19.1
2.22	1.48	1.38	33.61	2.57	16.2	18.9
2.93	1.6	1.33	35.36	2.58	15.9	18.6
3.64	1.54	1.33	37.16	2.31	16.3	18.5
4.34	1.37	1.32	38.53	2.27	16.8	18.3
5.05	1.27	1.34	39.2	2.28	17.3	20.2
5.76	1.25	1.47	39.95	2.4	17.7	20.6
6.46	1.12	1.74	40.73	2.43	17.7	20.1
7.17	1.43	1.84	42.25	2.64	17.8	19.5
7.88	1.83	1.8	43.65	2.66	17.8	19.7
8.59	1.93	1.91	43.61	2.87	17.6	18.8
9.29	2.82	1.29	41.93	3.49	17.2	19.3
10	4.7	1.52	39.24	3.39	16.1	18.7

Reference picture

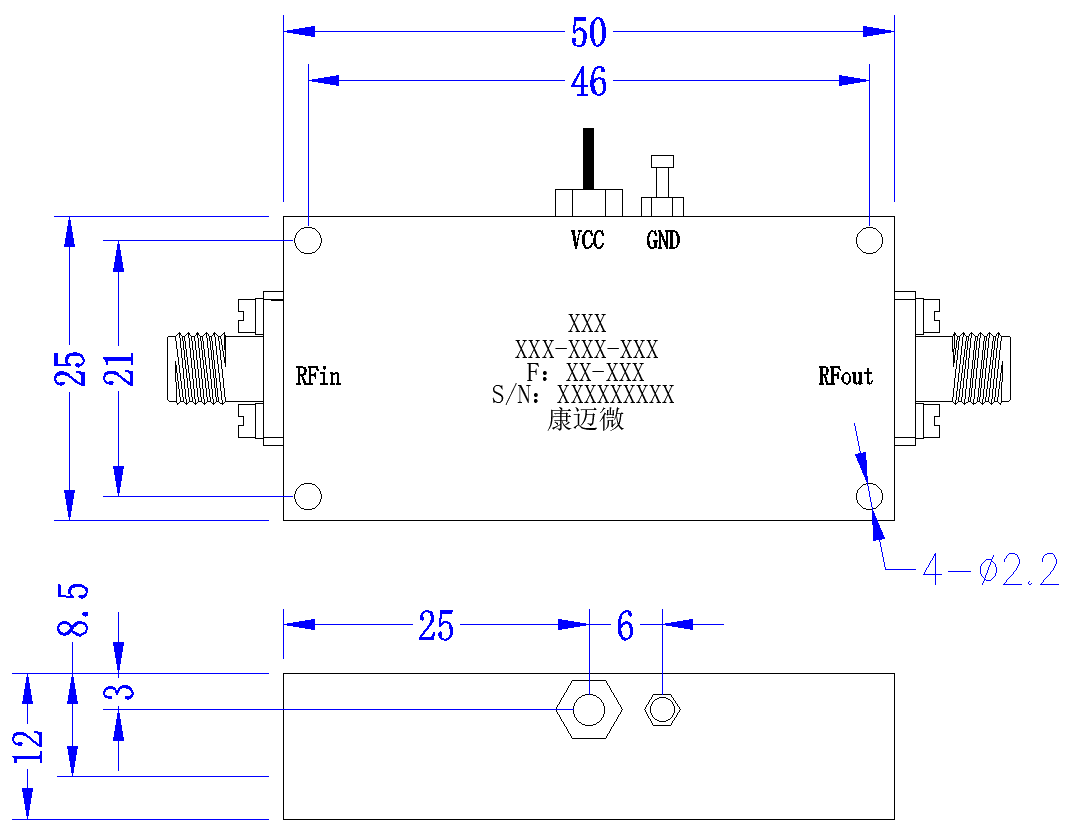

Configuration(mm)

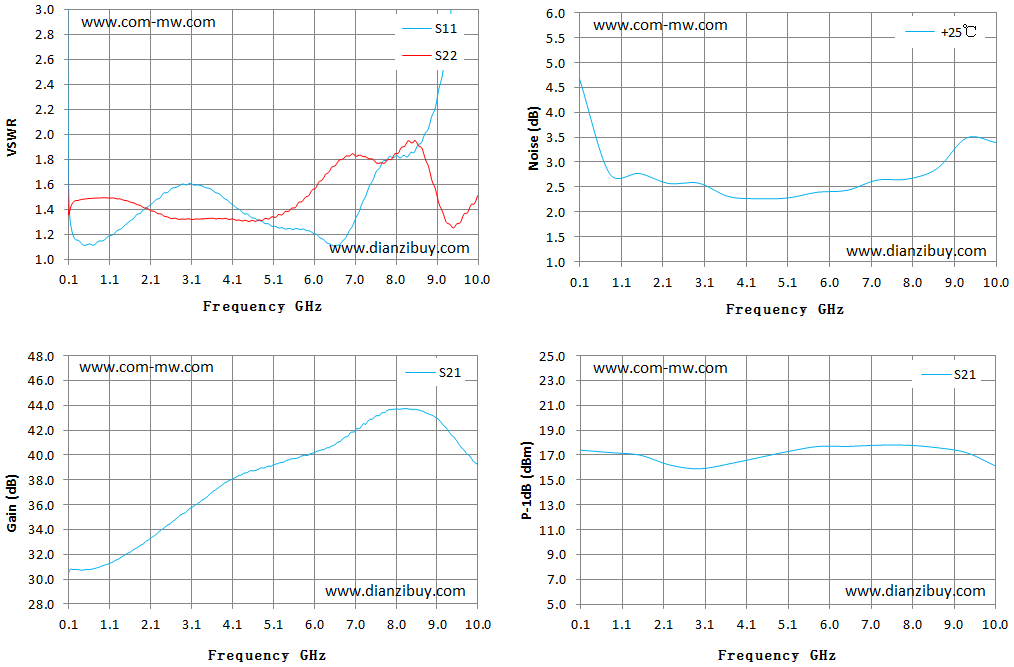

Typical test curve

Testing mode

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

LNA DLNA8-400-8500-3881
