Product features

Broadband, gain negative slope.

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	400	~	8500	MHz
Gain	30		43	dB
Gain flatness		≤5dBpk-pk follow gain slope		dB
Noise figure			3	dB
VSWR			2.2
P-1dB	14			dBm

Other parameters

Connector	SMA
Working voltage	+12V
Working current	300mA
Operation Temp.	-30~+70℃ Design assurance
Other	Maximum input power: 10dBm; 400MHz gain ≥ 30, 8500MHz gain ≥ 43.

Typical test data

F(MHz)	P-1(dBm)	NF(dB）	S11VSWR	S22VSWR	Gain(dB)
300	17.2	2.62	1.3	1.45	30.9
1080	17.7	2.68	1.22	1.41	31.4
1960	17.2	2.36	1.33	1.49	32.6
2840	16.5	2.28	1.49	1.63	34.4
3720	16.1	1.93	1.43	1.5	35.8
4600	17.2	1.89	1.21	1.2	36.9
5480	17.7	1.83	1.45	1.1	37.3
6360	18.1	1.98	1.74	1.41	38.8
7240	18.3	1.78	1.68	1.79	41.7
8120	18.1	1.83	1.23	1.72	43.5
8500	17.7	2.01	1.15	1.72	43.1

Reference picture

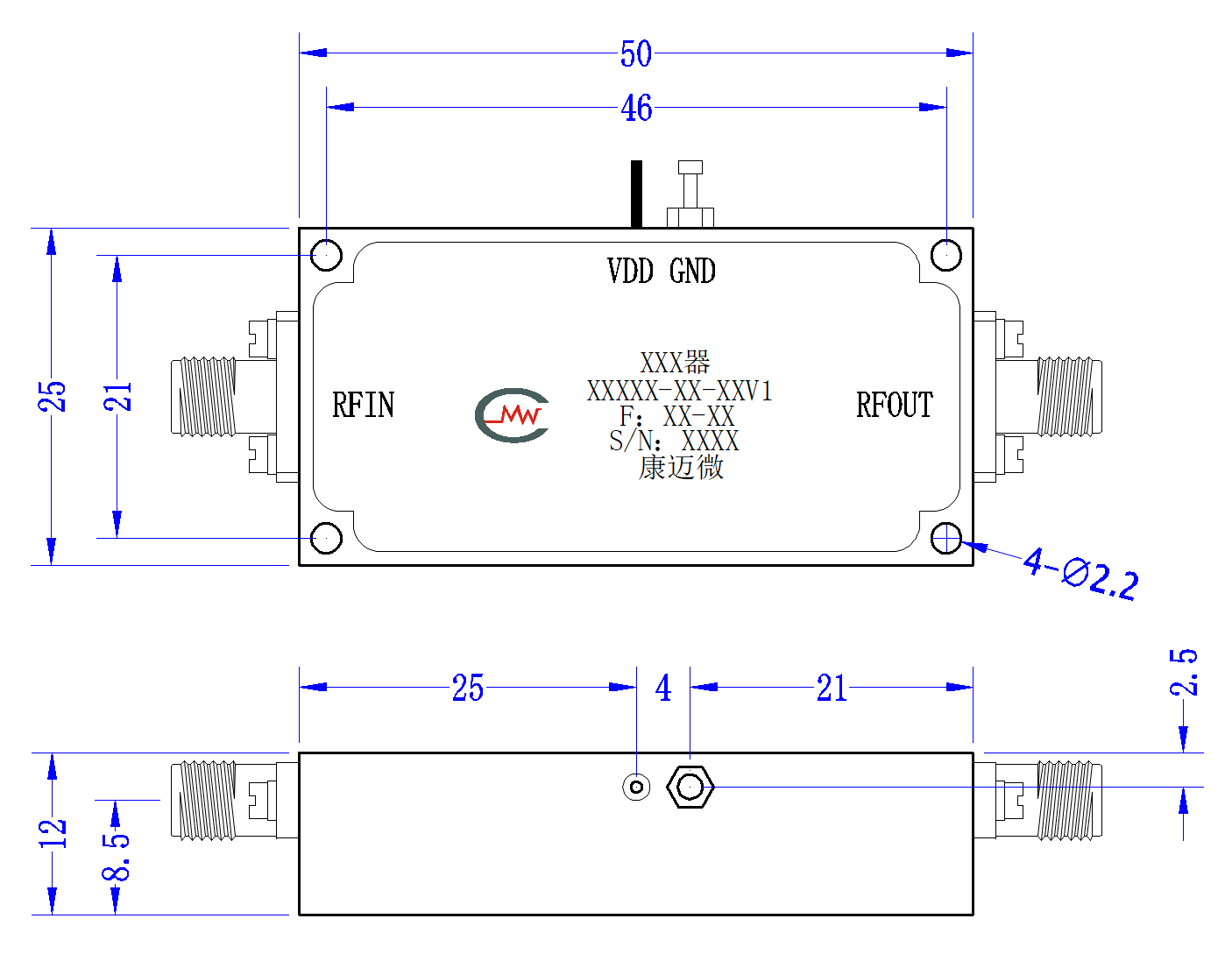

Configuration(mm)

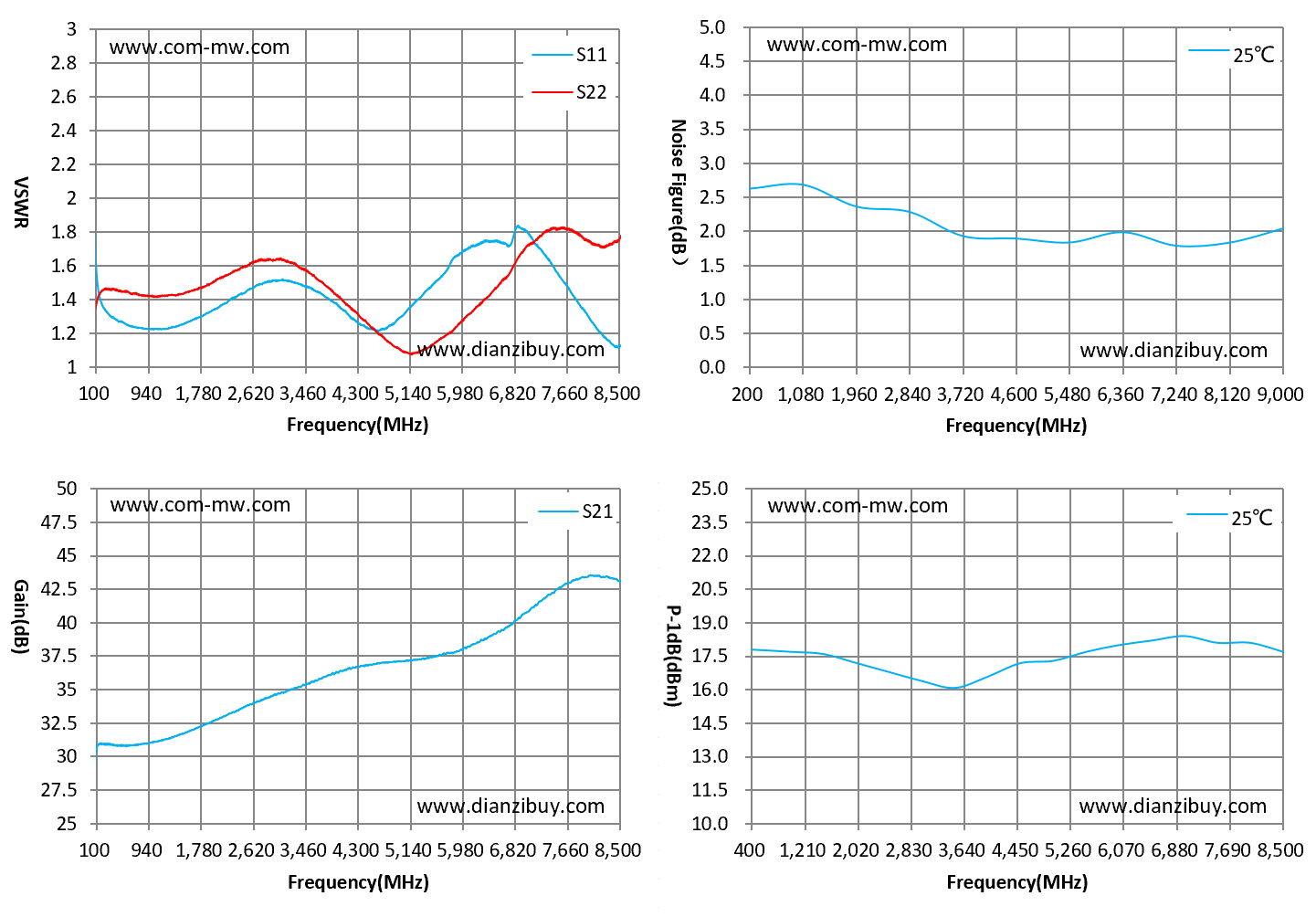

Typical test curve

Testing mode

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

LNA DLNA8-400-8500-1073
