400~8000MHz, Gain20dB, Noise figure1.8dB, P-1dB10dBm, dBm, dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 400 | ~ | 8000 | MHz |
| Gain | 20 | dB | ||
| Gain flatness | 3 | dB | ||
| Gain flatness | 0.1@ Any 20MHz | dB | ||
| Noise figure | 1.8 | 2.5 | dB | |
| VSWR | 1.7 | 2.2 | ||
| P-1dB | 10 | 14 | dBm | |
| Pout（sat） | 15 | dBm | ||
| OIP3 | 22@8GHz | dBm | ||
| Signal leakage | 50 | dB | ||
| Maximum Input Power | 10 | dBm |
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 150mA |
| Operation Temp. | -40~+70℃ Design assurance |

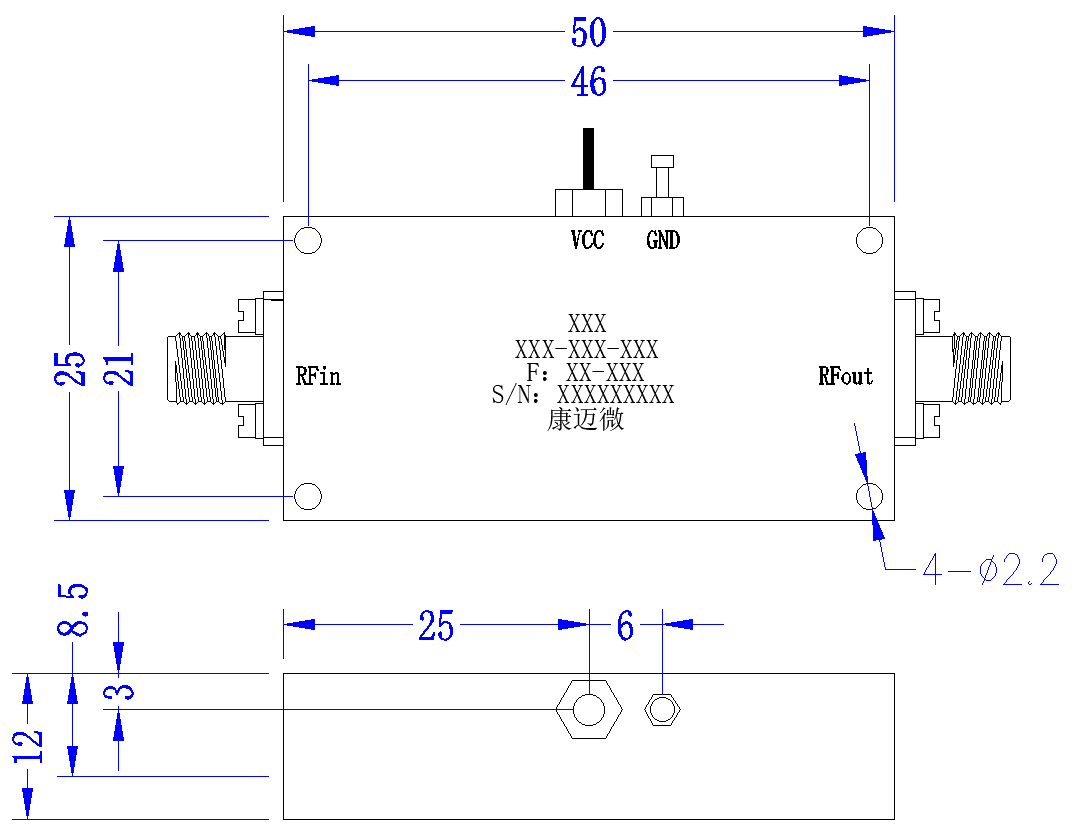

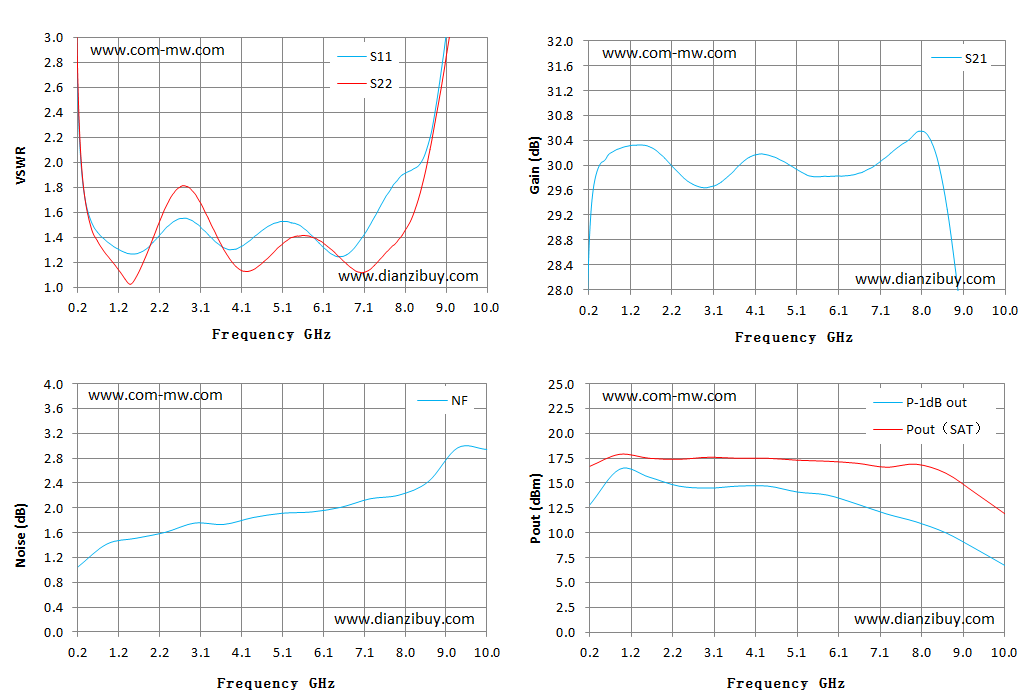

| Frequency GHz | S11 VSWR | S22 VSWR | NF dB | Gain | P-1dB out dBm | Pout（SAT） dBm |
|---|---|---|---|---|---|---|
| 0.20 | 2.50 | 2.61 | 1.04 | 28.41 | 12.84 | 16.70 |
| 0.90 | 1.37 | 1.26 | 1.42 | 30.26 | 16.40 | 17.90 |
| 1.60 | 1.27 | 1.09 | 1.51 | 30.31 | 15.60 | 17.50 |
| 2.30 | 1.48 | 1.65 | 1.61 | 29.89 | 14.70 | 17.40 |
| 3.00 | 1.52 | 1.75 | 1.75 | 29.64 | 14.50 | 17.60 |
| 3.70 | 1.32 | 1.30 | 1.73 | 29.97 | 14.70 | 17.50 |
| 4.40 | 1.40 | 1.15 | 1.84 | 30.17 | 14.70 | 17.50 |
| 5.10 | 1.53 | 1.35 | 1.91 | 29.93 | 14.10 | 17.30 |
| 5.80 | 1.42 | 1.41 | 1.93 | 29.82 | 13.80 | 17.20 |
| 6.50 | 1.25 | 1.23 | 2.01 | 29.86 | 12.90 | 17.00 |
| 7.20 | 1.50 | 1.15 | 2.15 | 30.13 | 11.90 | 16.60 |
| 7.90 | 1.88 | 1.39 | 2.21 | 30.52 | 11.10 | 16.90 |
| 8.60 | 2.16 | 2.05 | 2.43 | 29.43 | 10.00 | 16.00 |
| 9.30 | 3.69 | 3.49 | 2.97 | 25.51 | 8.40 | 14.00 |
| 10.00 | 3.40 | 4.46 | 2.94 | 22.29 | 6.70 | 11.90 |
