400~8000MHz, Gain20dB, Noise figure1.8dB, P-1dB10dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, low noise.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 400 | ~ | 8000 | MHz |
| Gain | 20 | dB | ||
| Gain flatness | 3 | dB | ||
| Noise figure | 1.8 | 2.5 | dB | |
| VSWR | 1.7 | 2.2 | ||
| P-1dB | 10 | 14 | dBm |
| Connector | SMA-K |
|---|---|
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 150mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Installed on the radiator or casing; The maximum input does not damage the power by 10dBm. |

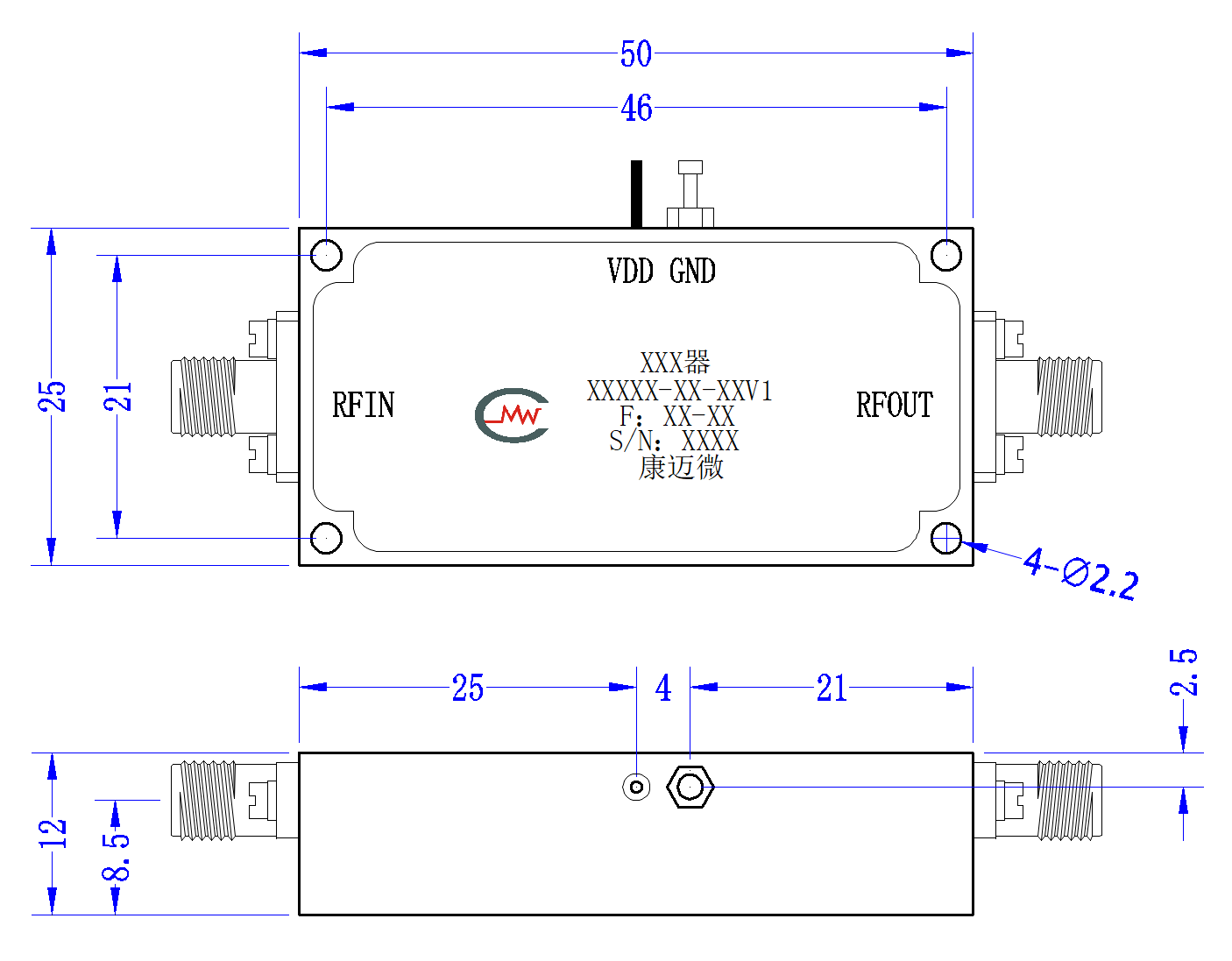

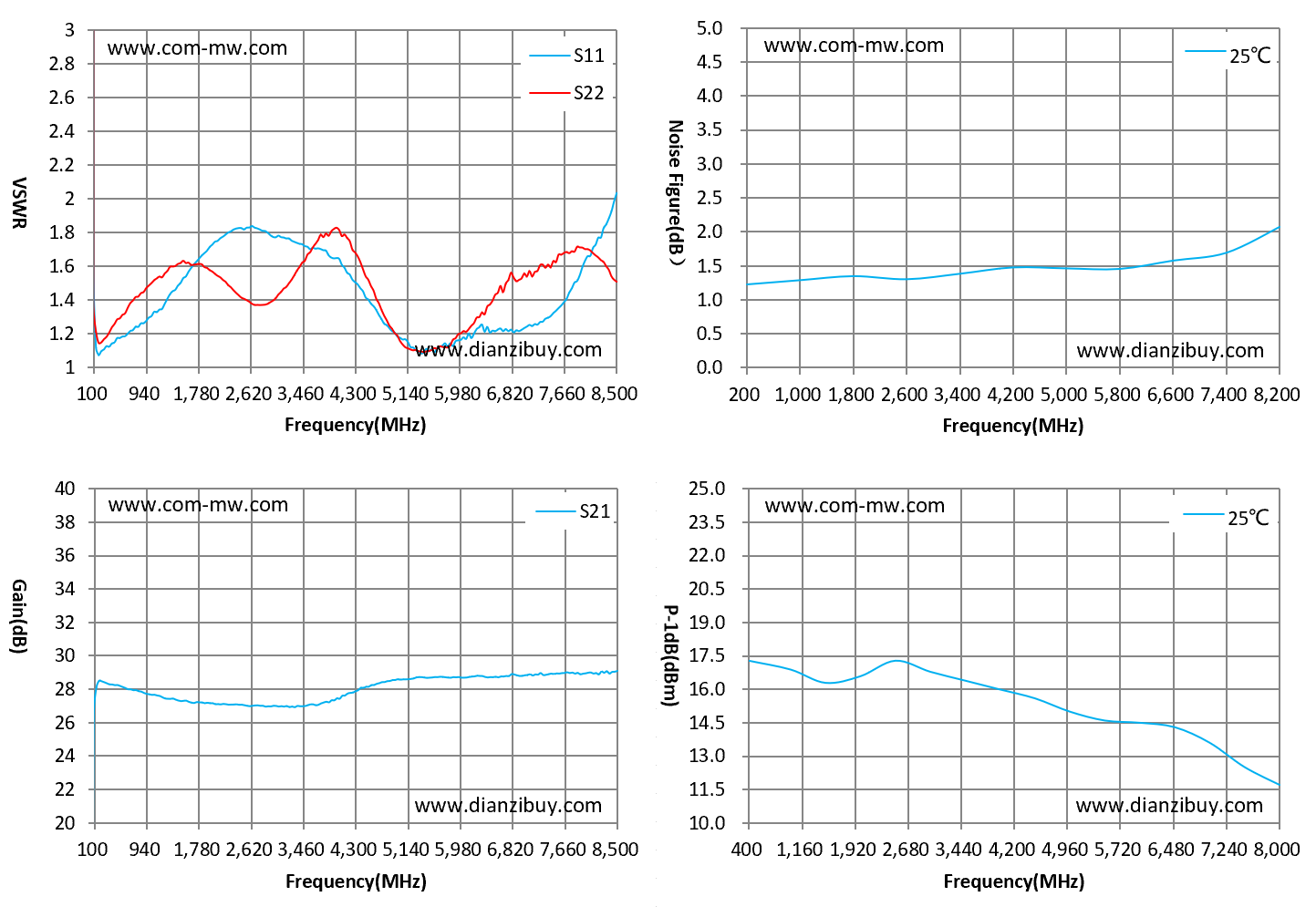

| F(MHz) | P-1(dBm) | NF(dB） | S11VSWR | S22VSWR | Gain(dB) |
|---|---|---|---|---|---|
| 200 | 17.1 | 1.22 | 1.09 | 1.14 | 28.4 |
| 1000 | 16.9 | 1.28 | 1.3 | 1.49 | 27.7 |
| 1800 | 16.5 | 1.34 | 1.66 | 1.61 | 27.2 |
| 2600 | 17.3 | 1.29 | 1.82 | 1.39 | 26.9 |
| 3400 | 16.4 | 1.37 | 1.73 | 1.54 | 28.9 |
| 4200 | 16 | 1.47 | 1.54 | 1.74 | 27.7 |
| 5000 | 15 | 1.45 | 1.17 | 1.15 | 28.5 |
| 5800 | 14.5 | 1.44 | 1.14 | 1.12 | 28.6 |
| 6600 | 14.4 | 1.57 | 1.22 | 1.48 | 28.7 |
| 7400 | 12.5 | 1.68 | 1.33 | 1.62 | 28.8 |
| 8200 | 11.2 | 2 | 1.65 | 1.7 | 28.9 |
