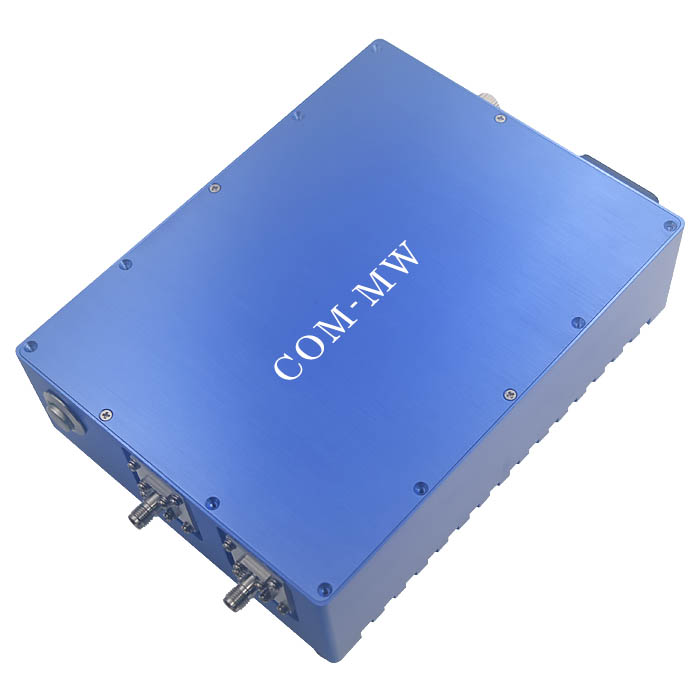

Frequency30~8000MHz, Gain36dB, P-1dB output power12dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 30 | ~ | 8000 | MHz |
| Gain | 36 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| VSWR | 2.2 | |||
| Noise figure | 3.5 | |||
| P-1dB output power | 12 | dBm | ||
| IP3 | 27 | dBm |
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Color conductive oxidation |
| Operation Temp. | -20~+60℃ Design assurance |
| 1 | Power supply method | DC power supply, powered by a 220V power adapter with interface DC5.5mm (outer diameter) * 2.5mm (inner diameter). |
|---|---|---|
| 2 | Surface color | Anodizing treatment (blue) |
| 3 | Shell Material | Shell aluminum material |
| 4 | Instructions for using the power switch | The switch is equipped with a power on indicator, and the light will turn on after power on. Once turned on, it can be used. |
| 1 | Optional | Equipped with a power adapter |
|---|
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
