Frequency30~1000MHz, Gain25, Noise figure2.5, Supports AC power supply and DC power supply
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 30 | ~ | 1000 | MHz |
| Gain | 25 | dB | ||
| Gain flatness | ±1.5 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 2 | |||
| P-1dBm | 15 | dBm | ||
| Max input power | 10 | dBm |
| Connector | N-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |

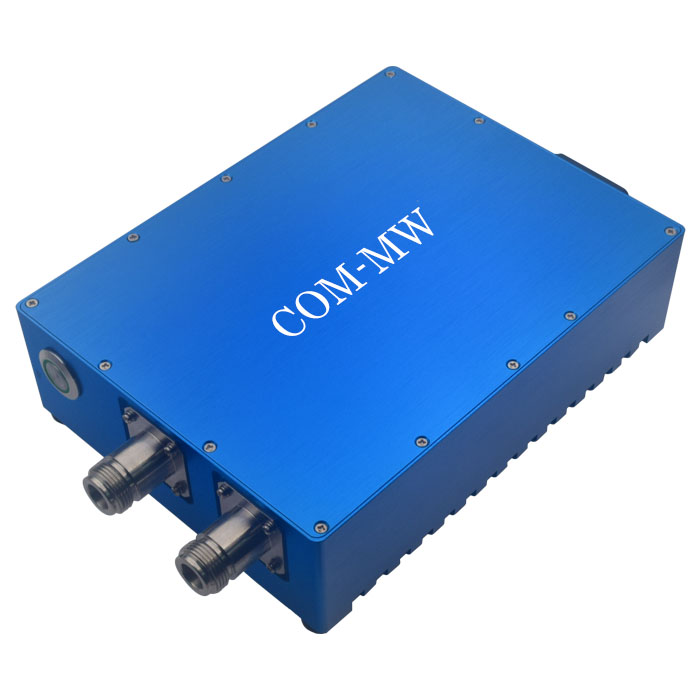

| Surface | Anodizing treatment (blue) |
| Operation Temp. | -20~+50℃ Design assurance |
| Characteristic | Supports AC power supply and DC power supply |
| 1 | Power supply method 1 | Standard AC interface, input voltage range 110-250V |
|---|---|---|
| 2 | Power supply method 2 | DC power supply, interface DC 5.5mm (outer diameter) * 2.1mm (inner aperture) power adapter for power supply |
| 3 | Instructions for using the power switch | The switch is equipped with a power on indicator, and the light will turn on when powered on. Either AC or DC power supply can be used after being turned on, and cannot be powered on at the same time. |
| 1 | Standard configuration | 1 AC national standard power cord | √ |
|---|---|---|---|
| 2 | Optional | 1 power adapter | × |
| 3 | Optional | RF cable 1m | √ |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
| 3 | When directly connecting the antenna, it is necessary to do electrostatic protection, otherwise it is easy to burn the amplifier. |
