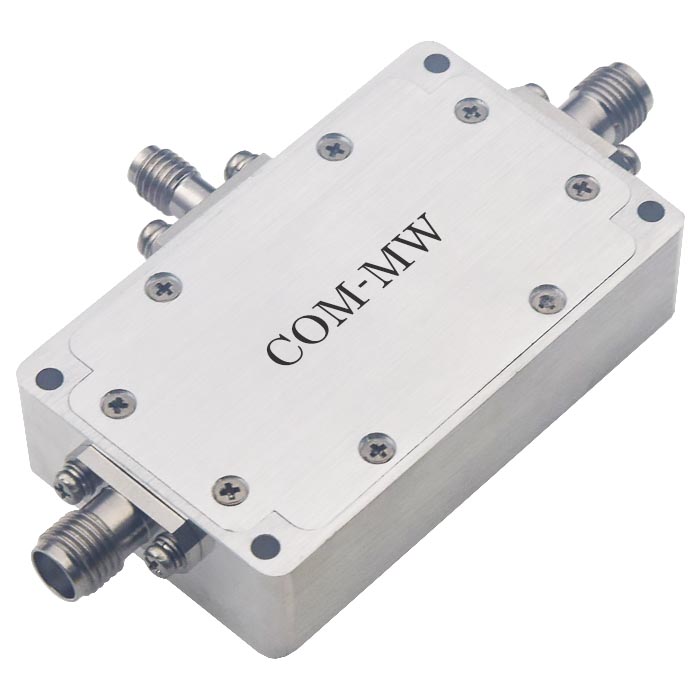

2~6GHz, Gain37dB, Noise figure0.9dB, P-1dB12dBm, SMA-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, low noise.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2 | ~ | 6 | GHz |
| Gain | 37 | 40 | dB | |
| Gain flatness | ±1.25 | dB | ||
| Noise figure | 0.9 | 1.1 | dB | |
| VSWR | 1.5 | 2 | ||
| P-1dB | 12 | 14 | dBm | |
| Maximum Input Power | 10 | dBm | ||
| Spur reduction | 60 | dBc |
| Connector | SMA-K detachable, Pin 0.38mm |
|---|---|
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 200mA |
| Reverse isolation | 55dB, TYP: 60dB |
| Operation Temp. | -40~+75℃ Design assurance |
| Storage Temp. | -55~+125℃ Design assurance |
| Power supply port | SSMA connector power supply, port detachable. |

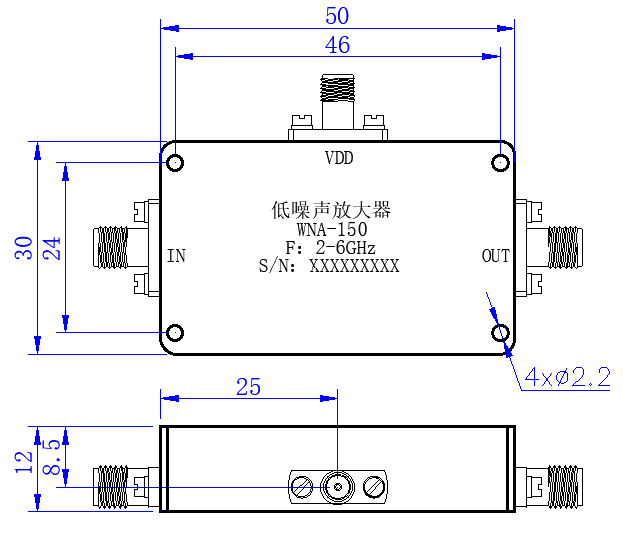

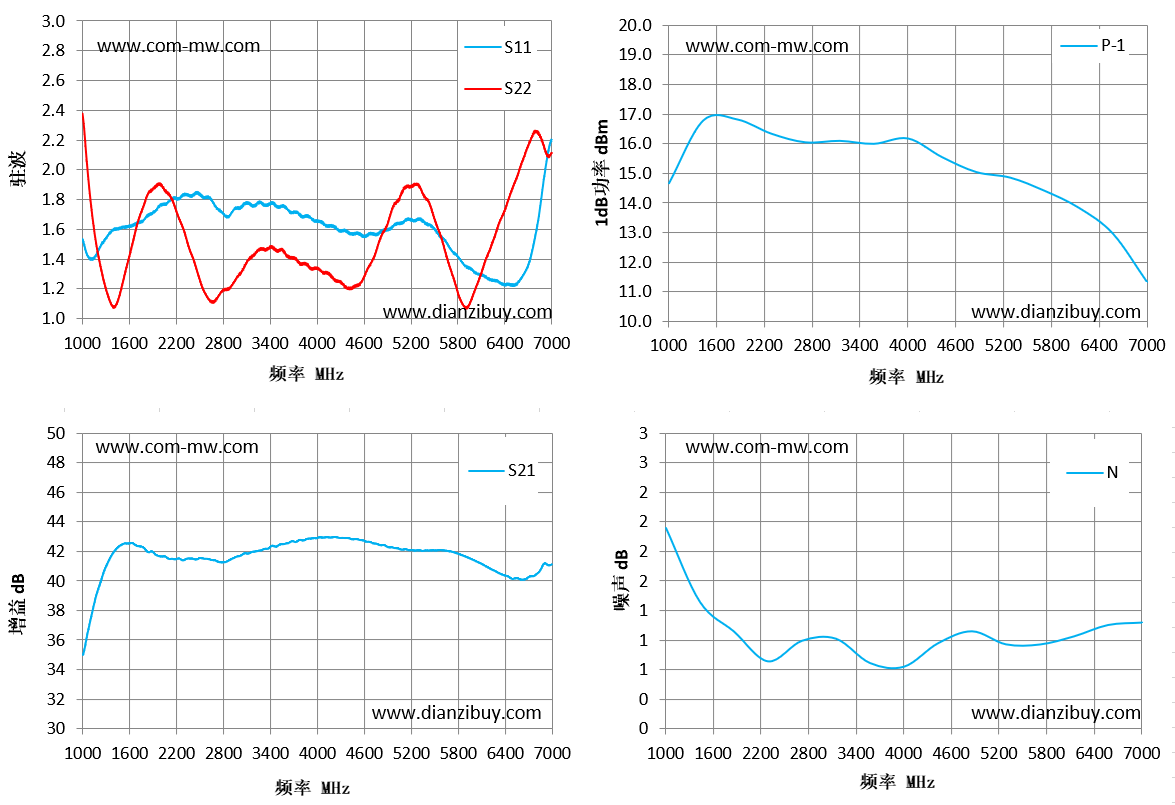

| Frequency(MHz) | S11 VSWR | S22 VSWR | S21 gain | P-1dB | Noise |
|---|---|---|---|---|---|
| 1000 | 1.53 | 2.38 | 34.97 | 14.67 | 2.04 |
| 1429 | 1.6 | 1.09 | 42.19 | 16.78 | 1.29 |
| 1857 | 1.7 | 1.85 | 41.98 | 16.82 | 0.98 |
| 2286 | 1.83 | 1.61 | 41.4 | 16.34 | 0.68 |
| 2714 | 1.74 | 1.13 | 41.34 | 16.05 | 0.89 |
| 3143 | 1.77 | 1.41 | 41.92 | 16.1 | 0.91 |
| 3571 | 1.76 | 1.45 | 42.51 | 16 | 0.66 |
| 4000 | 1.66 | 1.34 | 42.93 | 16.18 | 0.63 |
| 4429 | 1.57 | 1.2 | 42.85 | 15.55 | 0.87 |
| 4857 | 1.59 | 1.59 | 42.43 | 15.05 | 0.99 |
| 5286 | 1.67 | 1.9 | 42.08 | 14.86 | 0.85 |
| 5714 | 1.46 | 1.32 | 41.99 | 14.42 | 0.85 |
| 6143 | 1.28 | 1.38 | 41.03 | 13.85 | 0.94 |
| 6571 | 1.24 | 1.97 | 40.17 | 12.98 | 1.05 |
| 7000 | 2.2 | 2.11 | 41.12 | 11.35 | 1.08 |
