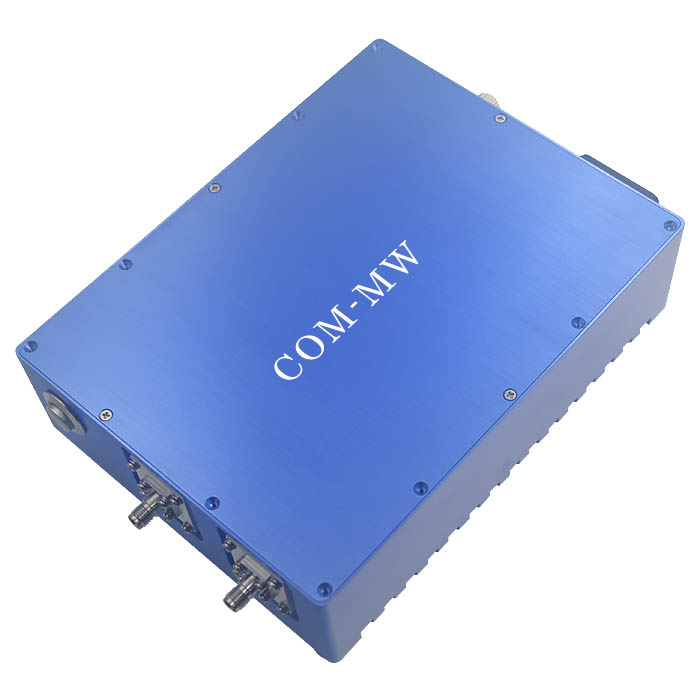

Frequency2~2.4GHz, Gain40dB, P-1dB output power0dBm, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2 | ~ | 2.4 | GHz |
| Gain | 40 | dB | ||
| Gain flatness | ±1 | dB | ||
| Noise figure | 2 | dB | ||
| VSWR | 1.5 | |||
| Spur reduction | 60 | dBc | ||
| P-1dB output power | 0 | dBm |
| Connector | N -K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Spray three proofing paint |
| Operation Temp. | +5~+45℃ Design assurance |
| other | 稳定度≤±1dB/天（设计保证） |
| 1 | Power supply method | 220V电源供电 |
|---|
| 1 | Optional | Equipped with a power adapter |
|---|
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
