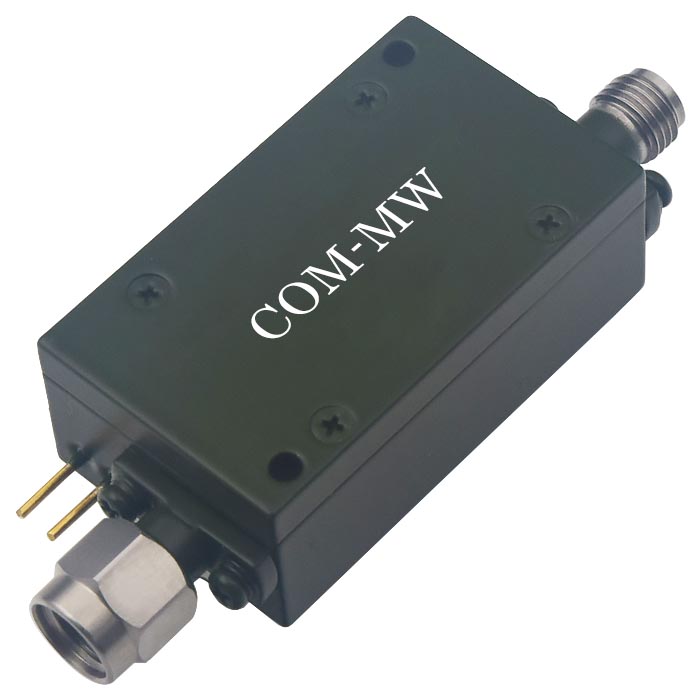

18~40GHz, Gain30dB, Noise figure4.5dB, P-1dB15dBm, 2.92-JK
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 18 | ~ | 40 | GHz |
| Gain | 30 | dB | ||
| Gain flatness | ±2.75 | dB | ||
| Noise figure | 4.5 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 15 | dBm | ||
| Max input power | 10 | dBm |
| Connector | 2.92-JK |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Army green |
| Working voltage | +12V |
| Working current | 200mA |
| Relative humidity | 1%~95% Design assurance |
| Operation Temp. | -40~+70℃ |
| Other | Input limiter |
| The power input has lightning protection measures. | |
| The equipment should have the ability to prevent moisture, salt spray, corrosion, and dust. |

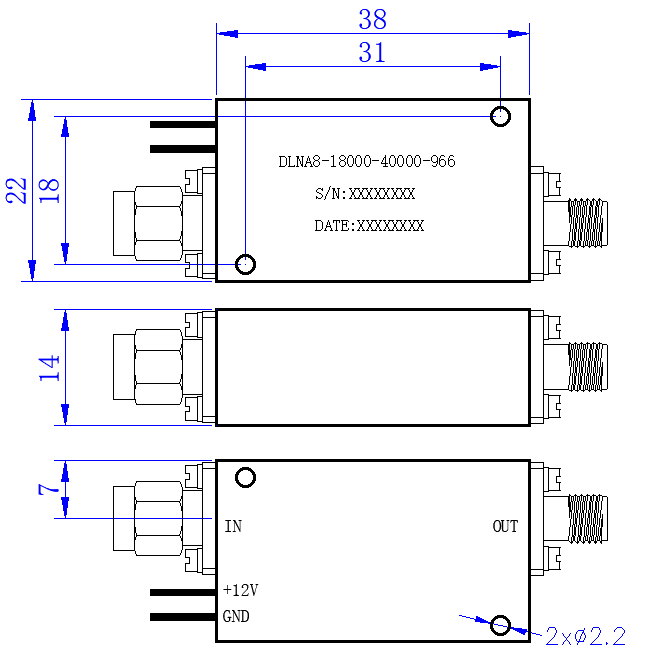

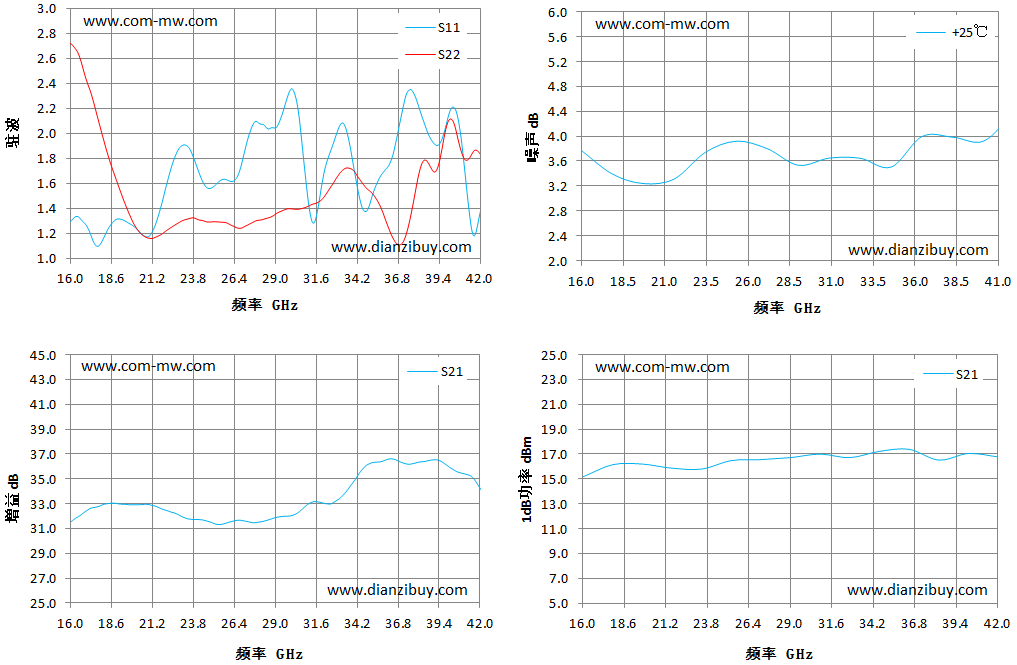

| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 gain | Noise | P-1dB dBm |
|---|---|---|---|---|---|
| 16 | 1.3 | 2.72 | 31.53 | 3.77 | 15.17 |
| 17.86 | 1.12 | 2.05 | 32.81 | 3.39 | 16.15 |
| 19.71 | 1.28 | 1.36 | 32.92 | 3.24 | 16.2 |
| 21.57 | 1.35 | 1.18 | 32.72 | 3.31 | 15.87 |
| 23.43 | 1.9 | 1.32 | 31.79 | 3.74 | 15.8 |
| 25.29 | 1.6 | 1.3 | 31.35 | 3.92 | 16.48 |
| 27.14 | 1.9 | 1.26 | 31.6 | 3.8 | 16.56 |
| 29 | 2.05 | 1.36 | 31.88 | 3.53 | 16.72 |
| 30.86 | 1.72 | 1.41 | 32.73 | 3.65 | 17 |
| 32.71 | 1.93 | 1.61 | 33.1 | 3.65 | 16.72 |
| 34.57 | 1.4 | 1.6 | 35.8 | 3.5 | 17.22 |
| 36.43 | 1.81 | 1.18 | 36.62 | 4 | 17.39 |
| 38.29 | 2.16 | 1.75 | 36.37 | 3.98 | 16.52 |
| 40.14 | 2.19 | 2.12 | 35.91 | 3.92 | 17.05 |
| 42 | 1.37 | 1.84 | 34.27 | 4.42 | 16.78 |
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
