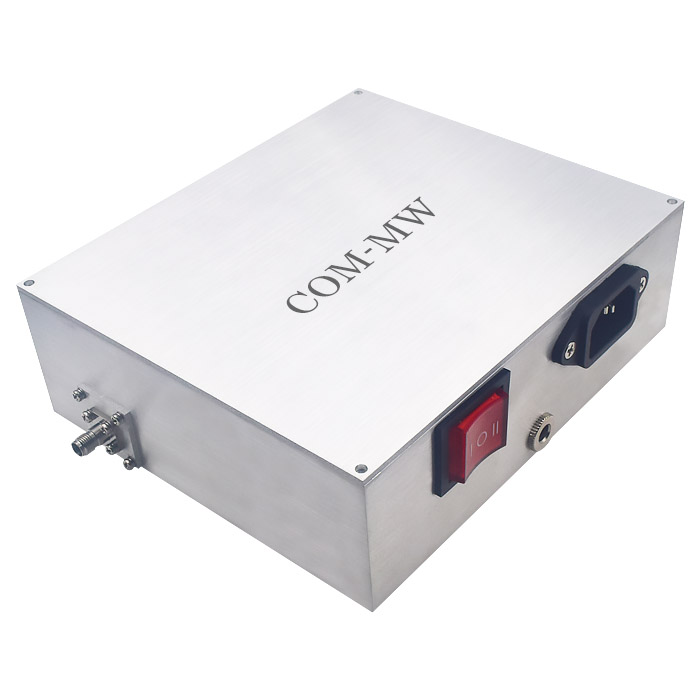

18~40GHz, Gain30dB, Noise figuredB, P-1dB10dBm, 2.92-K, Supports 220V power supply and battery power supply
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, multiple power supply modes.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 18 | ~ | 40 | GHz |
| Gain | 30 | dB | ||
| Gain flatness | 4 | dB | ||
| Noise figure | 4 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 10 | dBm |
| Connector | 2.92-K |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V or 220V |
| Working current | 300mA@12V |
| Operation Temp. | -30~+60℃ Design assurance |
| Other | Supports 220V power supply and battery power supply |
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
