Main specifications

Parameters	Min	Typical	Max	Units
Frequency	18	~	50	GHz
Gain	33			dB
Gain flatness			±3	dB
Noise figure			5	dB
VSWR			2.5
Spur reduction	60			dBc
P-1dB	14			dBm
PSAT	15			dBm

Other parameters

Connector	1.85-F Detachable
Connector material	Stainless steel
Impedance	50Ω
Surface	Gold-plating
Working voltage	+12V
Working current	300mA
Operation Temp.	-40~+70℃ Design assurance

Typical test data

Frequency	S11	S22	GAIN	P-1	PSAT	NF
GHz	VSWR	VSWR	dB	dBm	dBm	dB
18	1.84	1.74	38.10	16	17.1	3
20.29	1.56	1.10	38.02	16.8	17.5	2.9
22.57	1.37	1.31	38.04	16.8	17.4	3.18
24.86	1.38	1.60	38.02	16.6	17.4	3.42
27.14	1.51	1.65	38.05	16	17	3.47
29.43	1.81	1.17	37.92	15.9	17.3	3.96
31.71	1.92	1.48	38.20	16.2	17.2	4.24
34	1.31	1.74	38.13	16.6	17.6	4.37
36.29	1.91	1.23	37.96	16.8	17.8	4.16
38.57	1.91	1.08	37.79	16.3	17.4	4.17
40.86	1.35	1.57	35.75	16.6	17.9	4.16
43.14	1.32	1.39	35.76	16.4	17.7	4.05
45.43	1.32	1.75	33.97	17.4	18.5	4.33
47.71	1.40	1.69	33.75	17.6	18.5	4
50	1.21	1.44	35.50	16.7	17.4	4.88

Reference picture

Configuration(mm)

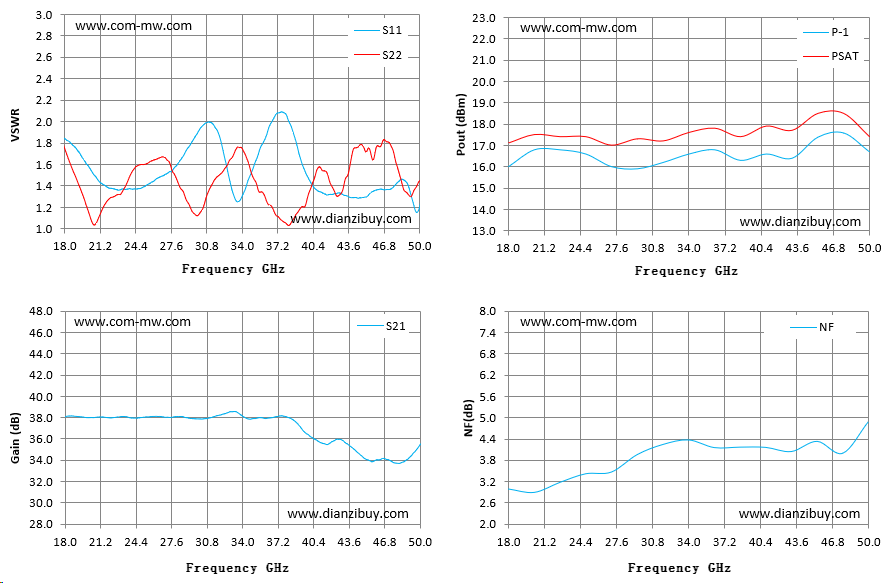

Typical test curve

Note

Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;

Consider amplifier heat dissipation during design;

Working or storage temperature less than 125 ℃;

Clean the surface of the product, do not soak the product in cleaning solution for cleaning.

LNA DLNA8-18-50G-9153
