Downloads

↓ Datasheet ↓ S-Parameters 97 KB

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	18000	~	40000	MHz
Gain	50			dB
Gain flatness			±3	dB
Noise figure			3.5	dB
VSWR			2.5
P-1dB	10			dBm

Other parameters

Connector	2.92-F
Connector material	Stainless steel
Impedance	50Ω
Working voltage	+12~15V
Working current	300mA
Operation Temp.	-40~+70℃ Design assurance
Other	Powered by a 220V power adapter with an interface of DC 5.5mm (outer diameter) * 2.1mm (inner aperture)

Typical test data

Frequency	S11	S22	GAIN	P-1	PSAT	NF
GHz	VSWR	VSWR	dB	dBm	dBm	dB
16	1.42	1.16	53.50	15.1	16.3	3.01
17.86	1.18	1.11	56.94	15.7	17.1	2.73
19.71	1.28	1.45	58.17	16.1	17.5	2.99
21.57	1.31	1.98	58.23	15.5	17.3	2.93
23.43	1.24	2.29	58.02	16	17.7	3.16
25.29	1.1	2.1	58.29	16.4	17.9	3.13
27.14	1.12	2.1	57.18	17	18.3	3.19
29	1.16	2.04	57.17	17.1	17.9	3.47
30.86	1.26	2.22	55.64	17.6	18.5	3.5
32.71	1.18	1.86	56.42	16.8	17.8	3.31
34.57	1.28	1.61	57.23	16.5	17.5	3.36
36.43	1.7	2.27	58.97	15.8	17.1	3.25
38.29	1.32	1.41	58.02	15.5	17.1	2.97
40.14	1.17	1.66	57.78	14.9	16.7	2.75
42	2.38	4.33	54.37	16.5	17.8	2.78

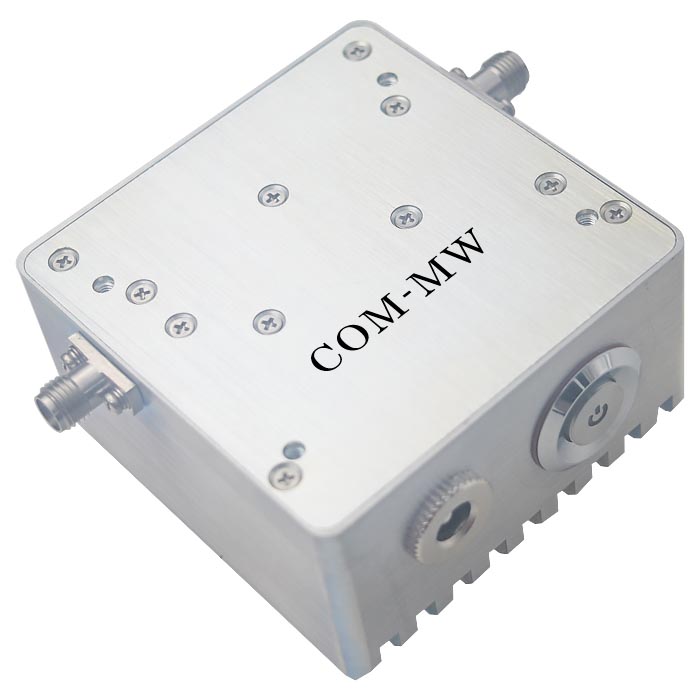

Reference picture

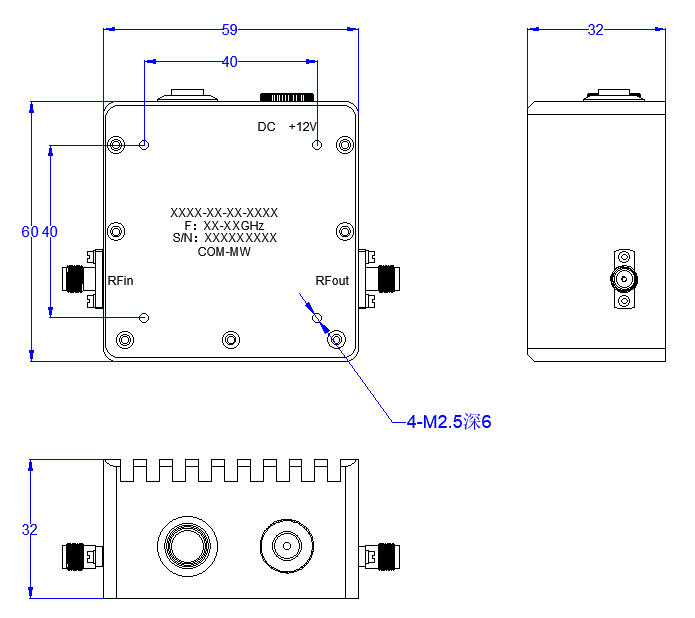

Configuration(mm)

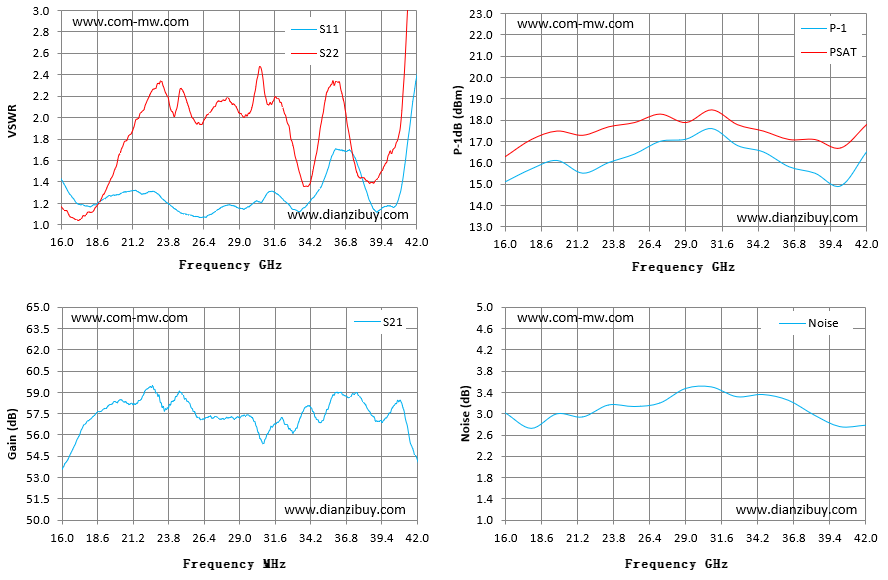

Typical test curve

Note

Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;

Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.

Working or storage temperature less than 125 ℃;

Clean the surface of the product, do not soak the product in cleaning solution for cleaning.

LNA DLNA8-18-40G-4063
