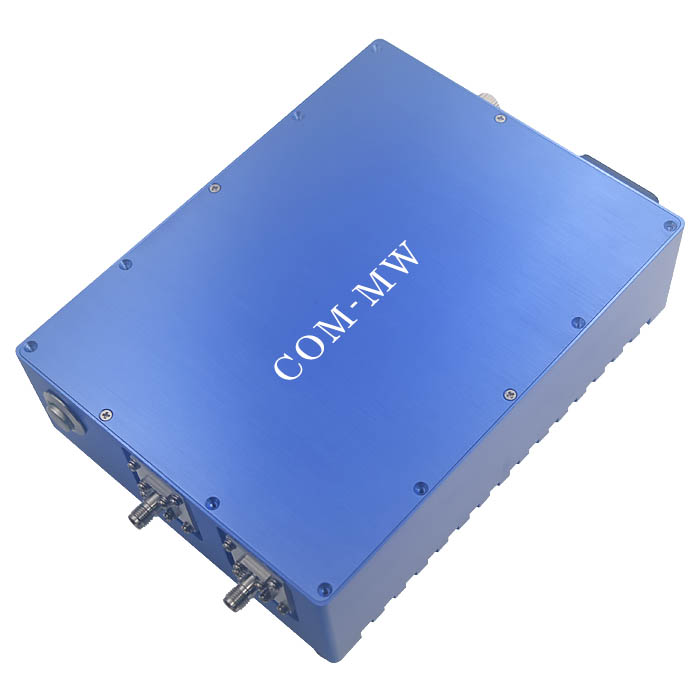

18~40GHz, Gain40dB, Noise figure4.5dB, P-1dB14dBm, 2.92-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, low noise.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 18 | ~ | 40 | GHz |
| Gain | 40 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| Noise figure | 4.5 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 14 | dBm |
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Operation Temp. | -20~+50℃ Design assurance |
| 1 | Power supply method 1 | 110-220V power input, standard AC interface. |
|---|---|---|
| 2 | Power supply method 2 | DC power supply, interface DC5.5mm (outer diameter) * 2.5mm (inner diameter) 110-220V power adapter power supply. |
| 3 | Operation Temp. | -20~+60℃ Design assurance |
| 4 | Surface color | Anodizing treatment (blue) |
| 5 | Shell Material | Shell aluminum material |
| 6 | DC output | The DC power supply voltage is determined by the input voltage of the internal module. |
| 7 | Instructions for using the power switch | Switch with power on indicator, AC and DC power supply can be selected, plug and play, and not both power sources can be used at the same time. |
| No. | Name | quantity |
|---|---|---|
| 1 | Amplifier | 1 |
| 2 | AC Adapter | 1 |
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
