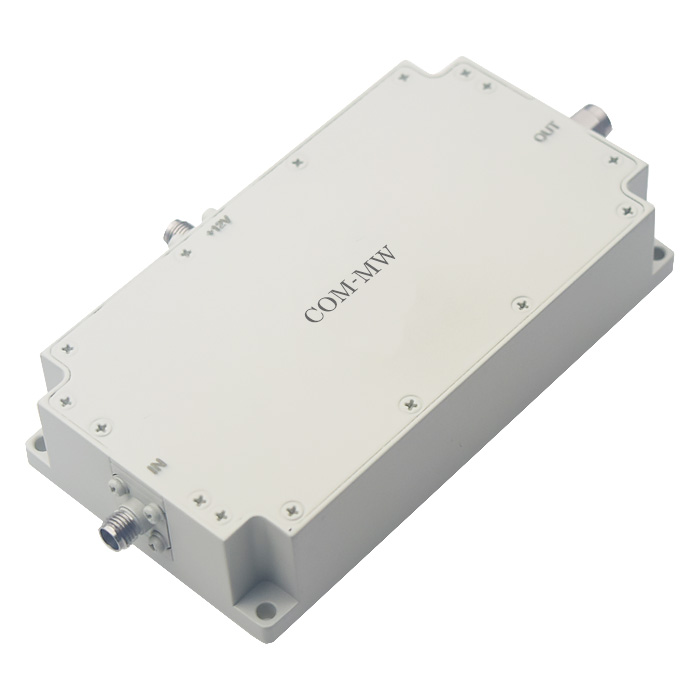

15~18GHz, Gain50dB, Noise figure3.5dB, P-1dB10dBm, 2.92, Input with filter
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Input with RF filter, SMA port power supply
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 15 | ~ | 18 | GHz |
| Gain | 50 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 3.5 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 10 | dBm |
| Connector | 2.92-JK |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Grey |
| Working voltage | +12-15V |
| Working current | 300mA |
| Operation Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| Filter specifications | Input with filter ≥40dB@13500MHz&19800MHz |
| Other | Power supply port SMA-K, RF input port N-50J, for outdoor use, waterproof. |
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken.
