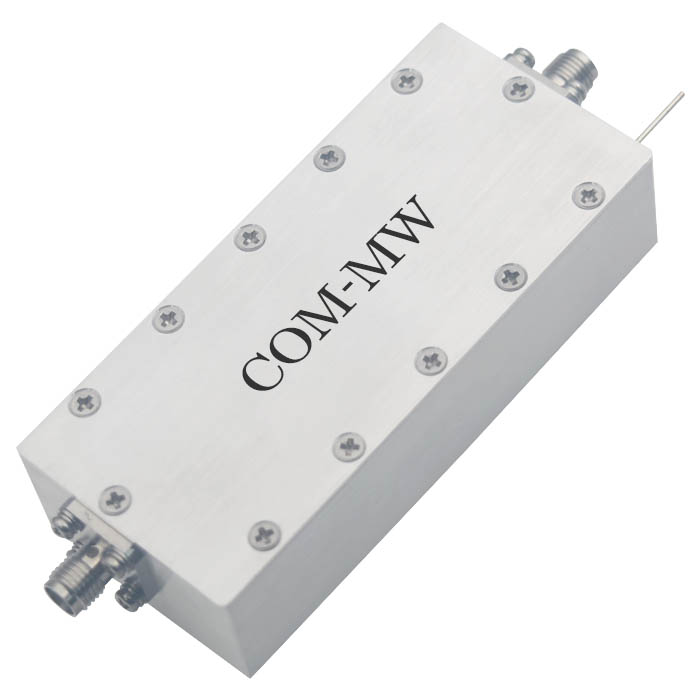

100~3200MHz, Gain26dB, Noise figure1.7dB, P-1dB15dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 100 | ~ | 3200 | MHz |
| Gain | 26 | 28 | dB | |
| Gain flatness | 3 | dB | ||
| Noise figure | 1.7 | 2.2 | dB | |
| VSWR | 2.2 | |||
| P-1dB | 15 | dBm | ||
| OIP3 | 25 | dBm | ||
| Reverse isolation | 49 | dB |
| Connector | SMA-K |
|---|---|
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 200mA |
| Operation Temp. | -20~+60℃ Design assurance |
| Storage Temp. | -20~+80℃ Design assurance |
| Quality Grade | Industrial grade |

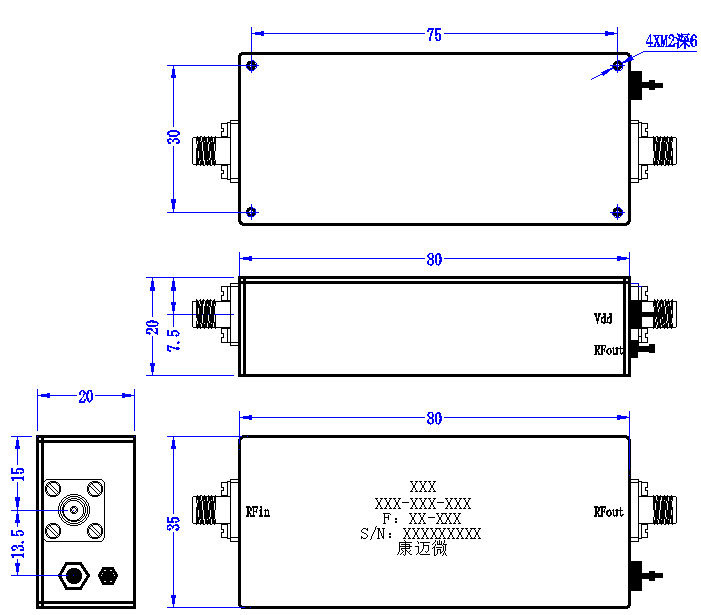

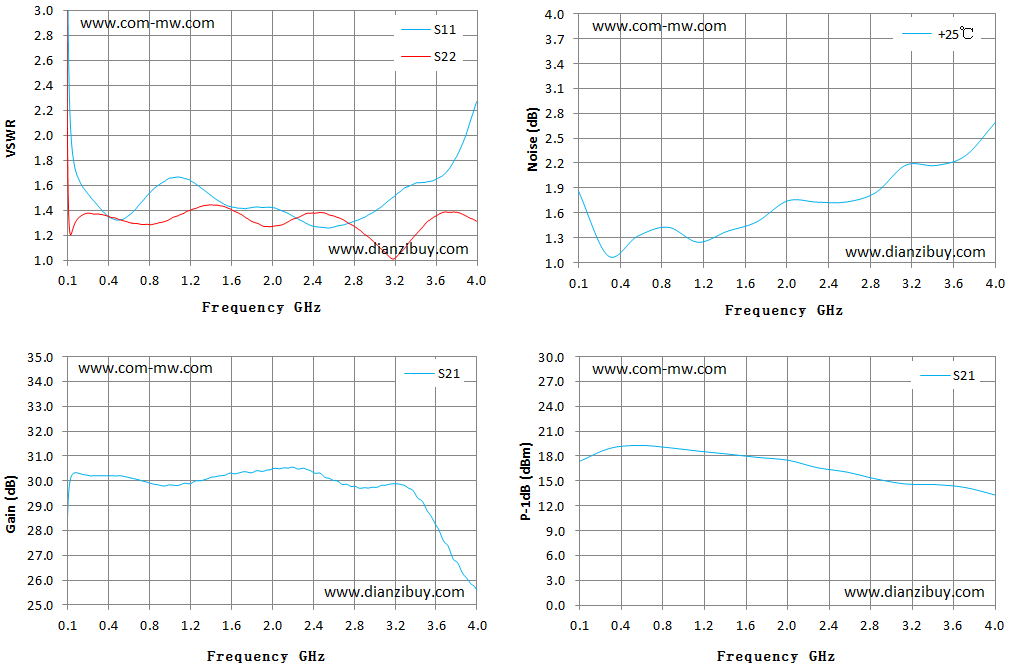

| Frequency | S11 VSWR | S22 VSWR | Gain | NF | P-1 out | Psat |
|---|---|---|---|---|---|---|
| GHz | / | / | dB | dB | dBm | dBm |
| 0.05 | 3.05 | 1.63 | 28.58 | 1.86 | 17.4 | 20.3 |
| 0.1 | 1.82 | 1.27 | 30.28 | 1.09 | 18.3 | 20.5 |
| 0.33 | 1.45 | 1.38 | 30.21 | 1.08 | 18.93 | 20.9 |
| 0.61 | 1.35 | 1.32 | 30.16 | 1.32 | 19.3 | 20.6 |
| 0.9 | 1.59 | 1.3 | 29.85 | 1.43 | 19.01 | 20.4 |
| 1.18 | 1.66 | 1.39 | 29.9 | 1.25 | 18.6 | 20.5 |
| 1.46 | 1.51 | 1.45 | 30.16 | 1.38 | 18.24 | 20.6 |
| 1.74 | 1.42 | 1.36 | 30.36 | 1.49 | 17.84 | 20.1 |
| 2.03 | 1.43 | 1.28 | 30.49 | 1.75 | 17.5 | 20.5 |
| 2.31 | 1.32 | 1.36 | 30.5 | 1.73 | 16.6 | 19.5 |
| 2.59 | 1.27 | 1.36 | 30.07 | 1.73 | 16.07 | 19 |
| 2.87 | 1.33 | 1.25 | 29.7 | 1.85 | 15.23 | 18.2 |
| 3.15 | 1.48 | 1.04 | 29.86 | 2.18 | 14.64 | 17.9 |
| 3.44 | 1.62 | 1.24 | 29.28 | 2.17 | 14.56 | 17.7 |
| 3.72 | 1.72 | 1.39 | 27.39 | 2.29 | 14.2 | 17.4 |
| 4 | 2.28 | 1.32 | 25.61 | 2.69 | 13.3 | 16.6 |
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
