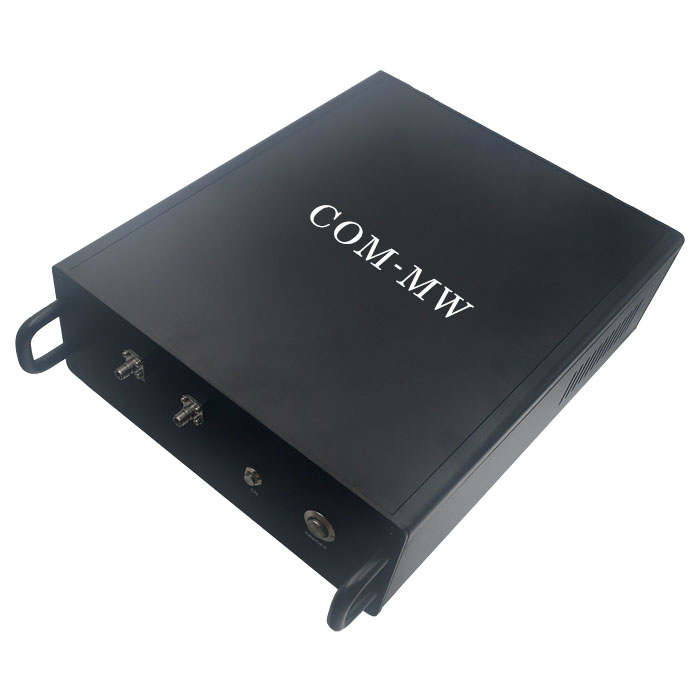

Frequency100~2000MHz, Gain40, PO（SAT）40dBm, Adapter power supply
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 100 | ~ | 2000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±3 | dB | ||
| Input VSWR | 2.5 | |||
| PO（SAT） | 40 | dBm | ||
| Max input power | 10 | dBm |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Black baking paint |
| Operation Temp. | -20~+40℃ Design assurance |
| Characteristic | Adapter power supply |
| Port identification | definition | Illustrate |
|---|---|---|
| DC | DC power input | 根据内配模块选择对应适配器，插孔5.5*2.1，兼容5.5*2.5 |
| GND | GND | |
| ON/OFF | Power switch | 开通后灯亮，内部模块上电 |
| EN | Enable control switch | 开通后灯亮，内部模块使能控制开通，带灯，开通后灯亮 |
| 1 | Standard configuration | Equipped with a power adapter |
|---|
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | 请严格按照上电顺序加电，关电时反向操作。 |
