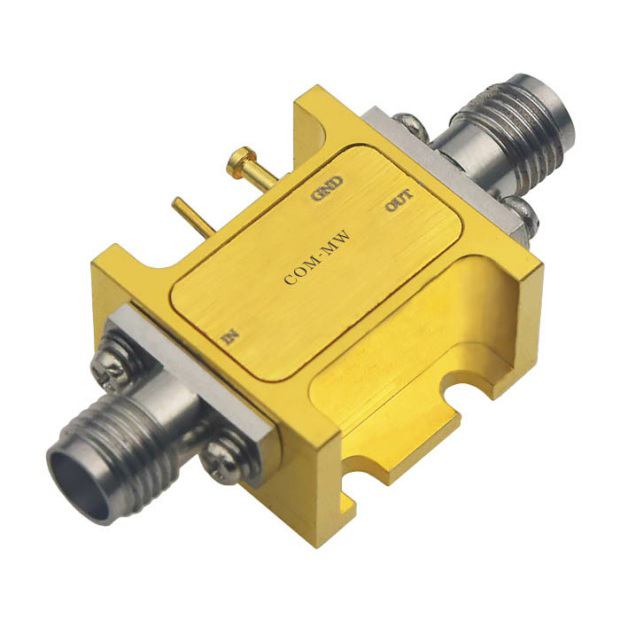

50~3500MHz, Gain28dB, Noise figure0.8dB, P-1dB15dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 50 | ~ | 3500 | MHz |
| Gain | 28 | dB | ||
| Noise figure | 0.8 | 1.3 | dB | |
| Input VSWR | 2.0 | |||
| Output VSWR | 1.5 | |||
| P-1dB | 15 | dBm | ||
| Max input power | 20 | dBm |
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 100mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |

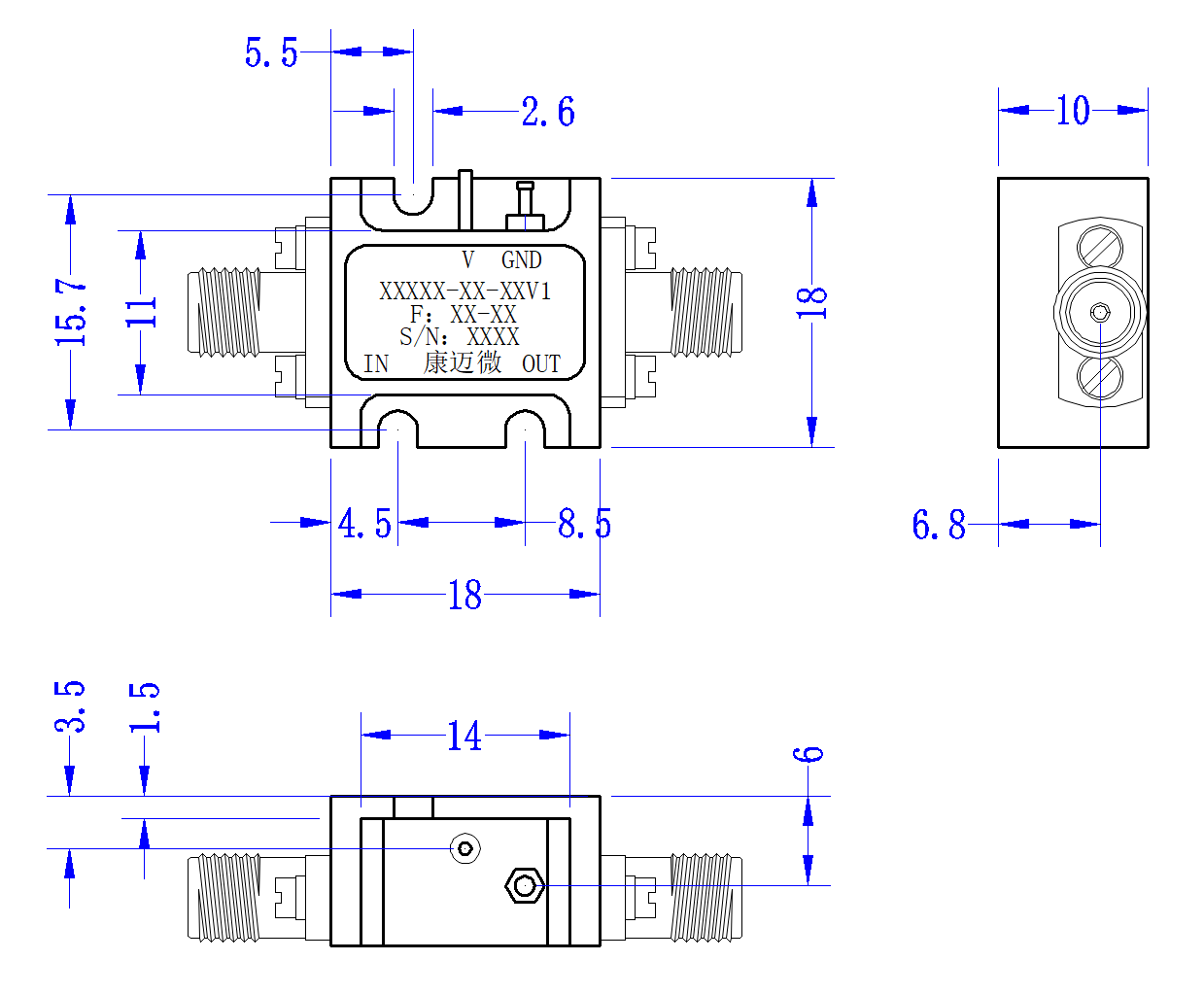

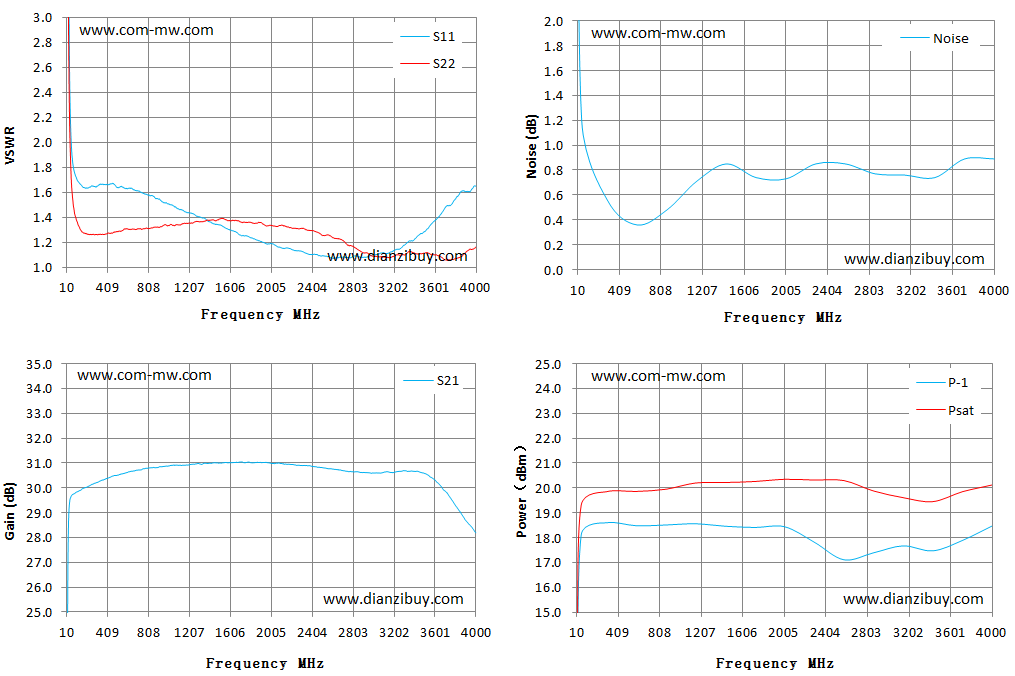

| Frequency MHz | S11 VSWR | S22 VSWR | Gain dB | NF dB | P-1 dBm | Psat dBm |
|---|---|---|---|---|---|---|
| 10 | 10.5 | 4 | 16.6 | 5.1 | 8.7 | 12.5 |
| 50 | 2 | 1.7 | 29.6 | 1.2 | 18.1 | 19.3 |
| 295 | 1.7 | 1.3 | 30.2 | 0.6 | 18.6 | 19.9 |
| 580 | 1.6 | 1.3 | 30.6 | 0.4 | 18.5 | 19.9 |
| 865 | 1.6 | 1.3 | 30.8 | 0.5 | 18.5 | 20 |
| 1150 | 1.5 | 1.4 | 30.9 | 0.7 | 18.6 | 20.2 |
| 1435 | 1.4 | 1.4 | 31 | 0.9 | 18.5 | 20.2 |
| 1720 | 1.3 | 1.4 | 31 | 0.7 | 18.4 | 20.3 |
| 2005 | 1.2 | 1.3 | 31 | 0.7 | 18.4 | 20.4 |
| 2290 | 1.1 | 1.3 | 30.9 | 0.9 | 17.8 | 20.3 |
| 2575 | 1.1 | 1.3 | 30.8 | 0.9 | 17.1 | 20.3 |
| 2860 | 1.1 | 1.1 | 30.6 | 0.8 | 17.4 | 19.9 |
| 3145 | 1.1 | 1.1 | 30.7 | 0.8 | 17.7 | 19.6 |
| 3430 | 1.3 | 1.1 | 30.7 | 0.7 | 17.5 | 19.5 |
| 3715 | 1.5 | 1.1 | 29.8 | 0.9 | 17.9 | 19.9 |
| 4000 | 1.7 | 1.2 | 28.2 | 0.9 | 18.5 | 20.1 |
, When designing, consider the issue of amplifier heat dissipation.
