Main specifications

Parameters	Min	Typical	Max	Units	Units
Frequency	1	~	2500	MHz
Gain	42	45		dB
Gain flatness		±5		dB
Noise figure		4		dB	30~2500MHz
VSWR		2.8
P-1dB		20		dBm
Psat		21		dBm
Max input power		10		dBm

Other parameters

Connector	SMA-F or K
Impedance	50Ω
Surface	Conductive oxidation
Working voltage	+12V
Working current	550mA
Operation Temp.	-30~+60℃ Design assurance

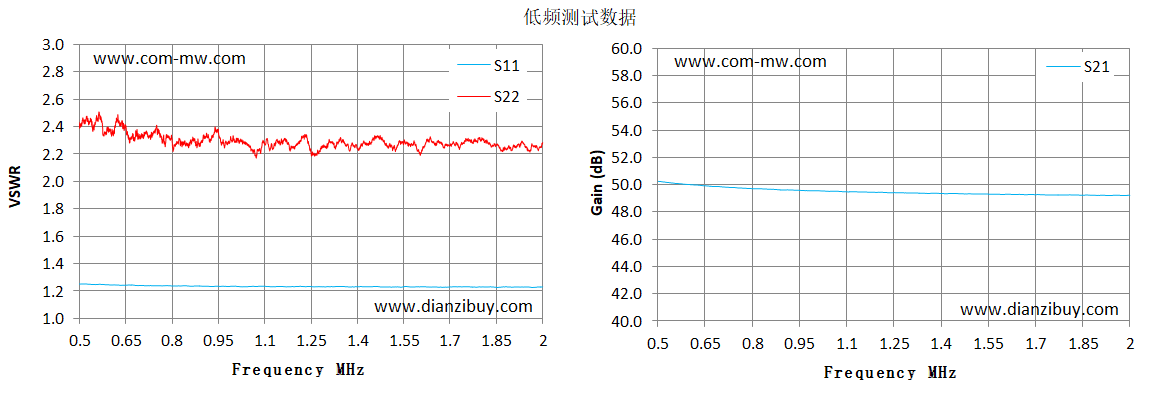

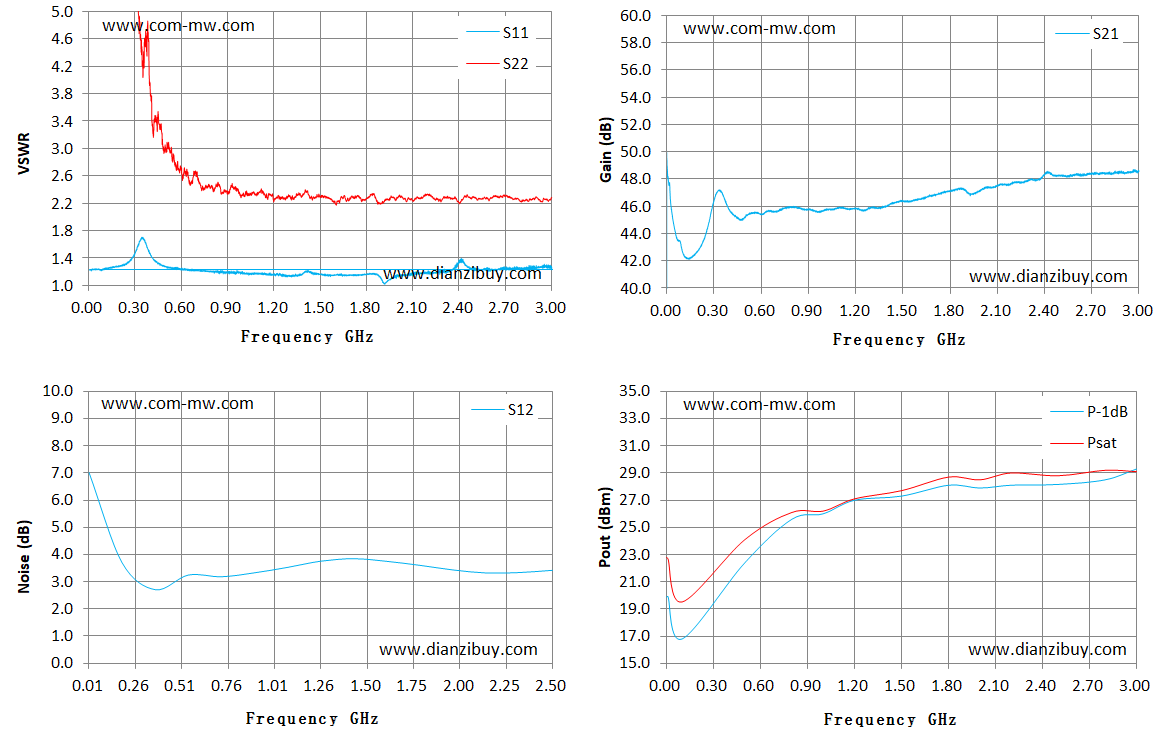

Typical test curve

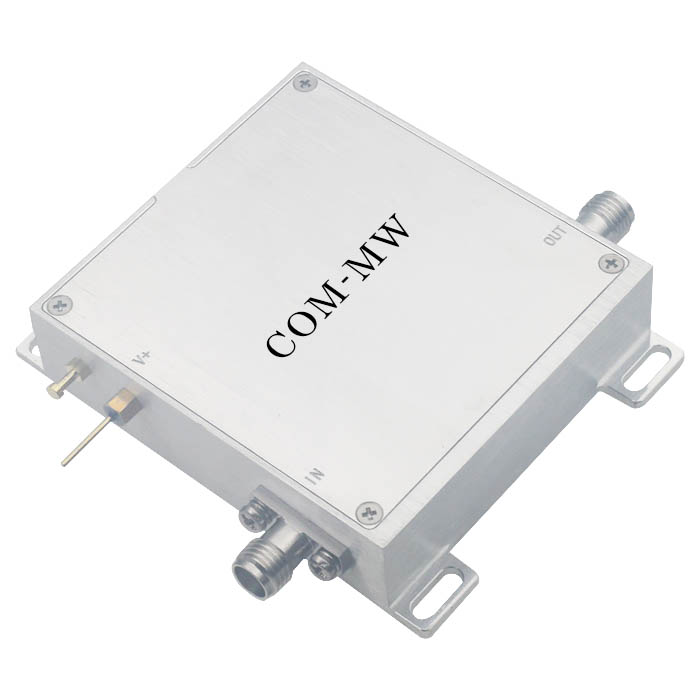

Reference picture

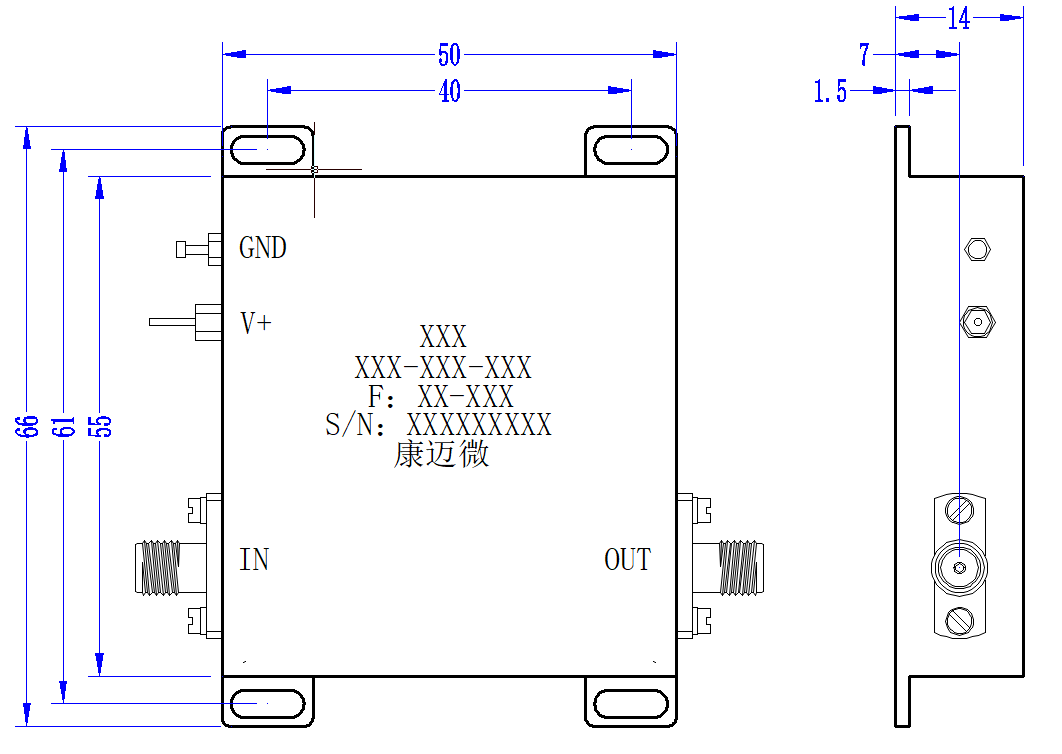

Configuration(mm)

Typical test data

Frequency	VSWR S11	VSWR S22	S21 增益	P-1dB Output	Psat 输出功率
MHz	/	/	dB	dBm	dBm
1.00	1.25	2.30	49.56	19.88	22.79
10.00	1.22	2.15	48.05	19.92	22.70
100.00	1.24	1.99	42.70	16.80	19.52
500.00	1.27	1.97	45.22	22.40	24.10
800.00	1.19	1.98	45.95	25.60	26.10
1000.00	1.17	2.05	45.71	26.00	26.20
1200.00	1.14	2.09	45.87	27.00	27.10
1500.00	1.16	1.93	46.39	27.30	27.70
1800.00	1.16	1.88	47.12	28.10	28.70
2000.00	1.13	1.82	47.25	27.90	28.50
2200.00	1.20	1.81	47.70	28.10	29.00
2500.00	1.23	1.71	48.23	28.16	28.80
2800.00	1.24	1.64	48.45	28.50	29.20
3000.00	1.24	1.71	48.60	29.30	29.10

Note

Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;

Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.

Working or storage temperature less than 125 ℃;

Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
