Downloads

↓ Datasheet

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	1	~	3	GHz
Gain	30			dB(正斜率)

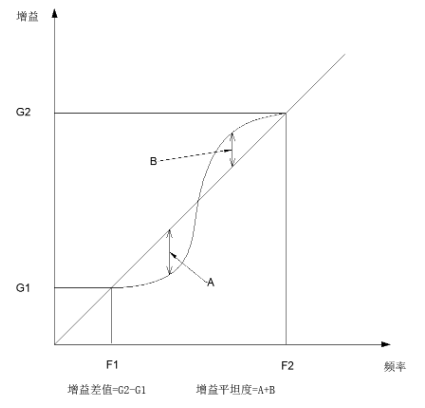

Gain difference	2.5			dB
Gain flatness			2	dB
Noise figure			2.5	dB
VSWR			2.2
P-1dB	18			dBm
Psat	19			dBm
Max input power			10	dBm
Spur reduction	55			dBc
Harmonic Rejection		25		dBc
OIP3		30		dBm
反相隔离		60		dBc

Other parameters

Connector	SMA-F
Connector material	Stainless steel
Impedance	50Ω
Surface	Conductive oxidation
Working voltage	+12V
Working current	400mA
Operation Temp.	-30~+60℃ Design assurance
Quality Grade	Industrial grade

Typical test data

Frequency	S11	S22	Gain	P-1	Psat	Nosie
GHz	VSWR	VSWR	dB	dBm	dBm	dB
0.1	3.2	1.66	24.07	7.81	13.01	11.6
0.38	1.8	1.42	34.36	20.1	20.6	0.99
0.66	1.67	1.36	34.76	20.52	21.44	0.91
0.94	1.75	1.35	34.58	20.2	21.8	1.14
1.21	1.83	1.35	34.72	19.73	22.35	1.11
1.49	1.91	1.37	35.03	19.73	22.91	0.81
1.77	1.97	1.37	35.5	19.55	23.39	0.89
2.03	1.97	1.37	36.04	19.33	23.97	1.2
2.33	1.93	1.36	36.59	18.92	23.67	1.18
2.61	1.87	1.35	37.17	18.98	23.57	0.93
2.89	1.72	1.35	37.67	19.08	23.66	0.87
3.16	1.52	1.34	37.97	19.08	24.38	1.08
3.44	1.29	1.34	38.02	19.31	24.95	1.09
3.72	1.15	1.34	37.59	19.83	25.18	1.22
4	1.43	1.34	36.9	21.21	25.21	1.3

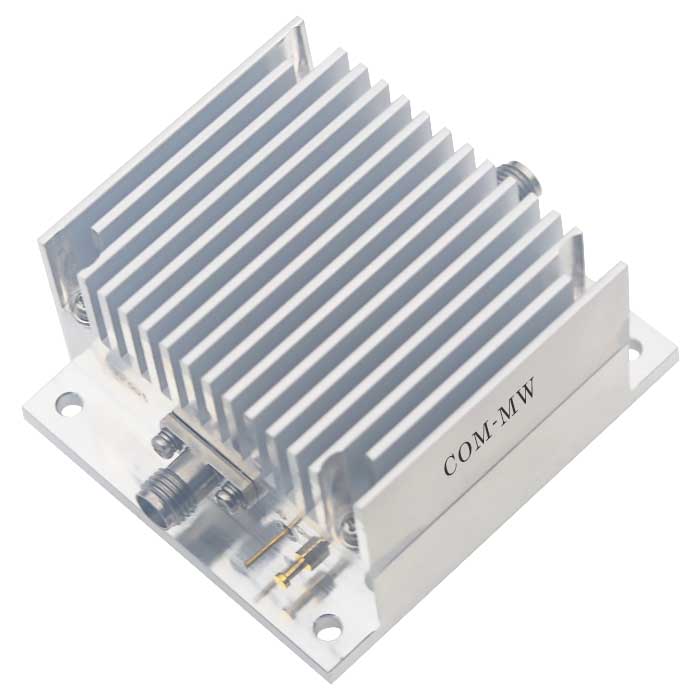

Reference picture

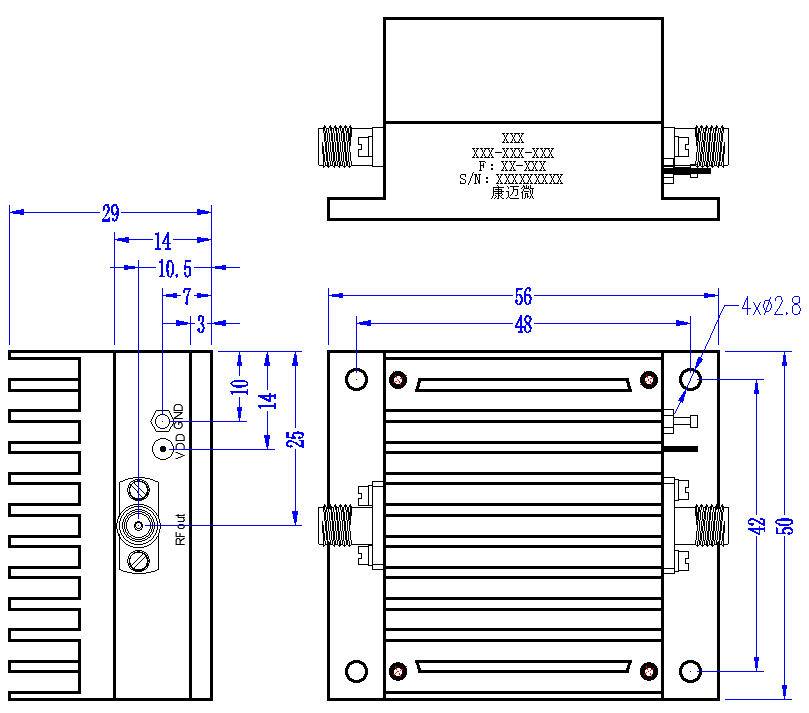

Configuration

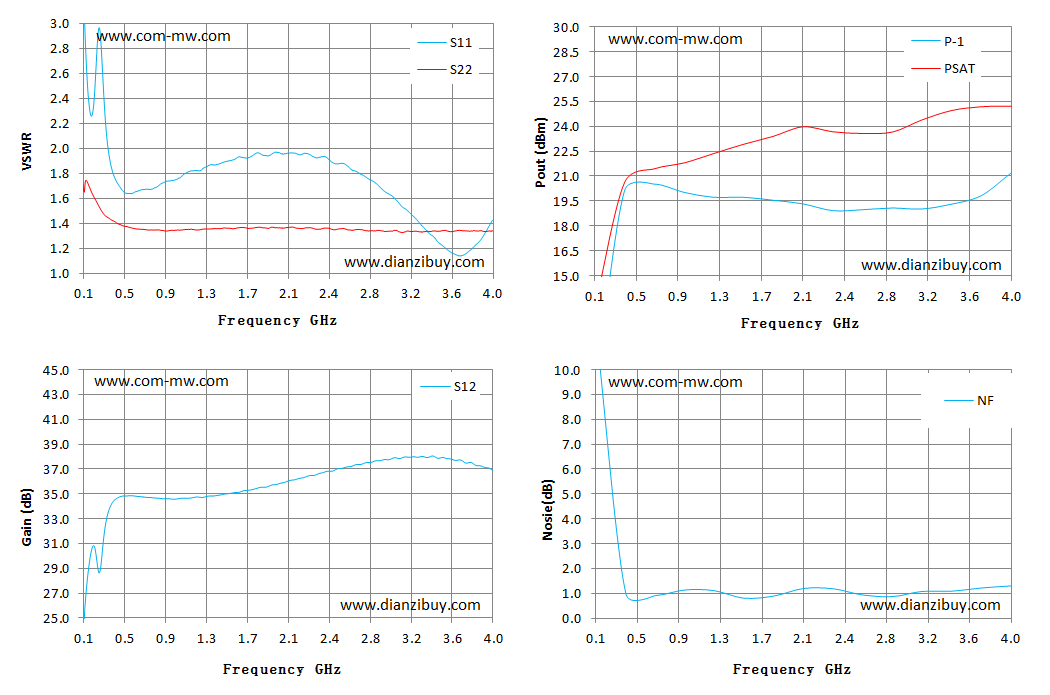

Typical test curve

Note

Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;

Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;

Working or storage temperature less than 125 ℃;

Clean the surface of the product, do not soak the product in cleaning solution for cleaning.

LNA DLNA8-1-3G-3877
