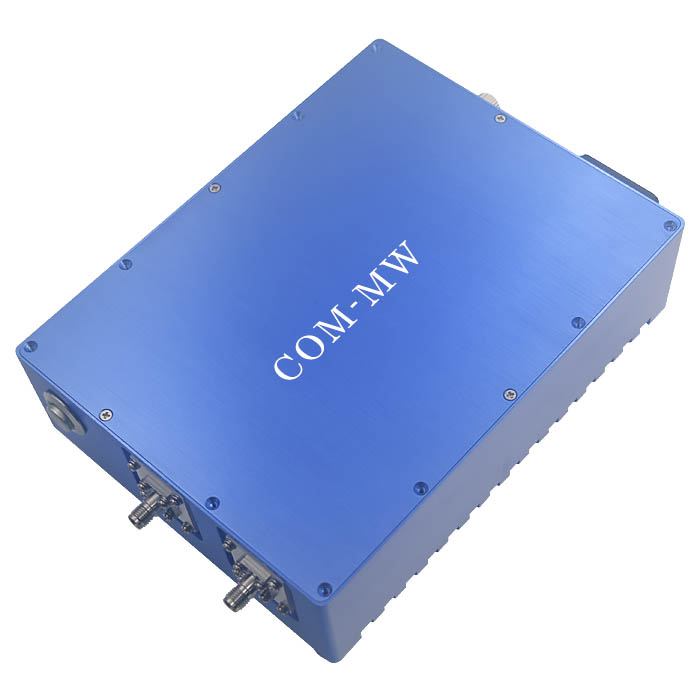

Frequency1~18GHz, Gain39dB, Noise figure4dB, P-1dB15dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1 | ~ | 18 | GHz |
| Gain | 39 | dB | ||
| Gain flatness | 3 | 5 | dB | |
| Noise figure | 4 | 5 | dB | |
| VSWR | 2 | 2.5 | ||
| P-1dB | 15 | dBm | ||
| Max input power | 5（CW） | W |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Color conductive oxidation |
| Operation Temp. | -20~+60℃ Design assurance |
| 1 | Power supply method 1 | 110-220V power input, standard AC interface, 12-15V/5W output. |
|---|---|---|
| 2 | Power supply method 2 | DC power supply, powered by a 220V power adapter with interface DC5.5mm (outer diameter) * 2.5mm (inner diameter). |
| 3 | Surface color | Anodizing treatment (blue) |
| 4 | Shell Material | Shell aluminum material |
| 5 | Instructions for using the power switch | 220V and DC power supply cannot be used simultaneously. |
| 1 | Standard configuration | AC power cord |
|---|---|---|
| 2 | Optional | Equipped with a power adapter |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
