Product features

Broadband, low noise, input limiting protection

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	1000	~	18000	MHz
Gain	50			dB
Gain flatness			5	dB
Noise figure		2.6	3	dB
VSWR			2.2
P-1dB		15		dBm
Max input power			5	W

Other parameters

Connector	SMA-K detachable, Pin 0.38mm
Connector material	Stainless steel
Impedance	50Ω
Surface	Gold-plating
Working voltage	+12V
Working current	300mA
Operation Temp.	-40~+70℃ Design assurance
Other	Limiting amplifier

Typical test data

Frequency(GHz)	S11 VSWR	S22 VSWR	S21 gain	S21 Noise	S21 P-1dB
0.5	1.17	2.32	56.09	1.8	15.3
1.82	1.67	1.38	56.48	2	17.1
3.14	1.81	1.68	55.47	2.08	17.5
4.46	2.03	1.58	53.92	2.23	18.1
5.79	1.7	1.28	54.1	2.23	17.6
7.11	1.12	1.5	54.51	2.31	17.4
8.43	1.09	1.59	53.8	2.31	18.5
9.75	1.42	1.23	53.91	2.44	18.5
11.07	1.52	1.51	53.73	2.51	18.6
12.39	1.52	1.36	54.2	2.58	18.8
13.71	1.11	1.59	54.42	2.46	17.9
15.04	1.37	1.3	53.12	2.53	18
16.36	1.6	1.26	53.68	2.61	17.9
17.68	1.37	1.47	53.89	2.82	17.2
19	2.19	1.82	53.16	2.92	17.3

Reference picture

Configuration(mm)

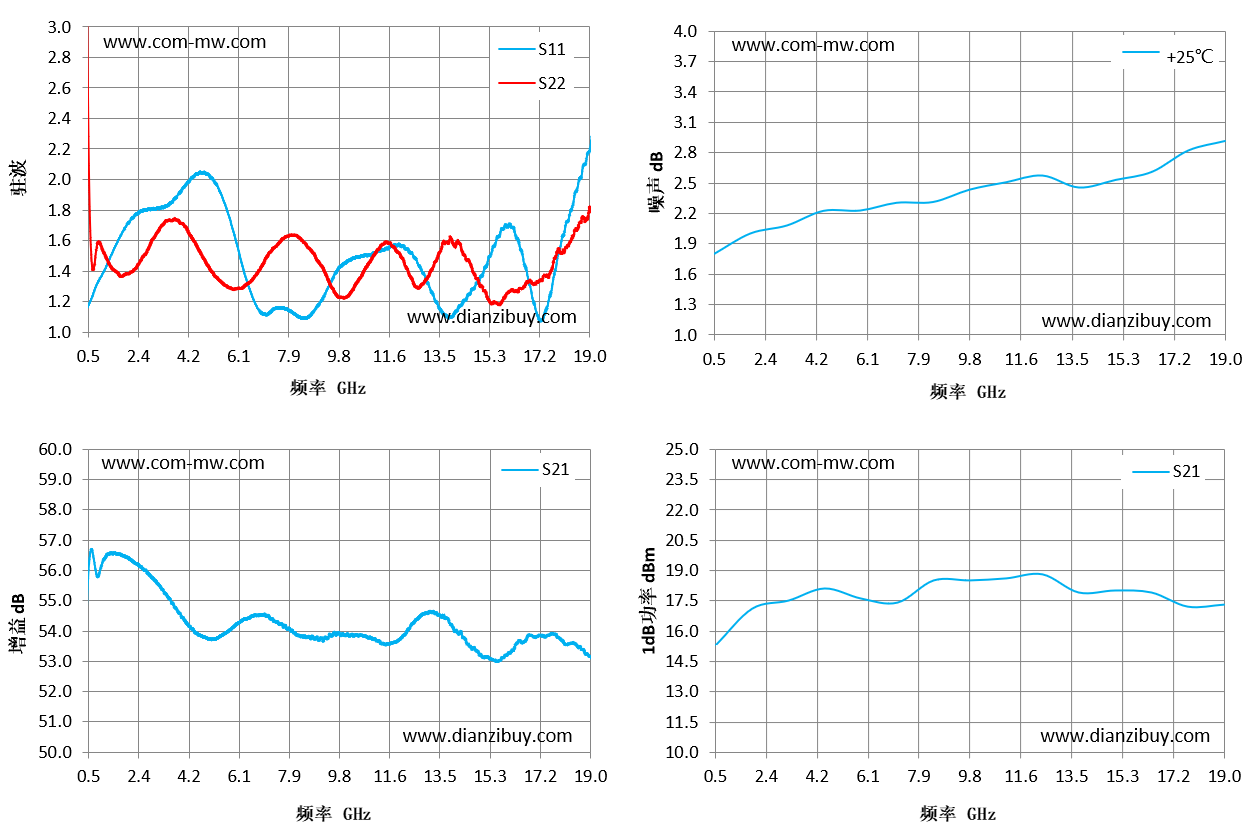

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.

If the overall temperature is greater than 125 ℃, please consult with us before placing an order. Clean the surface of the product, do not soak the product in a cleaning solution.

LNA DLNA8-1-18G-2705
