Model: DLNA8-1-18G-2079
Stock: In stock: 3 View price or buy it
Address: BLD# 4-3A, No. 118 Hangtian Road, Chenghua District, Chengdu, Sichuan, China.

To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

Specifications

Brand: COM-MW
RoHS: No
Net Weight: 50 g
Warranty: 1-year warranty

Downloads

↓ Datasheet 314 KB ↓ S-Parameters 207 KB ↓ 3D Model 1.1 MB

Product features

Broadband, low noise

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	1000	~	18000	MHz
Gain	26			dB
Gain flatness			±2.5	dB
Noise figure		2.5		dB
VSWR			2.5
P-1dB	10			dBm

Other parameters

Connector	SMA-K detachable, Pin 0.38mm
Connector material	Stainless steel
Impedance	50Ω
Surface	Gold-plating
Working voltage	+12V
Working current	200mA
Operation Temp.	-40~+70℃ Design assurance

Typical test data

Frequency(GHz)	S11 VSWR	S22 VSWR	S21 gain	S21 Noise	S21 P-1dB
1	1.28	1.42	33.08	1.57	16.5
2.29	1.67	1.85	32.14	1.67	16.6
3.57	1.64	1.2	31.49	1.72	14.8
4.86	1.43	1.1	31.45	2.03	14.7
6.14	2.04	1.35	31.1	1.89	15.6
7.43	2.16	1.61	30.9	1.99	15.1
8.71	1.53	1.26	31.49	2.16	15.4
10	2.04	1.84	31.31	2.09	15.5
11.29	1.76	1.93	31.21	2.1	15.4
12.57	1.19	1.41	31.87	2.28	14.9
13.86	1.28	1.48	32.62	2.3	15.1
15.14	1.89	1.45	32.47	2.35	14.7
16.43	1.91	1.39	31.8	2.42	14.6
17.71	1.5	1.49	32.54	2.49	15.4
19	2.64	1.44	32.76	2.68	14.3

Reference picture

Configuration(mm)

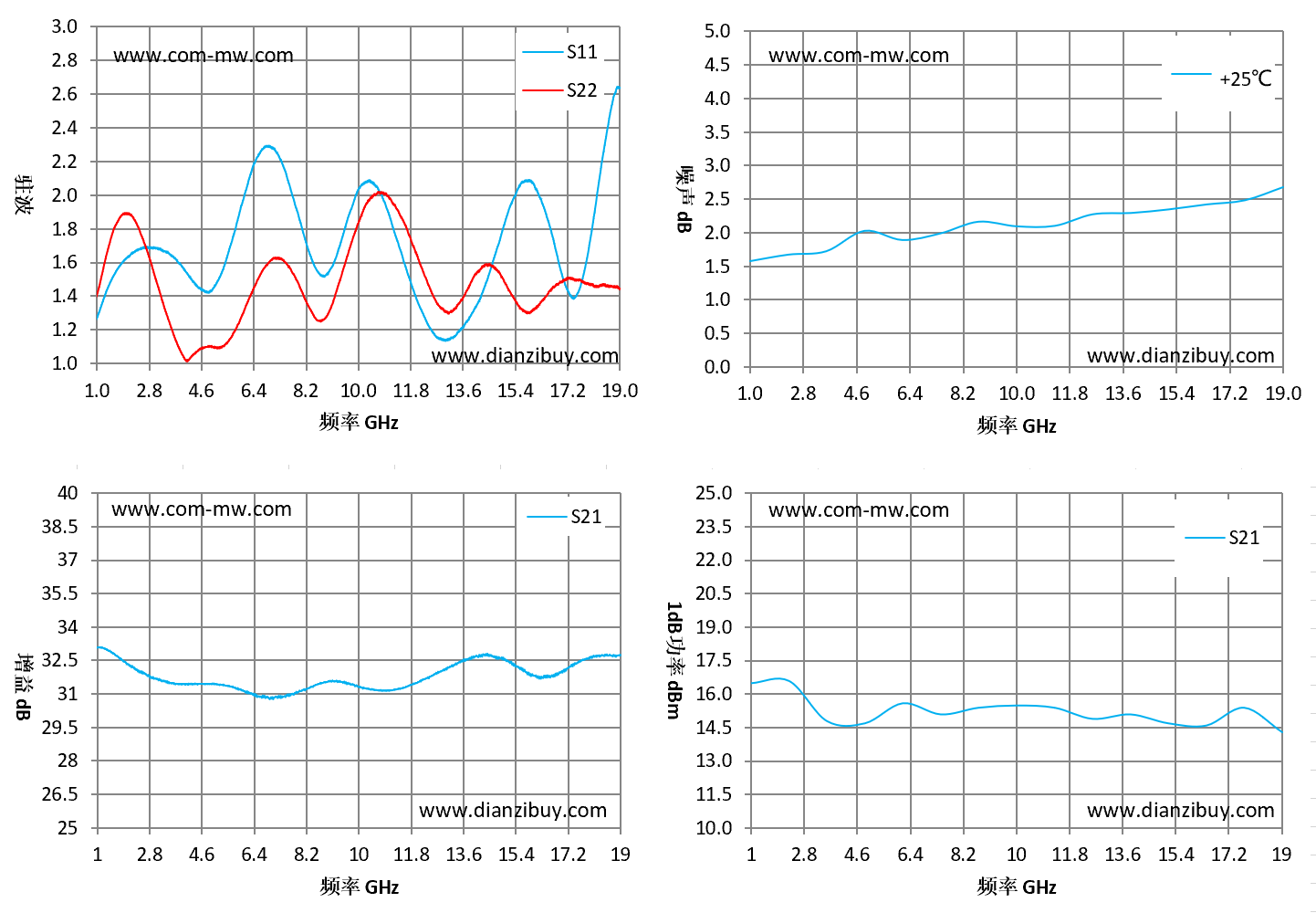

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
