↓ Datasheet 302 KB

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	1	~	1000	MHz
Gain	25			dB
Gain flatness		±1	±1.5	dB
Noise figure		2.5		dB
VSWR			2.2
P-1dB		25		dBm
OIP3		36		dBm

Other parameters

Connector	SMA-F
Connector material	Stainless steel
Impedance	50Ω
Working voltage	+12V
Working current	350mA
Operation Temp.	-40~+70℃ Design assurance

Typical test data

Frequency	S11	S22	GAIN	P-1	PSAT	Noise
MHz	VSWR	VSWR	dB	dBm	dBm	dB
1	1.22	1.92	30.96	23.7	24.2	\
5	1.27	1.36	31.89	24.63	25.2	\
10	1.3	1.35	31.79	25	25.5	1.86
50	1.6	1.53	31.48	26.09	26.23	1.41
100	1.67	1.55	31.48	26.19	26.42	1.26
200	1.75	1.57	31.44	26.38	26.56	1.3
300	1.82	1.56	31.32	26.4	26.7	1.41
400	1.87	1.56	31.35	26.39	26.72	1.53
500	1.9	1.52	31.31	26.46	26.66	1.73
600	1.94	1.5	31.41	26.48	26.78	1.8
700	1.94	1.46	31.38	26.26	26.68	1.78
800	1.93	1.41	31.41	26.09	26.7	1.7
900	1.96	1.38	31.43	25.8	26.8	1.64
1000	1.97	1.33	31.2	25.75	26.52	1.57
1100	2.05	1.38	31.01	26.23	26.77	1.64

Reference picture

Configuration(mm)

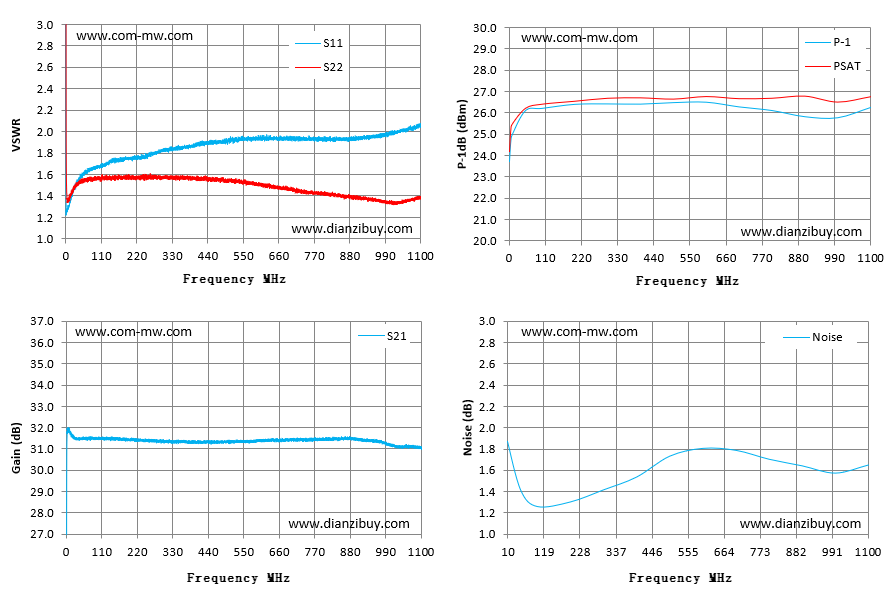

Typical test curve

Note

Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;

Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.

Working or storage temperature less than 125 ℃;

Clean the surface of the product, do not soak the product in cleaning solution for cleaning.

LNA DLNA8-1-1000-3839
