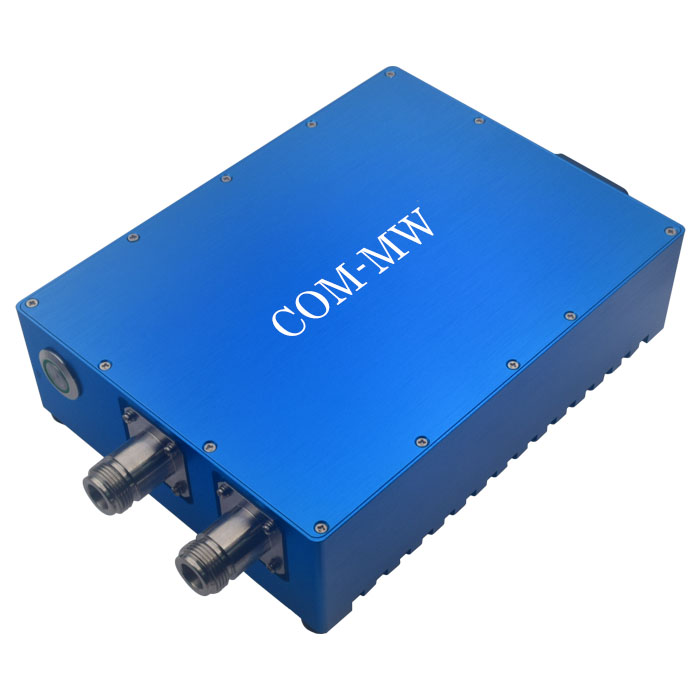

0.5~18GHz, Gain40dB, Noise figure3dB, P-1dB10dBm, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.5 | ~ | 18 | GHz |
| Gain | 40 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| Noise figure | 3 | dB | ||
| VSWR | 1.8 | 2.5 | ||
| P-1dB | 10 | dBm | ||
| Max input power | 0 | dBm |
| Connector | N -K |
| Impedance | 50Ω |
| Surface | Anodizing treatment (blue) |
| Operation Temp. | -10~+50℃ Design assurance |
| Other | 支持220V交流供电和直流供电 |
| 1 | Power supply method 1 | Input 220v AC |
|---|---|---|
| 2 | Power supply method 2 | DC power supply, powered by a 220V power adapter with interface DC5.5mm (outer diameter) * 2.5mm (inner diameter). |
| 3 | Instructions for using the power switch | 220V and DC power supply cannot be used simultaneously. |
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
