Downloads

↓ Datasheet

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	0.1	~	40	GHz
Gain		36		dB
Gain flatness		±3		dB
Noise figure		5		dB
VSWR		2	2.5
P-1dB		20		dBm
Spur reduction	55			dBc

Other parameters

Connector	2.92-F
Connector material	Stainless steel
Impedance	50Ω
Surface	Conductive oxidation
Working voltage	+12V
Working current	500mA
Operation Temp.	-40~+70℃ Design assurance
Quality Grade	Industrial grade

Typical test data

Frequency	S11	S22	Gain	P-1	Psat	Noise
GHz	VSWR	VSWR	dB	dBm	dBm	dB
0.01	2.39	4.3	39.99	9.84	12.15	10.66
0.05	2.62	3.67	40.04	17.27	20.05	6.12
0.1	1.25	1..13	40.35	18.02	20.79	4.85
0.5	1.25	1.13	40.35	19.2	21.83	3.71
1	1.13	1.19	41.12	20.23	22.37	4.12
4	1.73	1.21	38.6	21.28	23.13	3.71
8	1.22	1.92	37.94	21.67	23.29	2.72
12	1.63	1.33	37.78	21.13	22.89	2.4
16	1.45	2	37.08	19.17	21	3.03
20	1.61	1.06	38.09	22.01	23.15	3.4
24	1.91	1.79	37.59	22.46	23.53	3.81
28	1.2	1.19	39.08	22.9	23.65	4.06
32	1.31	1.41	38.99	21.27	22.69	4.33
36	1.27	1.9	40.27	19.45	21.24	4.9
40	1.71	1.66	35.23	17.12	20.19	5.32
42	2.16	1.33	33.95	14.92	17.3	6.67

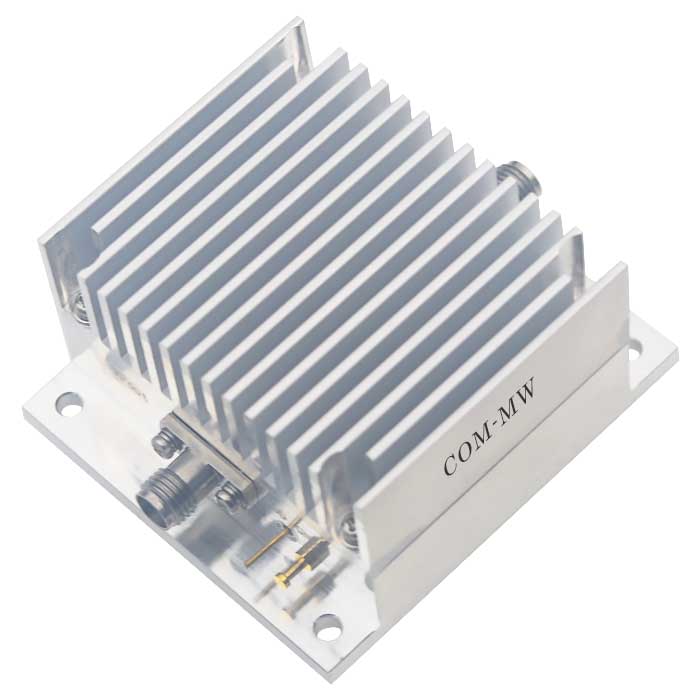

Reference picture

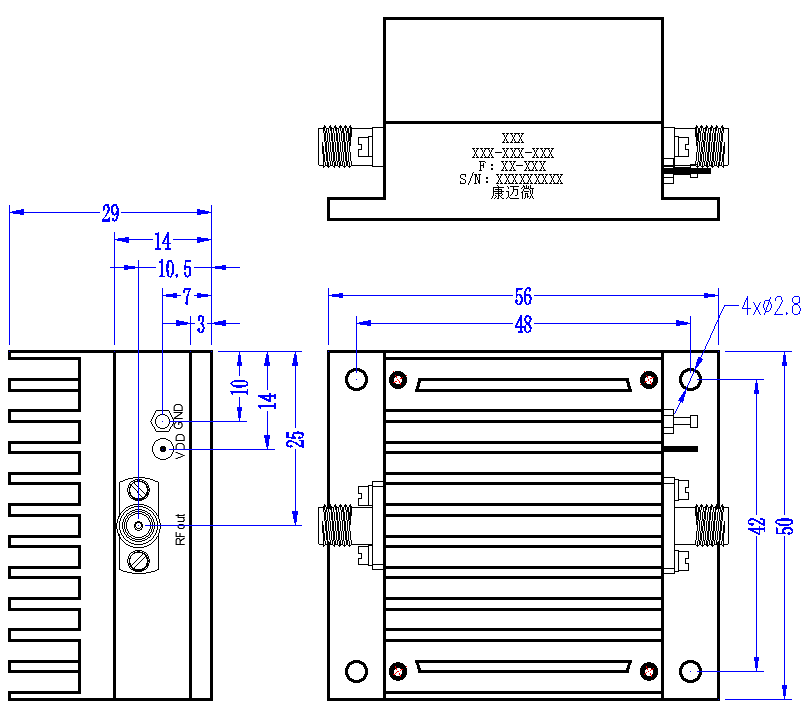

Configuration

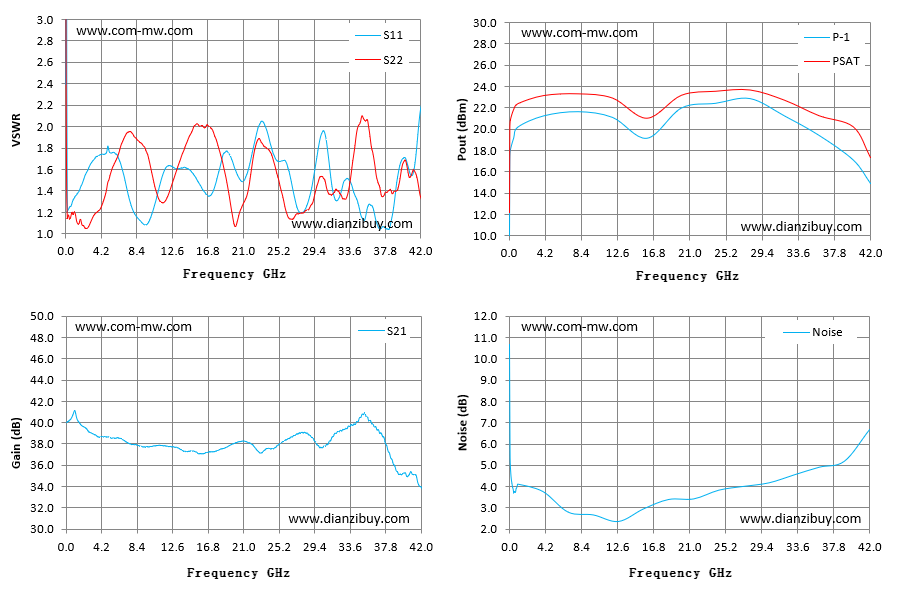

Typical test curve

Note

Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;

Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;

Working or storage temperature less than 125 ℃;

Clean the surface of the product, do not soak the product in cleaning solution for cleaning.

LNA DLNA8-0.1-40G-3837
