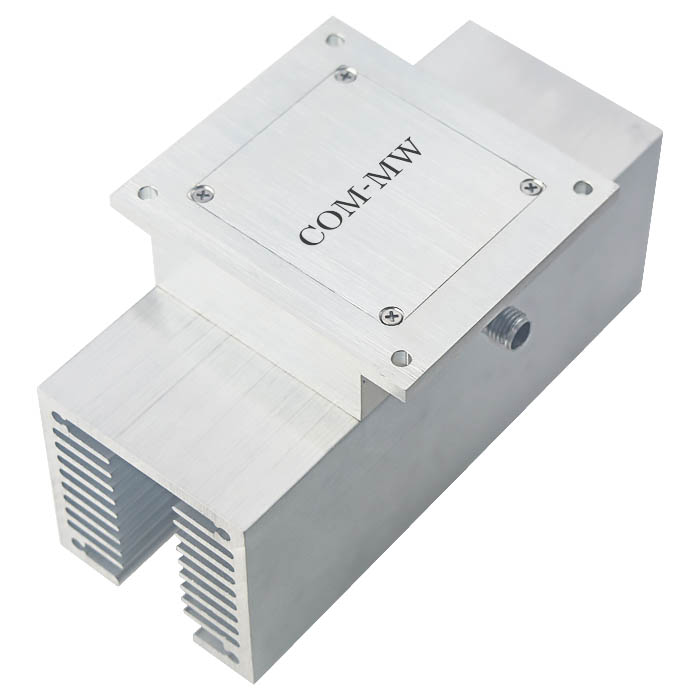

0.8~24GHz, Gain25dB, Noise figuredB, P-1dB20dBm, Psat22dBm, 2.92-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.8 | ~ | 24 | GHz |
| Gain | 25 | dB | ||
| Gain flatness | ±3 | dB | ||
| Noise figure | 5 | dB | ||
| VSWR | 1.8 | 2 | ||
| P-1dB | 20 | dBm | ||
| Psat | 22 | dBm |

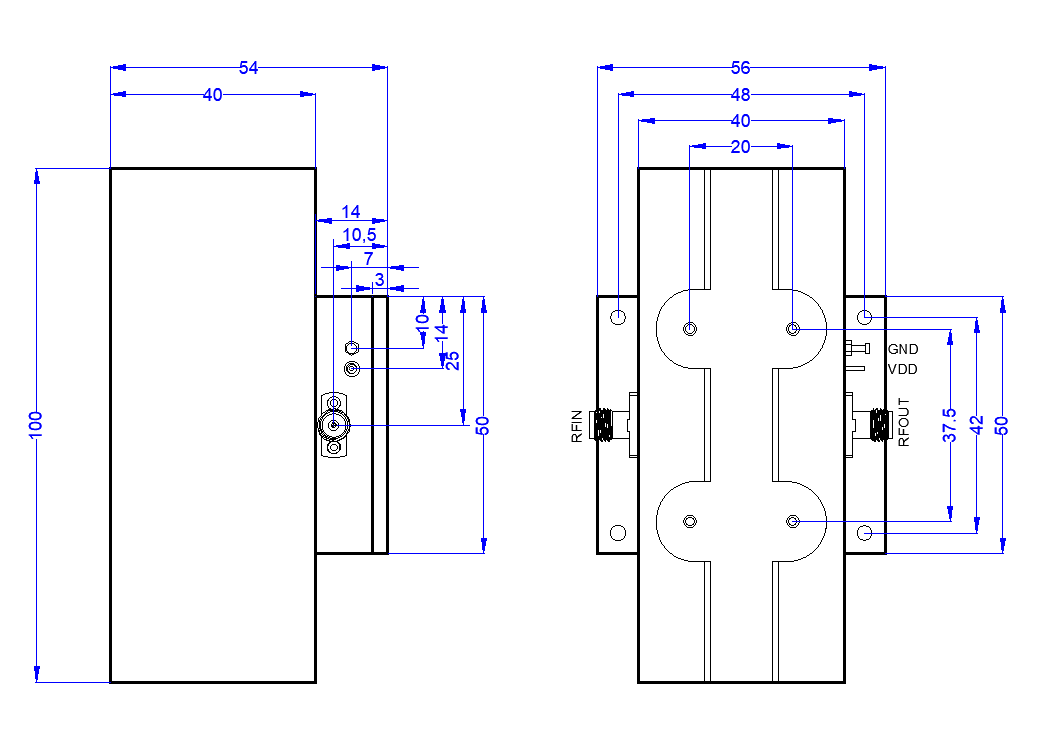

| Connector | 2.92-F detachable, Pin 0.3mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 800mA |
| Operation Temp. | -40~+70℃ Design assurance |

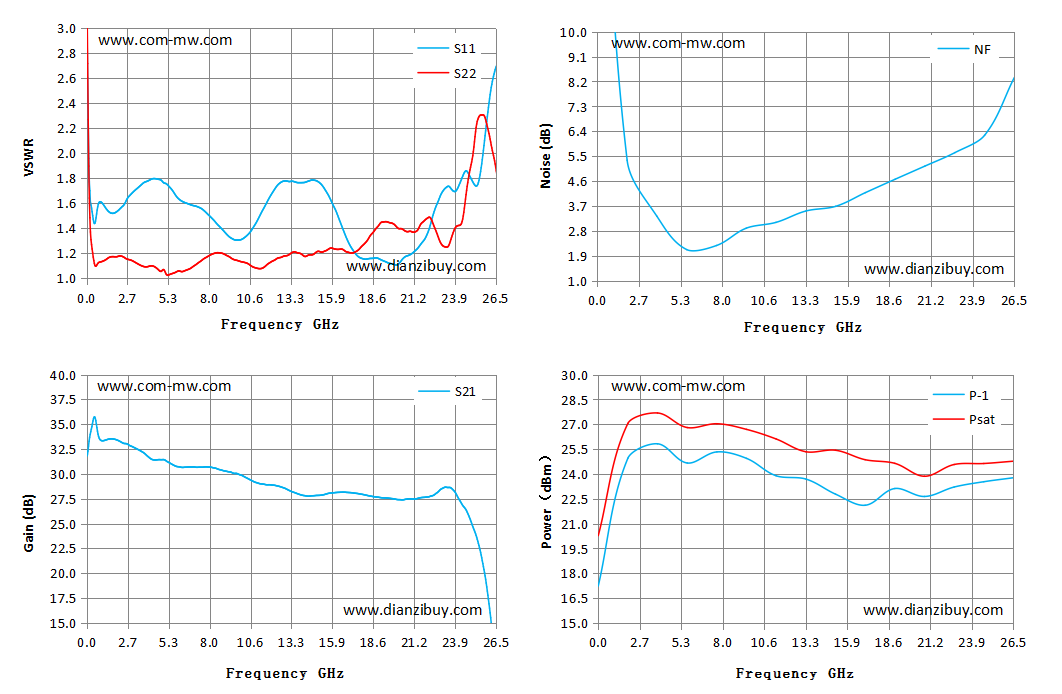

| Frequency | S11 | S22 | Gain | NF | P-1 | Psat |
|---|---|---|---|---|---|---|
| GHz | VSWR | VSWR | dB | dB | dBm | dBm |
| 0.01 | 2.67 | 3.28 | 31.78 | 21.7 | 17.24 | 20.28 |
| 1.9 | 1.55 | 1.17 | 33.45 | 5.36 | 24.95 | 27.05 |
| 3.79 | 1.78 | 1.09 | 32.01 | 3.33 | 25.82 | 27.68 |
| 5.69 | 1.63 | 1.04 | 30.85 | 2.12 | 24.66 | 26.8 |
| 7.58 | 1.54 | 1.15 | 30.68 | 2.27 | 25.33 | 27.03 |
| 9.47 | 1.34 | 1.16 | 30.1 | 2.9 | 24.94 | 26.69 |
| 11.36 | 1.56 | 1.08 | 28.98 | 3.11 | 23.89 | 26.11 |
| 13.26 | 1.75 | 1.2 | 28.23 | 3.52 | 23.69 | 25.34 |
| 15.15 | 1.76 | 1.21 | 27.85 | 3.69 | 22.78 | 25.43 |
| 17.04 | 1.27 | 1.21 | 28.12 | 4.19 | 22.11 | 24.86 |
| 18.93 | 1.18 | 1.42 | 27.65 | 4.67 | 23.12 | 24.64 |
| 20.82 | 1.23 | 1.37 | 27.49 | 5.14 | 22.64 | 23.86 |
| 22.72 | 1.61 | 1.36 | 28.13 | 5.63 | 23.21 | 24.57 |
| 24.61 | 1.72 | 1.67 | 26.27 | 6.26 | 23.53 | 24.63 |
| 26.5 | 2.42 | 1.91 | 10.19 | 8.34 | 23.77 | 24.77 |
