100~18000MHz, Gain24dB, Noise figure3.2dB, P-1dB22dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, low noise.
| Parameters | Min | Typical | Max | Units | |
|---|---|---|---|---|---|
| Frequency | 100 | ~ | 18000 | MHz | |
| Gain | 20 | 24 | dB | ||
| Gain flatness | ±1.6 | ±2.0 | dB | ||
| Noise figure | 3.2 | 4.5 | dB | 4.5@＜900MHz | |
| Input VSWR | 2.3 | 2.5 | |||
| Output VSWR | 2.0 | 2.3 | |||
| P-1dB | 20 | 22 | dBm |
| Connector | SMA-K detachable, Pin 0.38mm |
|---|---|
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +15V（13~18V） |
| Working current | 360mA（TYP:280mA） |
| Operation Temp. | -40~+75℃ Design assurance |
| Other | Compliant with Rohs, If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken. |
| Max input power | +13dBm |
| Max voltage input | +20V |

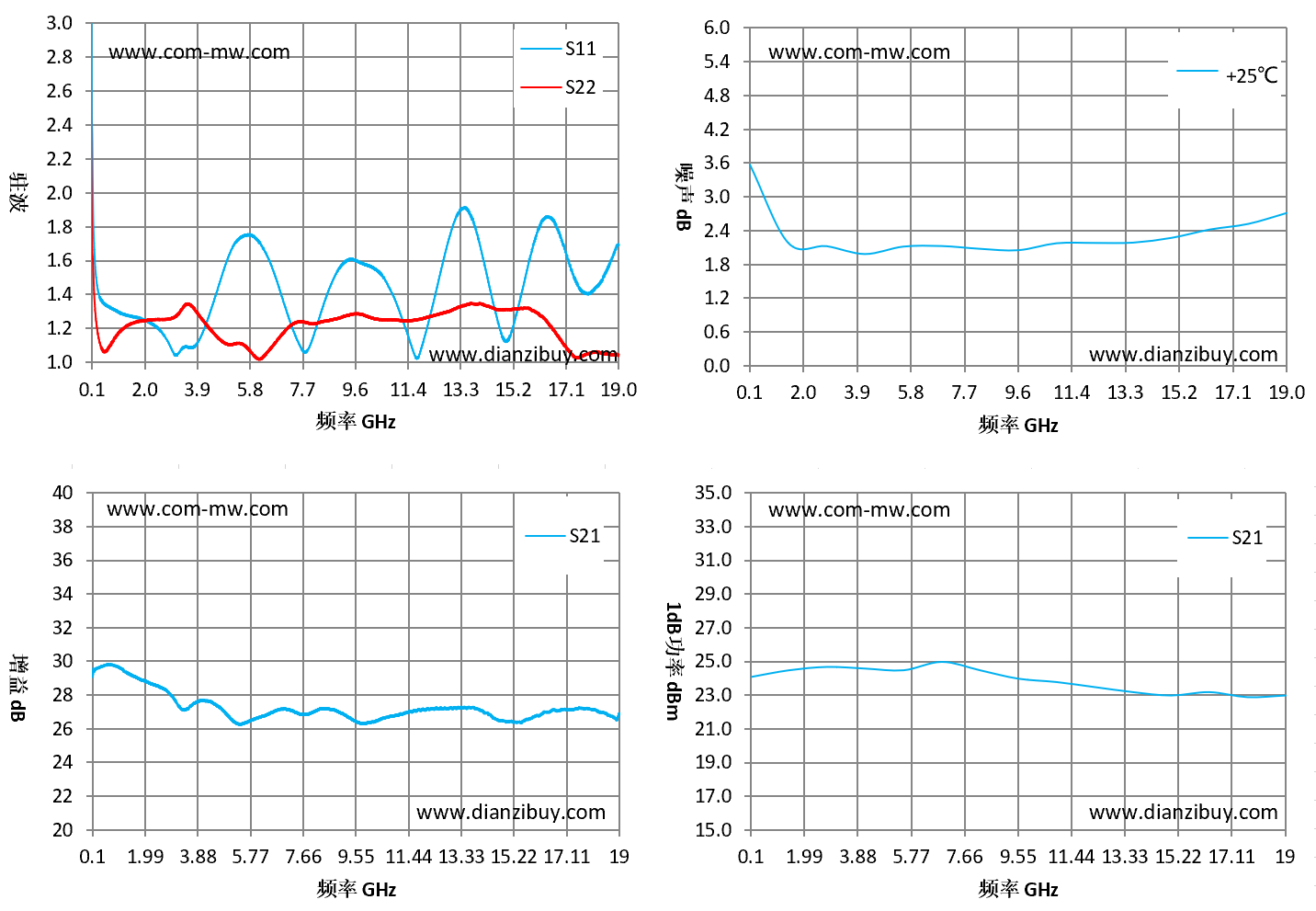

| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 gain | S21 Noise | S21 P-1dB |
|---|---|---|---|---|---|
| 0.1 | 2.36 | 1.71 | 29.12 | 3.57 | 24.1 |
| 1.45 | 1.27 | 1.23 | 29.21 | 2.18 | 24.5 |
| 2.8 | 1.13 | 1.25 | 28.19 | 2.12 | 24.7 |
| 4.15 | 1.21 | 1.23 | 27.65 | 1.98 | 24.6 |
| 5.5 | 1.74 | 1.11 | 26.31 | 2.12 | 24.5 |
| 6.85 | 1.42 | 1.15 | 27.16 | 2.13 | 25 |
| 8.2 | 1.24 | 1.23 | 27.13 | 2.08 | 24.5 |
| 9.55 | 1.6 | 1.29 | 26.41 | 2.05 | 24 |
| 10.9 | 1.4 | 1.25 | 26.76 | 2.17 | 23.8 |
| 12.25 | 1.29 | 1.27 | 27.19 | 2.18 | 23.5 |
| 13.6 | 1.89 | 1.34 | 27.27 | 2.19 | 23.2 |
| 14.95 | 1.12 | 1.31 | 26.38 | 2.27 | 23 |
| 16.3 | 1.84 | 1.26 | 27 | 2.42 | 23.2 |
| 17.65 | 1.42 | 1.03 | 27.23 | 2.52 | 22.9 |
| 19 | 1.7 | 1.04 | 26.94 | 2.71 | 23 |
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
Send us your requirements — our engineers will respond within one working day.
