Downloads

↓ Datasheet ↓ 3D Model 964 KB

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	0.05	~	20000	MHz
Gain	30	32		dB
Noise figure		3.8		dB
VSWR		1.8
P-1dB		21		dBm
Psat		23		dBm
Max input power		5		dBm

Other parameters

Connector	SMA-F or K
Impedance	50Ω
Surface	Gold-plating
Working voltage	+12V
Working current	350mA
Operation Temp.	-30~+65℃ Design assurance

Typical test data

Frequency GHz	S11 VSWR	S22 VSWR	S21 Gain dB	S21 NF dB	P-1 dBm	Psat dBm
0.00005	2.43	9.26	32.16	\	\	\
0.001	1.18	1.65	37.68	\	21.04	25.27
0.01	1.19	1.56	33.66	7.55	20.87	24.72
1.58	1.16	1.60	33.33	3.91	20.72	24.42
3.15	1.12	1.32	33.94	3.24	21.94	25.60
4.72	1.17	1.02	33.86	2.55	22.47	25.70
6.29	1.11	1.24	33.76	2.04	22.18	25.88
7.86	1.08	1.07	33.91	2.04	22.84	26.17
9.43	1.13	1.36	33.31	2.21	22.23	25.65
11.01	1.18	1.39	32.82	2.43	22.61	25.61
12.58	1.13	1.25	32.38	2.72	21.66	24.96
14.15	1.14	1.33	32.17	2.84	21.80	24.80
15.72	1.10	1.31	31.91	3.31	21.04	24.34
17.29	1.23	1.42	31.65	3.65	21.56	24.46
18.86	1.36	1.31	31.28	4.18	21.11	24.41
20.43	1.07	1.22	31.22	4.17	21.62	25.22
22.00	1.38	1.64	30.48	4.59	22.10	25.40

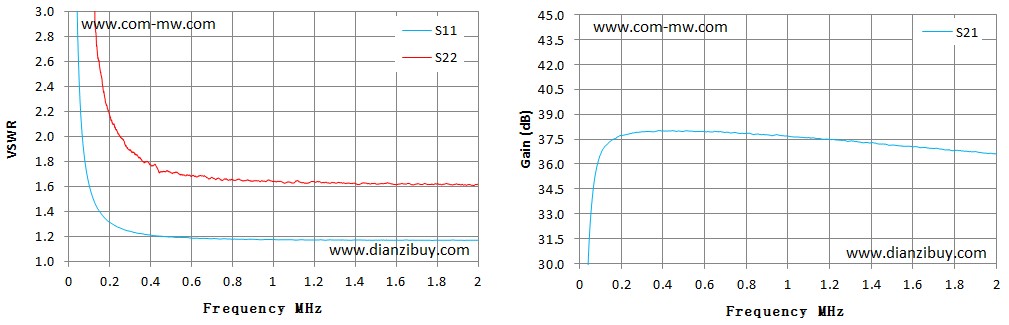

Typical test curve

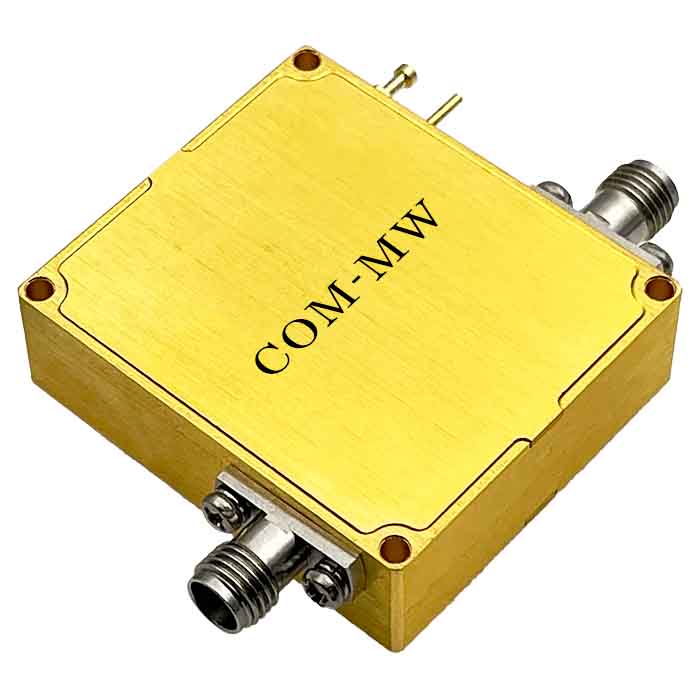

Reference picture

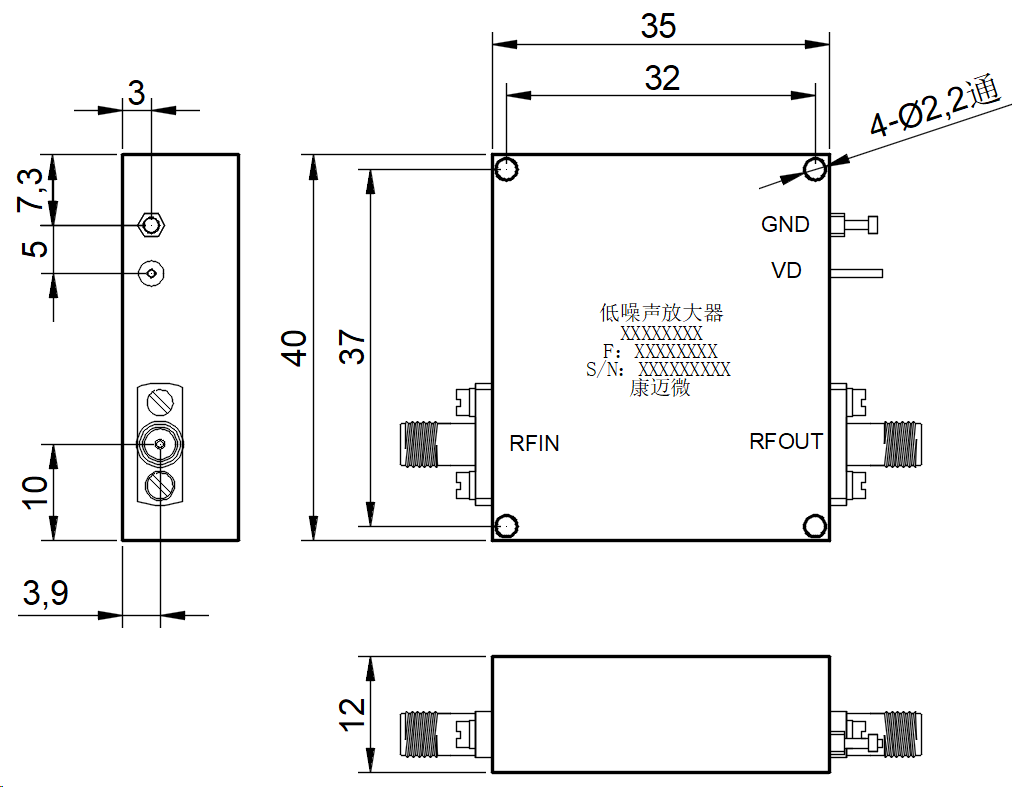

Configuration(mm)

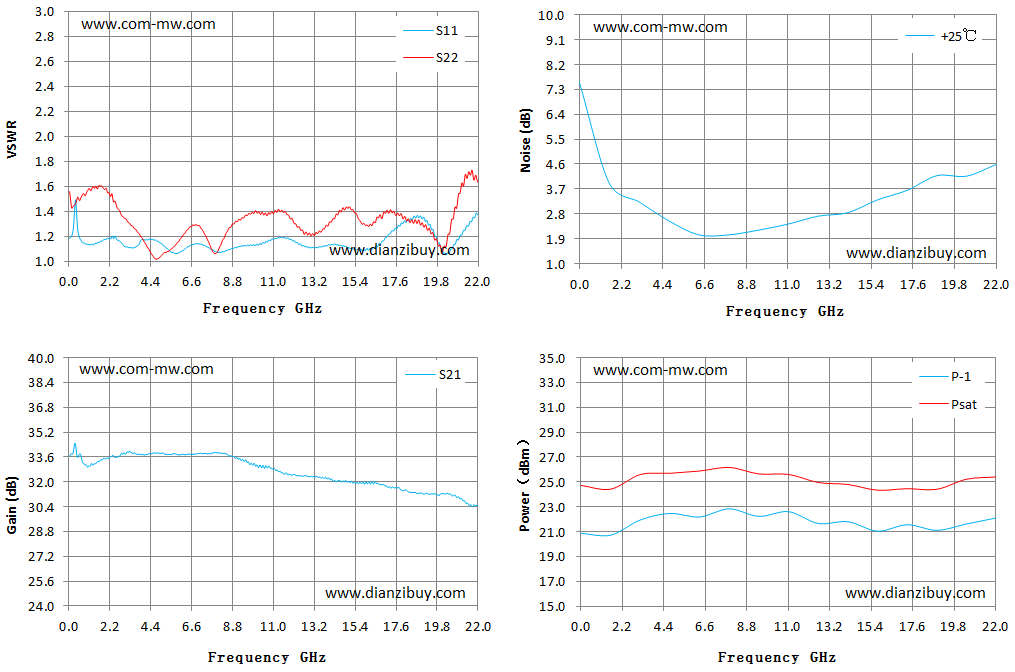

Typical test curve

Note

Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;

Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.

Working or storage temperature less than 125 ℃;

Clean the surface of the product, do not soak the product in cleaning solution for cleaning.

LNA DLNA8-0.1-18000-9335
