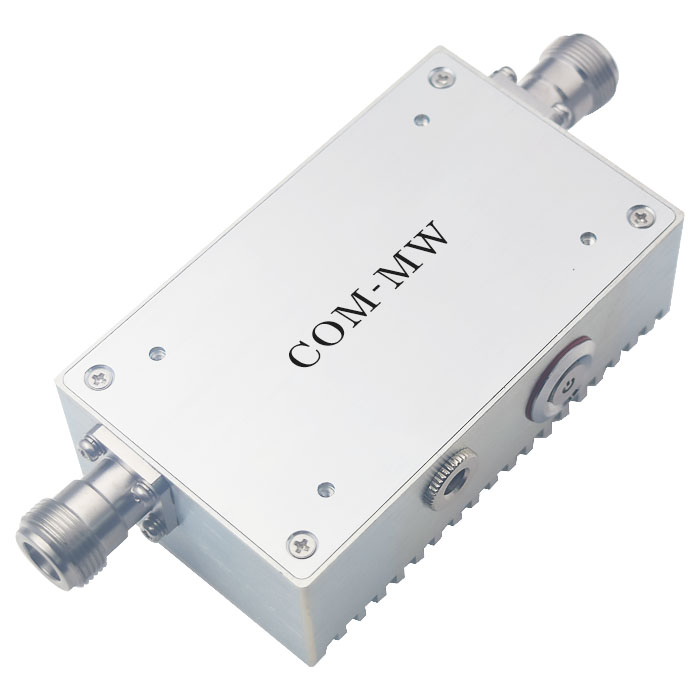

0.01~1000MHz, Gain40dB, Noise figure2dB, P-1dB15dBm, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.01 | ~ | 1000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±1.25 | dB | ||
| Noise figure | 2 | dB | ||
| VSWR | 2.3 | |||
| P-1dB | 15 | dBm |
| Connector | N -K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12~15V |
| Working current | 300mA |
| Reverse isolation | 50dB |
| Operation Temp. | -40~+70℃ Design assurance |
| DC power | Powered by a 220V power adapter with an interface of DC 5.5mm (outer diameter) * 2.1mm (inner aperture) |

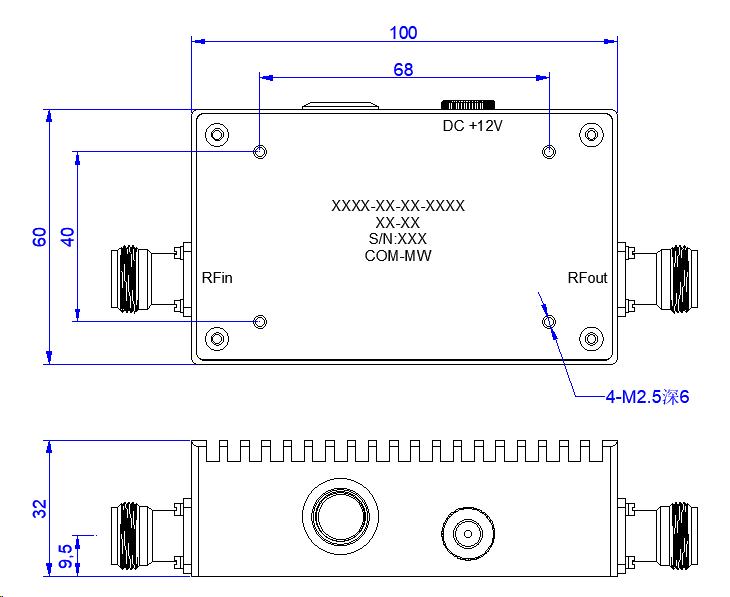

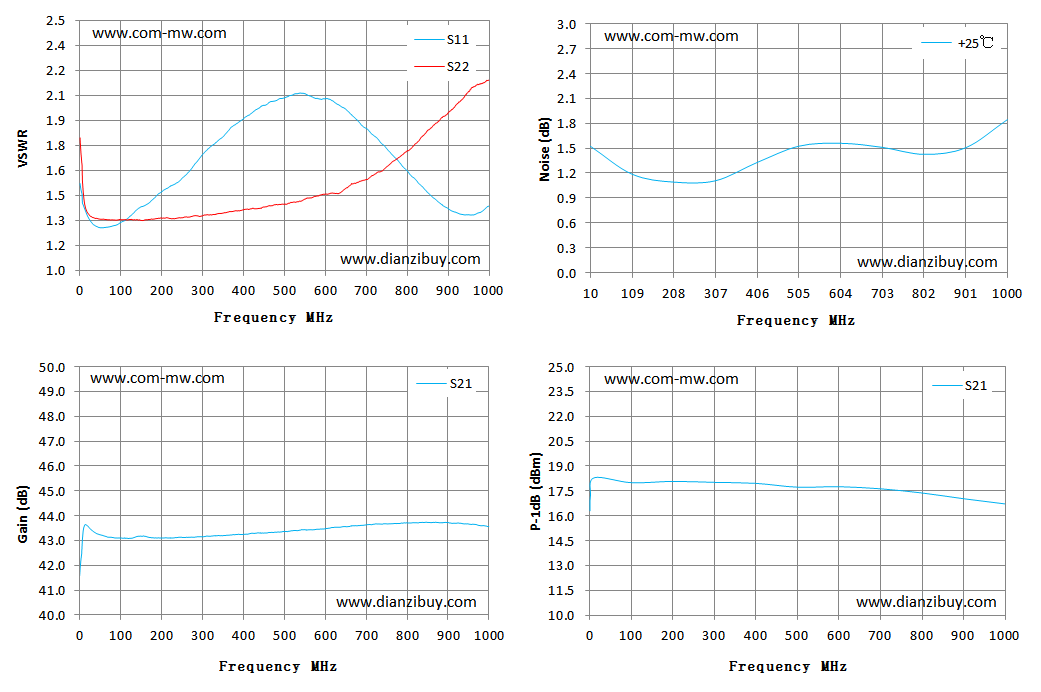

| Frequency(MHz) | S11 VSWR | S22 VSWR | S21 Gain | S21 Noise | S21 P-1dB |
|---|---|---|---|---|---|
| 0.01 | 1.52 | 1.79 | 41.62 | / | 16.3 |
| 1 | 1.5 | 1.75 | 41.82 | / | 17.2 |
| 10 | 1.38 | 1.42 | 43.51 | 1.19 | 18.3 |
| 100 | 1.29 | 1.3 | 43.1 | 1.19 | 18 |
| 200 | 1.47 | 1.32 | 43.1 | 1.09 | 18.08 |
| 300 | 1.7 | 1.33 | 43.15 | 1.11 | 18.02 |
| 400 | 1.91 | 1.37 | 43.25 | 1.33 | 17.96 |
| 500 | 2.03 | 1.4 | 43.36 | 1.53 | 17.73 |
| 600 | 2.03 | 1.46 | 43.48 | 1.56 | 17.76 |
| 700 | 1.85 | 1.55 | 43.63 | 1.51 | 17.63 |
| 800 | 1.6 | 1.72 | 43.71 | 1.43 | 17.38 |
| 900 | 1.37 | 1.95 | 43.73 | 1.51 | 17.03 |
| 1000 | 1.39 | 2.15 | 43.56 | 1.85 | 16.72 |
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Working or storage temperature less than 125 ℃;
