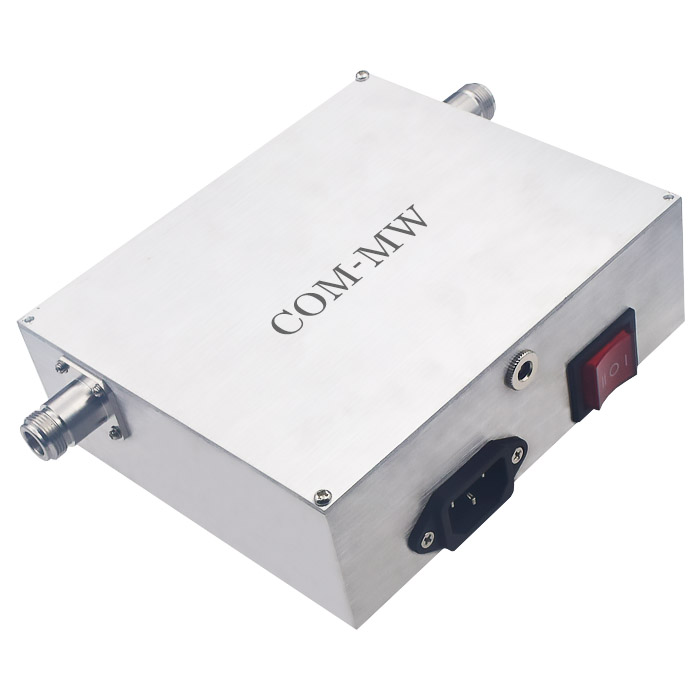

0.01~1000MHz, Gain50dB, Noise figure2.5dB, P-1dB15dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, low noise.
| Parameters | Min | Typical | Max | Units | |
|---|---|---|---|---|---|
| Frequency | 0.01 | ~ | 1000 | MHz | |
| Gain | 50 | dB | （51±1.5dB@100MHz） | ||
| Gain flatness | ±1 | dB | ±0.5@0.5- 800MHz | ||
| Noise figure | 2.5 | dB | 1.8dB@10-500MHz | ||
| VSWR | 2.5 | 300kHz - 1GHz | |||
| P-1dB | 15 | dBm | |||
| Max input power | -36 | dBm | |||
| Harmonic Rejection | -55 | dBc | Output 0dBm @200MHz | ||
| IP3 | 28 | dBm | 300MHz | ||
| Reverse isolation | 50 | dB | 20kHz - 1GHz |
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Operation Temp. | -30~+70℃ Design assurance |

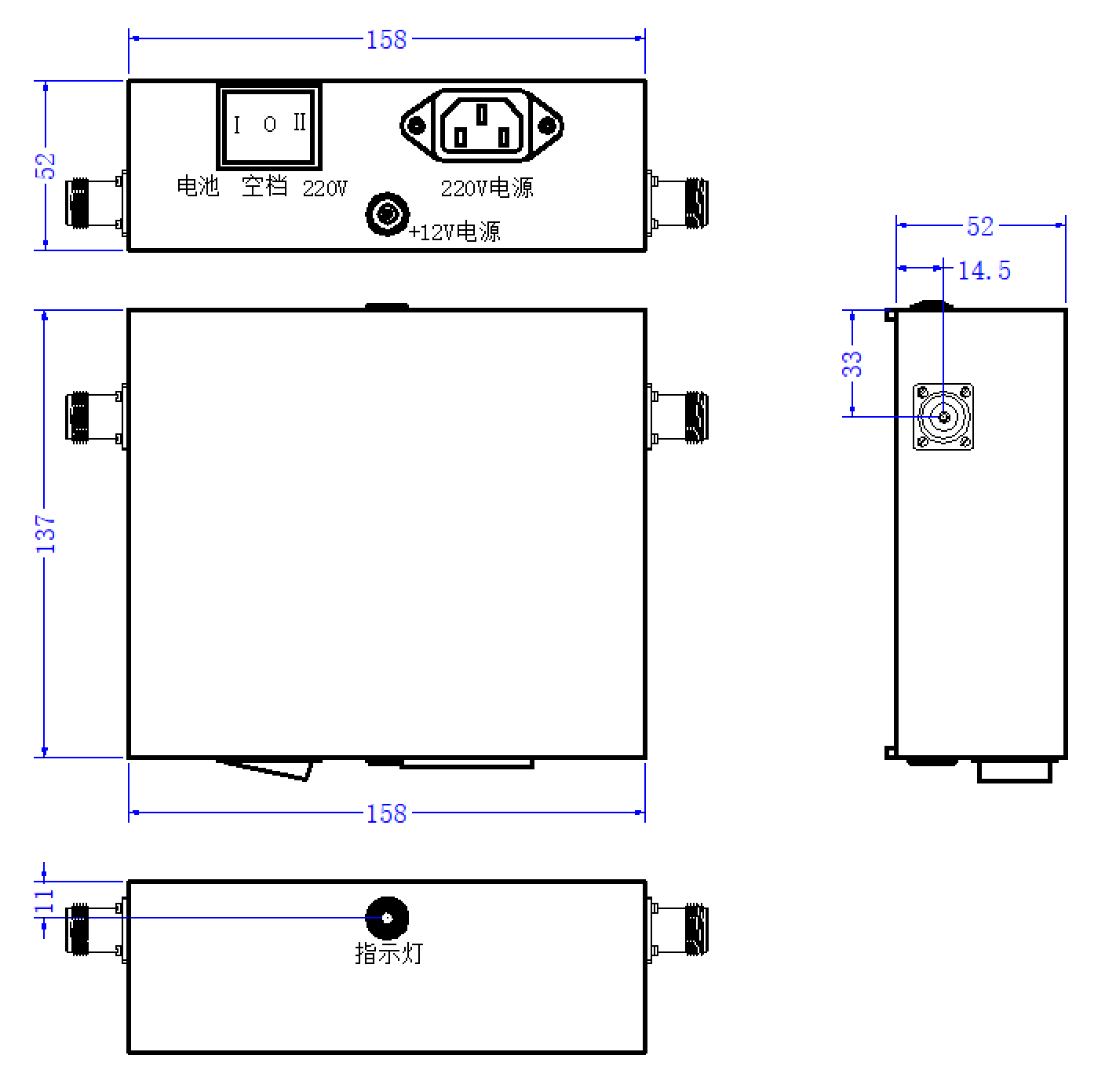

| Power supply method 1 | 220V power supply, standard AC interface, 12-15V/5W output |
| Power supply method 2 | 10 units, battery number 5 |
| Power supply method 3 | DC power supply, interface 2.5mm (inner aperture) |
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
