0.009~6000MHz, Gain 15, Noise figure 3.5, P-1dB 10, SMA, Input limiting protection
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.009 | ~ | 6000 | MHz |
| Gain | 15 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 3.5 | dB | ||
| VSWR | 2 | |||
| P-1dB | 10 | dBm | ||
| Clipping level | 15 | dBm | ||
| Max input power | 10 | W |
| Connector | SMA-F Detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +7.4~15V |
| Working current | 200mA |
| Operation Temp. | -40~+85℃ Design assurance |
| Other | Input limiting protection |

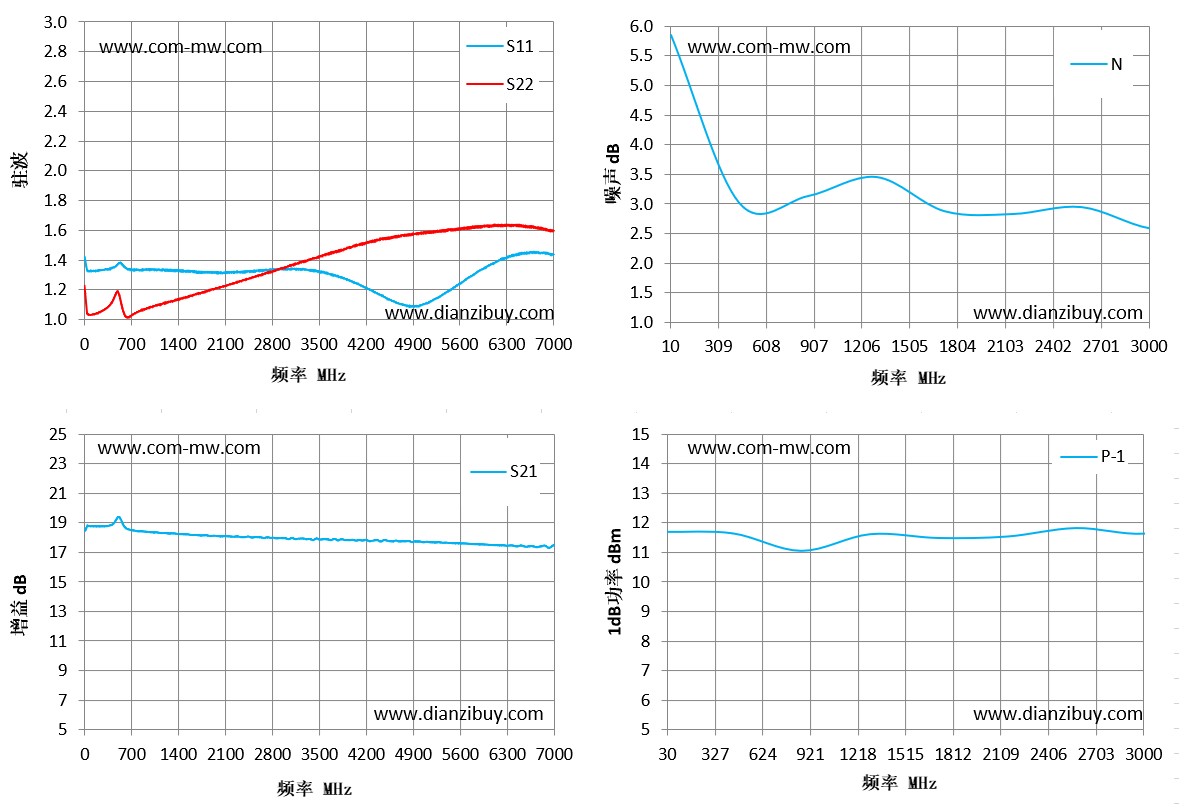

| Frequency GHz | S11 VSWR | S22 VSWR | S21 GAINdB | S21 P-1 dBm | Psat dBm | +25℃ NF dB |
| 0.000009 | 1.54 | 1.51 | 17.35 | 10.04 | 11.60 | / |
| 0.001 | 1.43 | 1.35 | 17.68 | 11.95 | 14.06 | / |
| 0.01 | 1.35 | 1.26 | 17.82 | 12.04 | 15.07 | 11.35 |
| 0.72 | 1.24 | 1.05 | 17.78 | 12.09 | 15.00 | 3.31 |
| 1.43 | 1.19 | 1.17 | 17.55 | 11.97 | 15.20 | 3.63 |
| 2.14 | 1.21 | 1.25 | 17.46 | 12.13 | 15.16 | 3.18 |
| 2.86 | 1.27 | 1.37 | 17.39 | 11.87 | 15.30 | 2.91 |
| 3.57 | 1.31 | 1.50 | 17.34 | 12.30 | 15.40 | 2.71 |
| 4.29 | 1.26 | 1.59 | 17.31 | 12.13 | 15.06 | 2.27 |
| 5.00 | 1.21 | 1.61 | 17.28 | 11.85 | 14.80 | 2.05 |
| 5.71 | 1.29 | 1.59 | 17.22 | 11.67 | 14.80 | 1.90 |
| 6.43 | 1.37 | 1.52 | 17.13 | 11.40 | 14.50 | 1.93 |
| 7.14 | 1.31 | 1.40 | 17.15 | 11.92 | 14.70 | 1.96 |
| 7.86 | 1.28 | 1.31 | 17.13 | 11.82 | 14.80 | 1.98 |
| 8.57 | 1.51 | 1.36 | 16.99 | 12.05 | 15.00 | 2.24 |
| 9.29 | 1.78 | 1.38 | 16.87 | 12.17 | 15.00 | 2.74 |
| 10.00 | 1.91 | 1.32 | 16.70 | 12.19 | 15.10 | 3.02 |
, When designing, consider the issue of amplifier heat dissipation.
Send us your requirements — our engineers will respond within one working day.
