0.009~3000MHz, Gain30dB, Noise figure3dB, P-1dB15dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.009 | ~ | 3000 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | 3 | 5 | dB | |
| Noise figure | 3 | dB | ||
| VSWR | 2 | |||
| P-1dB | 15 | dBm | ||
| Psat | 17 | dBm | ||
| IP3 | 26 | dBm |
| Connector | SMA-F Detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 300mA |
| Reverse isolation | 43dB |
| Operation Temp. | -40~+70℃ Design assurance |

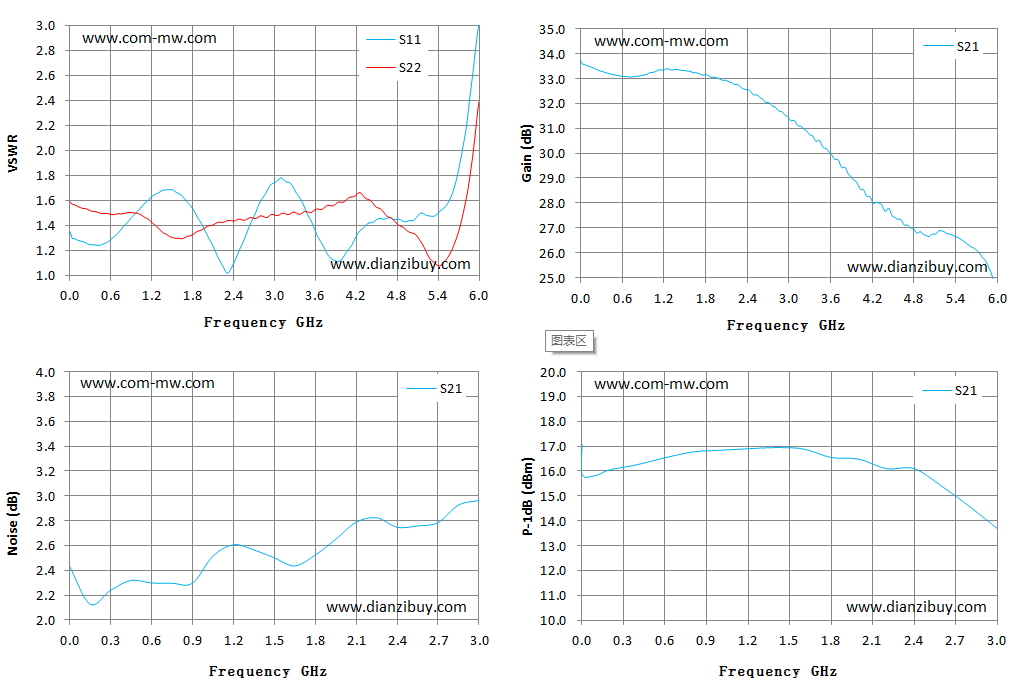

| Frequency（ GHz） | S11 VSWR | S22 VSWR | Noise dB | Gain dB | P-1dB |
|---|---|---|---|---|---|
| 0.001 | 1.35 | 1.59 | 2.43 | 33.7 | 15.86 |
| 0.1 | 1.29 | 1.56 | 2.2 | 33.51 | 15.83 |
| 0.2 | 1.27 | 1.54 | 2.23 | 33.4 | 16.05 |
| 0.4 | 1.25 | 1.51 | 2.32 | 33.21 | 16.26 |
| 0.6 | 1.29 | 1.49 | 2.3 | 33.08 | 16.54 |
| 0.8 | 1.4 | 1.5 | 2.29 | 33.09 | 16.77 |
| 1 | 1.52 | 1.5 | 2.51 | 33.23 | 16.84 |
| 1.2 | 1.64 | 1.43 | 2.61 | 33.35 | 16.9 |
| 1.4 | 1.69 | 1.34 | 2.57 | 33.35 | 16.95 |
| 1.6 | 1.66 | 1.3 | 2.44 | 33.26 | 16.89 |
| 1.8 | 1.54 | 1.33 | 2.52 | 33.15 | 16.55 |
| 2 | 1.34 | 1.39 | 2.71 | 32.98 | 16.48 |
| 2.2 | 1.12 | 1.43 | 2.82 | 32.78 | 16.1 |
| 2.4 | 1.1 | 1.44 | 2.75 | 32.55 | 16.1 |
| 2.6 | 1.34 | 1.46 | 2.81 | 32.21 | 15.39 |
| 2.8 | 1.6 | 1.48 | 2.93 | 31.85 | 14.58 |
| 3 | 1.75 | 1.49 | 2.97 | 31.4 | 13.69 |
, When designing, consider the issue of amplifier heat dissipation.
