0.009~3000MHz, Gain40dB, Noise figure3.8dB, P-1dB15dBm, SMA, Limiting amplifier
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, low noise, input limiting protection
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.009 | ~ | 3000 | MHz |
| Gain | 38 | 40 | dB | |
| Gain flatness | 3 | 5 | dB | |
| Noise figure | 3.8 | dB | ||
| VSWR | 2 | |||
| P-1dB | 15 | dBm | ||
| Input limiting power | 13 | dBm | ||
| Max input power | 10 | W |
| Connector | SMA-K detachable, Pin 0.38mm |
|---|---|
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12~15V |
| Working current | 300mA |
| Reverse isolation | 50dB |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Limiting amplifier |

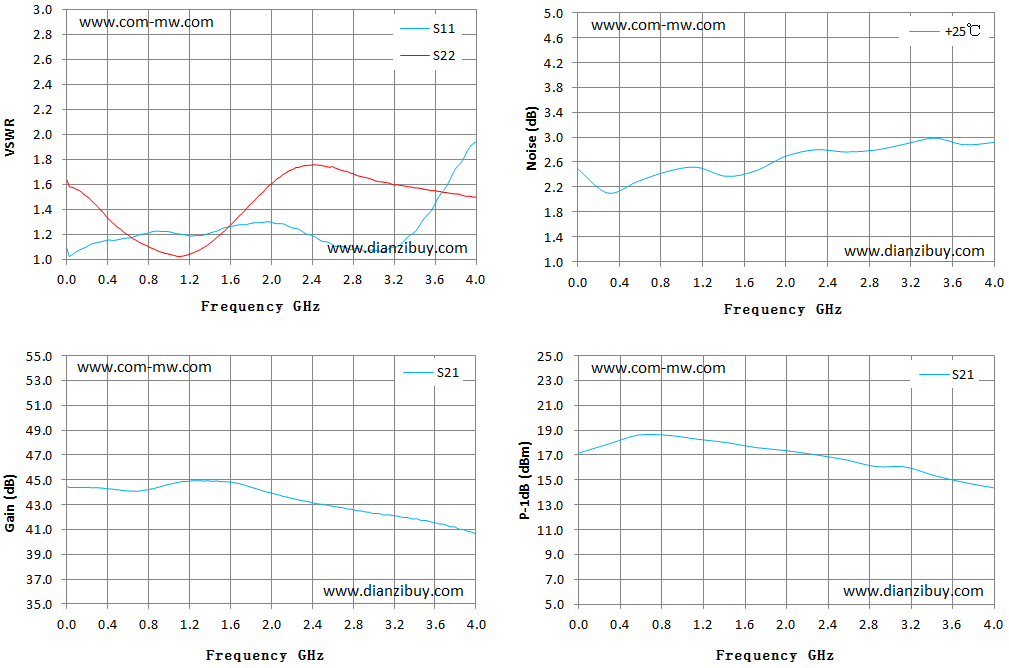

| 频率（GHz） | S11 VSWR | S22 VSWR | Gain dB | Noise dB | P-1dB Output |
|---|---|---|---|---|---|
