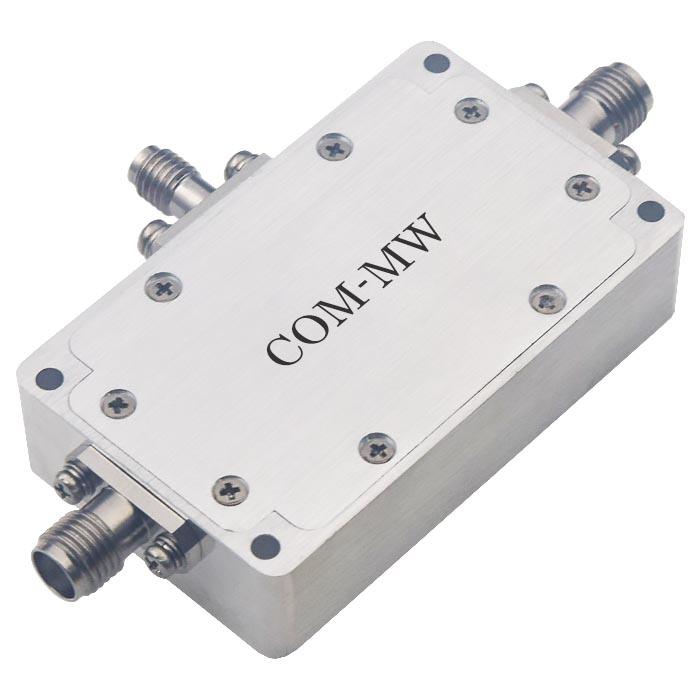

0.005~300MHz, Gain55dB, Noise figure2.5dB, P-1dB15dBm, SMA-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.005 | ~ | 300 | MHz |
| Gain | 55 | dB | ||
| Gain flatness | 2 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 1.6 | |||
| P-1dB | 15 | dBm | ||
| Maximum Input Power | 15 | dBm |
| Connector | SMA-F Detachable, Pin 0.38mm |
|---|---|
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12~15V |
| Working current | 200mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | SSMA connector power supply, port detachable. |
| If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken. |

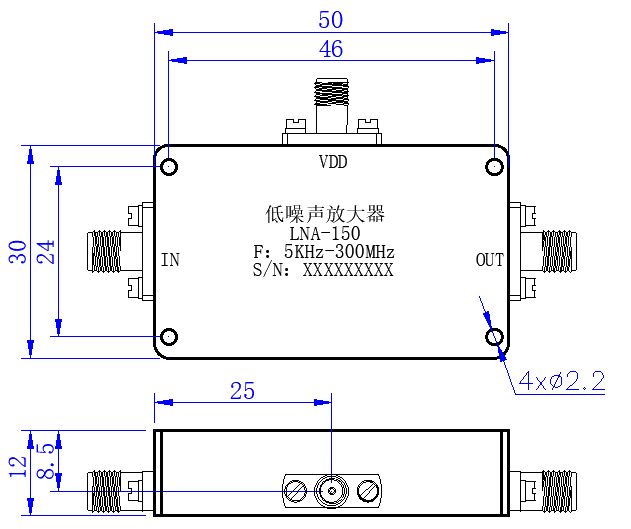

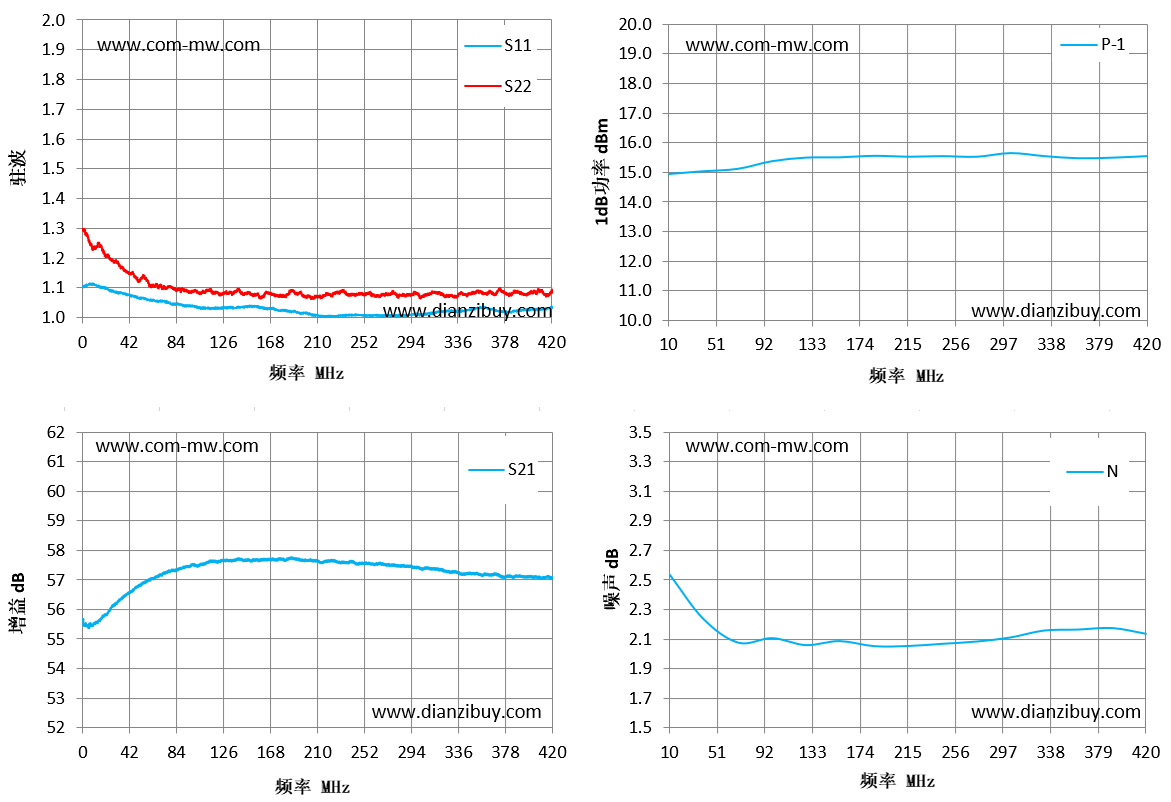

| Frequency(MHz) | S11 VSWR | S22 VSWR | S21 gain | Noise | P-1dB |
|---|---|---|---|---|---|
| 10 | 1.11 | 1.29 | 55.68 | 2.53 | 14.96 |
| 30 | 1.09 | 1.19 | 56.21 | 2.23 | 15.05 |
| 60 | 1.06 | 1.11 | 57 | 2.08 | 15.13 |
| 90 | 1.04 | 1.09 | 57.41 | 2.11 | 15.38 |
| 120 | 1.03 | 1.09 | 57.6 | 2.06 | 15.5 |
| 150 | 1.04 | 1.08 | 57.63 | 2.09 | 15.51 |
| 180 | 1.02 | 1.08 | 57.67 | 2.05 | 15.56 |
| 210 | 1.01 | 1.07 | 57.64 | 2.05 | 15.53 |
| 240 | 1.01 | 1.08 | 57.61 | 2.07 | 15.55 |
| 270 | 1.01 | 1.08 | 57.49 | 2.08 | 15.53 |
| 300 | 1.01 | 1.08 | 57.42 | 2.11 | 15.65 |
| 330 | 1.02 | 1.08 | 57.26 | 2.16 | 15.55 |
| 360 | 1.03 | 1.08 | 57.19 | 2.17 | 15.48 |
| 390 | 1.02 | 1.09 | 57.13 | 2.18 | 15.5 |
| 420 | 1.04 | 1.09 | 57.05 | 2.14 | 15.55 |
