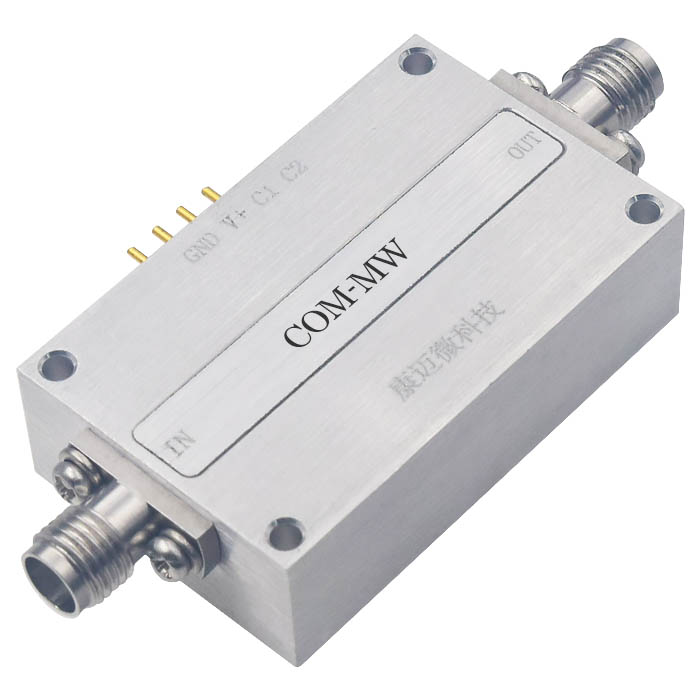

2~18GHz, Gain20,30,40dBAdjustable, Noise figure6dB, P-1dB9dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, adjustable gain.
| Parameters | Min | Typical | Max | Units | Note |
|---|---|---|---|---|---|
| Frequency | 2 | ~ | 18 | GHz | |
| Gain | 20,30,40 | dB | Adjustable | ||
| Gain flatness | ±3 | dB | |||
| Ripple | 1 | dB | 1G BW | ||
| Noise figure | 6 | dB | 20~40dB gain range | ||
| VSWR | 2.5 | ||||
| P-1dB | 9 | dBm | |||
| Clutter level | -70 | dBm | |||
| Weight | 50 | g |
| Connector | SMA-K |
|---|---|
| Connector material | Stainless steel |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 200mA |
| Operation Temp. | -40~+55℃ Design assurance |
| Other | 2W continuous wave, pulse 20W (RF input port); Power on state gain 20dB |

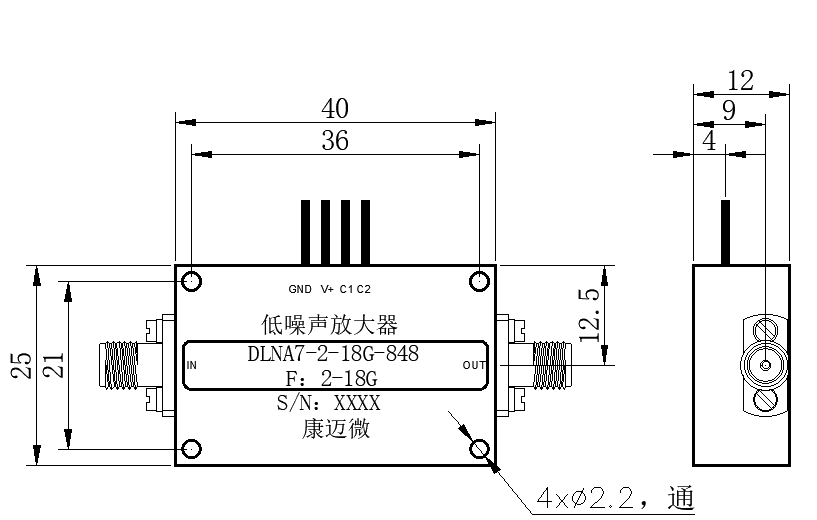

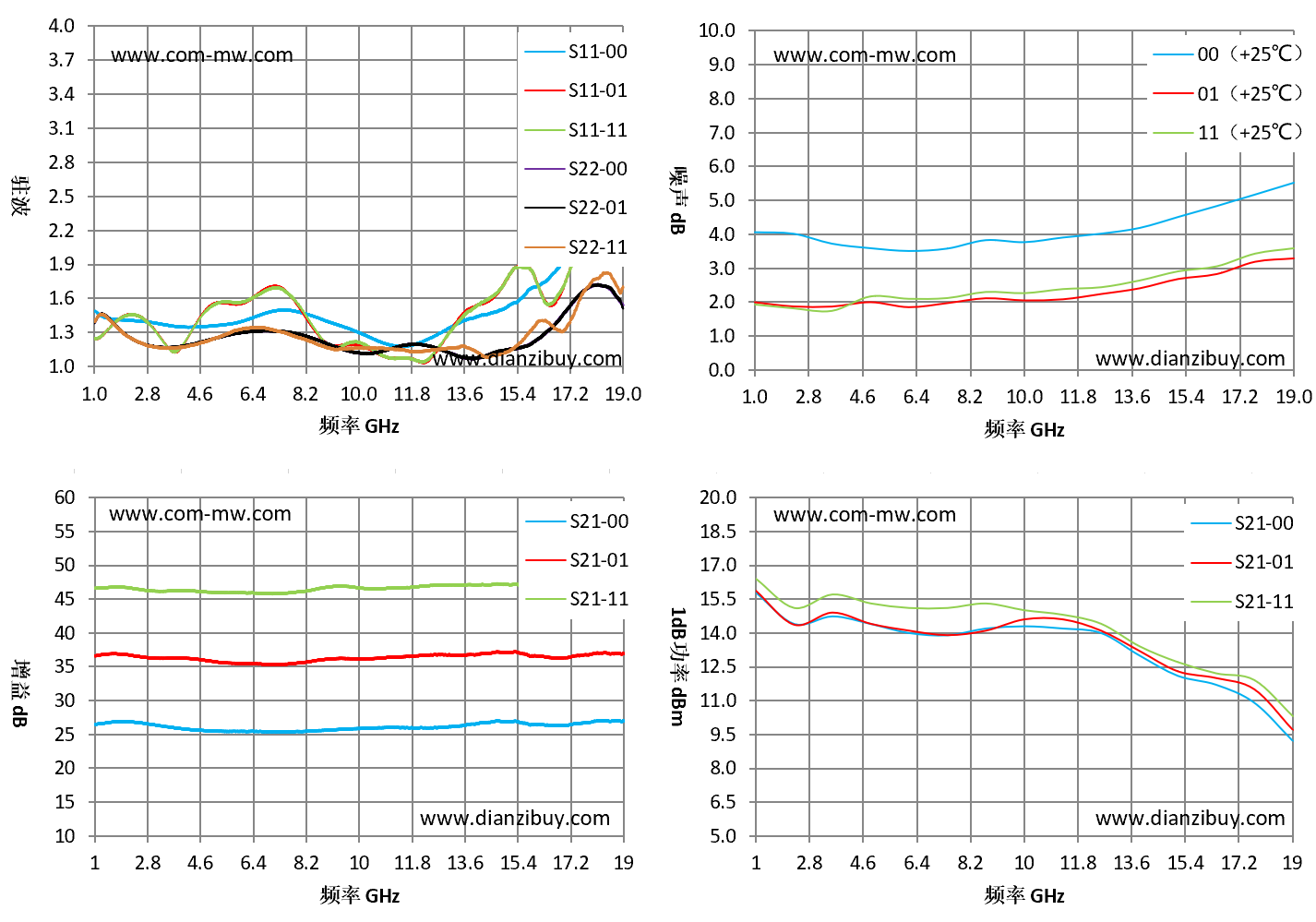

| Frequency(GHz) | S11 VSWR | S21 gain | S21 gain | S21 gain |
|---|---|---|---|---|
| 1 | 1.49 | 26.48 | 36.61 | 46.61 |
| 2.29 | 1.41 | 26.83 | 36.65 | 46.58 |
| 3.57 | 1.36 | 26.07 | 36.27 | 46.21 |
| 6.14 | 1.41 | 25.43 | 35.46 | 45.91 |
| 7.43 | 1.5 | 25.4 | 35.38 | 45.87 |
| 8.71 | 1.42 | 25.57 | 36.02 | 46.62 |
| 11.29 | 1.18 | 26.02 | 36.46 | 46.65 |
| 12.57 | 1.27 | 26.01 | 36.79 | 47.06 |
| 13.86 | 1.43 | 26.52 | 36.77 | 47.09 |
| 16.43 | 1.77 | 26.36 | 36.39 | 46.77 |
| 17.71 | 2.14 | 26.74 | 36.79 | 46.79 |
| 19 | 2.26 | 27.07 | 37.04 | 47.01 |
