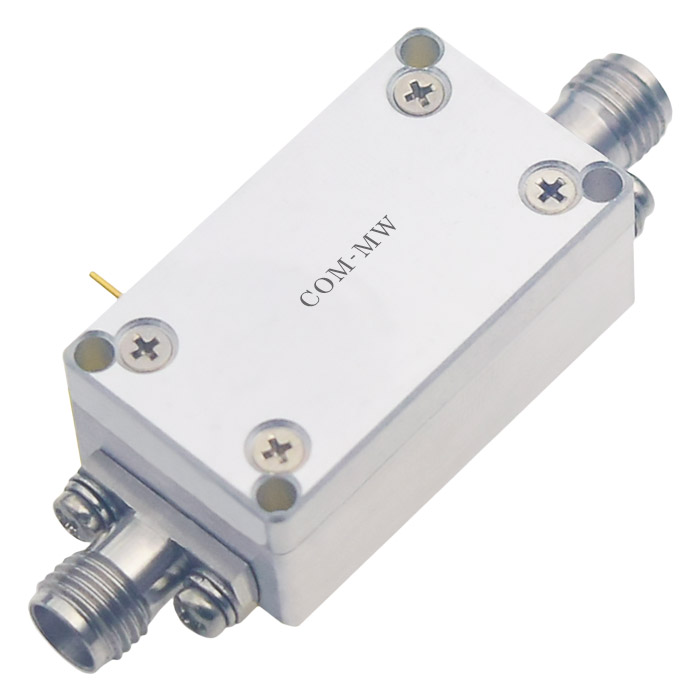

Frequency30~3000MHz, Clipping level17dBm, Power20W, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Small size, high power, wide bandwidth and cost-effective.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 30 | ~ | 3000 | MHz |
| Clipping level | 17 | dBm | ||
| IL | 1.2 | dB | ||
| VSWR | 1.5 |
| Power | 20W |
| Impedance | 50Ω |
| Connector | SMA-K detachable, Pin 0.5mm |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Work Temp. | -40~+85℃ Design assurance |
| Other | With feeding interface: 200mA @+5V |
1, Pay attention to the direction of input and output, reverse connection may cause the product to burn out.
