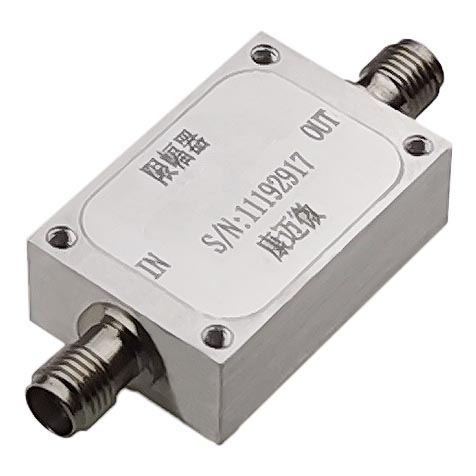

Frequency20~4000MHz, Clipping level15dBm, Power Capacity60W, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Small size, high power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 20 | ~ | 4000 | MHz |
| Clipping level | 15 | dBm | ||
| IL | 1.2 | 1.3 | dB | |
| VSWR | 2.0 |
| Power Capacity | 60W Continuous wave |
| Max input power | 1.0kW Pulse wave |
| Impedance | 50Ω |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Operation Temp. | -40~+85℃ Design assurance |

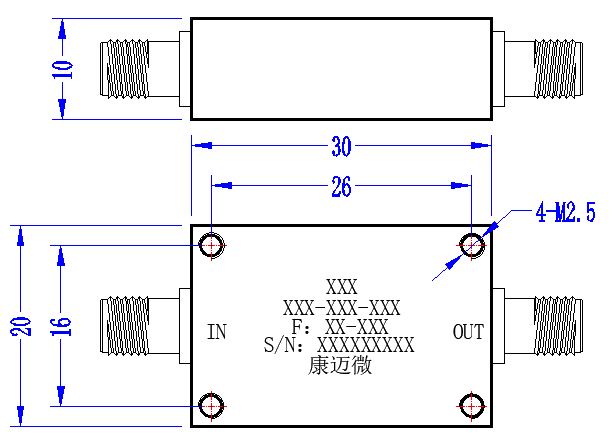

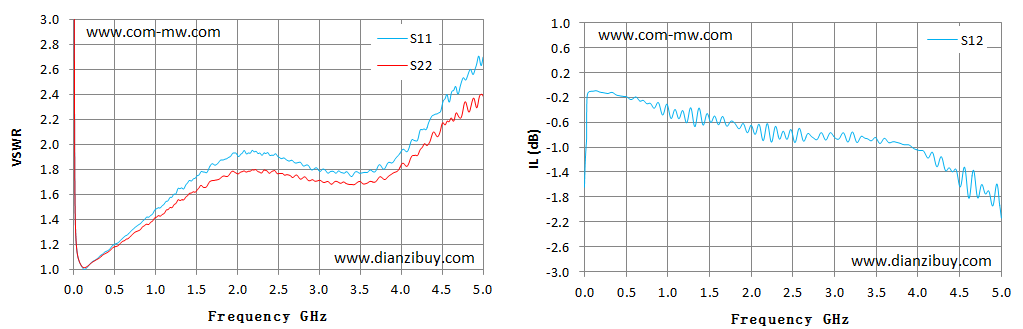

| Frequency GHz | VSWR(S11) | VSWR(S22) | S12 IL dB |
|---|---|---|---|
| 0.01 | 1.68 | 1.67 | 1.22 |
| 0.02 | 1.3 | 1.29 | 0.97 |
| 0.7 | 1.31 | 1.27 | 0.25 |
| 1.07 | 1.51 | 1.44 | 0.43 |
| 1.43 | 1.71 | 1.61 | 0.64 |
| 1.79 | 1.87 | 1.73 | 0.69 |
| 2.14 | 1.93 | 1.78 | 0.89 |
| 2.5 | 1.9 | 1.77 | 0.83 |
| 2.86 | 1.74 | 1.72 | 0.81 |
| 3.21 | 1.78 | 1.71 | 0.76 |
| 3.57 | 1.78 | 1.69 | 0.9 |
| 3.93 | 1.89 | 1.78 | 1 |
| 4.29 | 2.12 | 2 | 1.18 |
| 4.64 | 2.43 | 2.19 | 1.56 |
| 5 | 2.7 | 2.39 | 2.14 |
1, Pay attention to the direction of input and output, reverse connection may cause the product to burn out.
