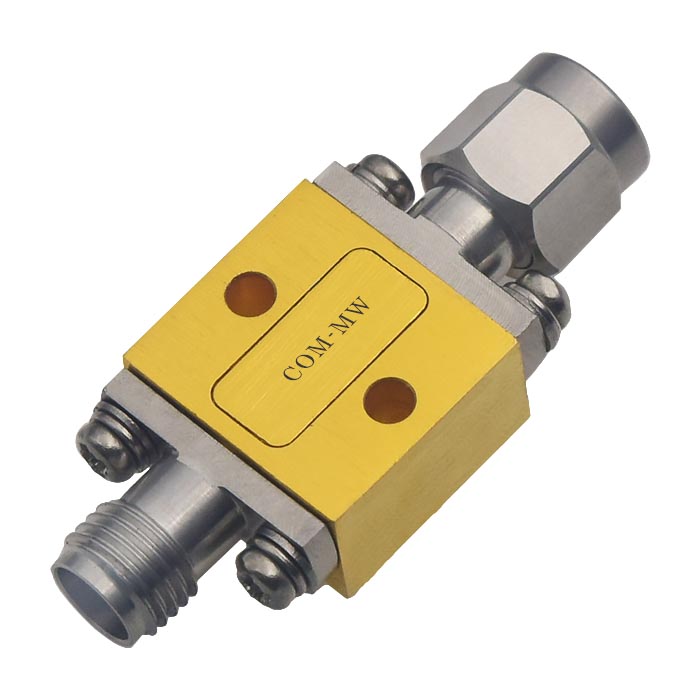

Frequency18~40GHz, Clipping level18dBm, Power1W, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, small volume.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 18 | ~ | 40 | GHz |
| Clipping level | 18 | dBm | ||
| IL | 3 | dB | ||
| VSWR | 2 |
| Power | 1W |
| Impedance | 50Ω |
| Connector | 2.92-JK detachable, Pin 0.3mm |
| Connector material | Stainless steel |
| Surface | Gold-plating |
| Work Temp. | -40~+85℃ Design assurance |

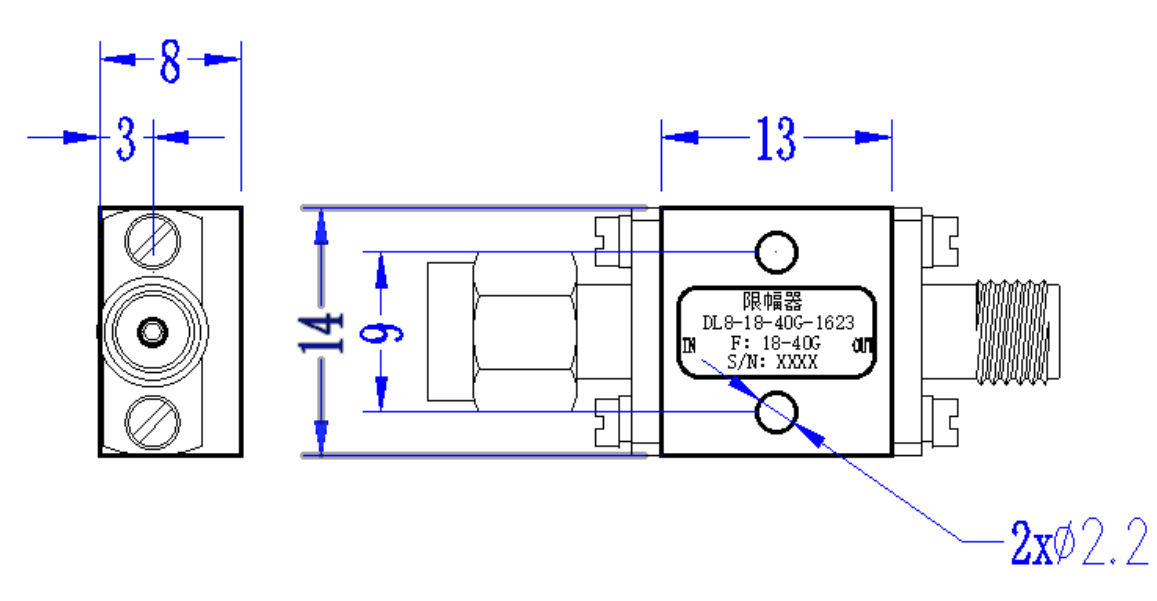

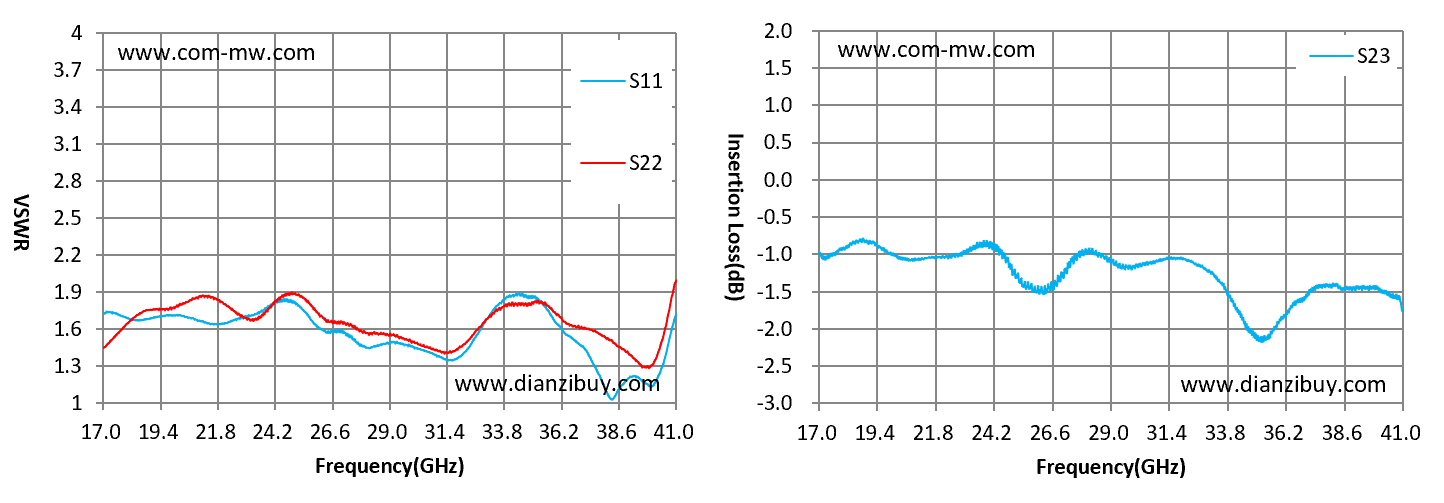

| F(GHz) | S12 IL | S11 VSWR |
|---|---|---|
| 17 | -1 | 1.75 |
| 19 | -0.95 | 1.74 |
| 21 | -1.02 | 1.61 |
| 23 | -0.96 | 1.72 |
| 25 | -1.45 | 1.88 |
| 27 | -1.36 | 1.63 |
| 29 | -1.15 | 1.48 |
| 31 | -1.09 | 1.42 |
| 33 | -1.45 | 1.85 |
| 35 | -2.11 | 1.78 |
| 37 | -1.66 | 1.45 |
| 39 | -1.48 | 1.08 |
| 41 | -1.63 | 1.72 |
1, Pay attention to the direction of input and output, reverse connection may cause the product to burn out.
