Frequency0.2~3000MHz, Clipping level17dBm, Power Capacity2W, SMA, Industrial grade
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units | Units |
|---|---|---|---|---|---|
| Frequency | 0.2 | ~ | 3000 | MHz | |

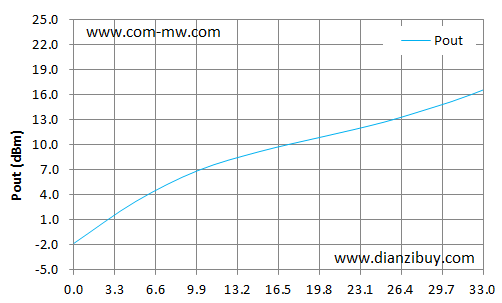

| Clipping level | 17 | dBm | |||

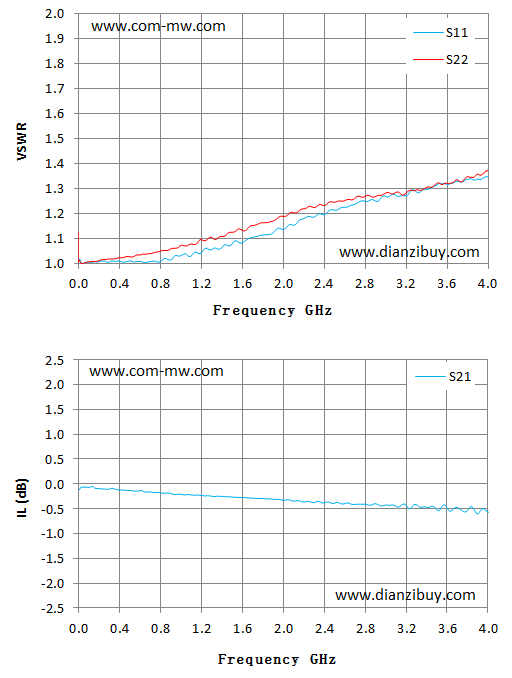

| IL | 0.4 | 0.7 | dB | Input power<4dBm | |
| VSWR | 1.3 | 1.7 | Input power<4dBm | ||
| Input power range | 12 | ~ | 33 | dBm | |
| Recovery time | 5 | ns | |||
| Response time | 5 | ns |
| Power Capacity | 2W Design assurance |
| Impedance | 50Ω |

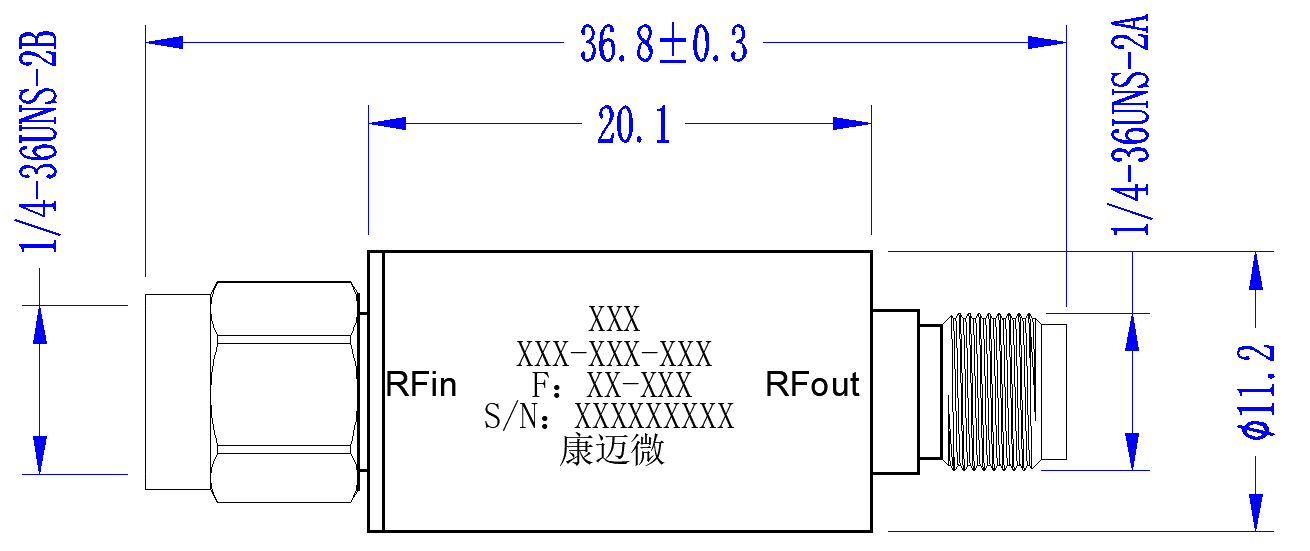

| Connector | SMA |
| Connector material | Housing 304 stainless steel |
| Operation Temp. | -30~+60℃ Design assurance |
| Other | Industrial grade |
1, Pay attention to the direction of input and output, reverse connection may cause the product to burn out.
