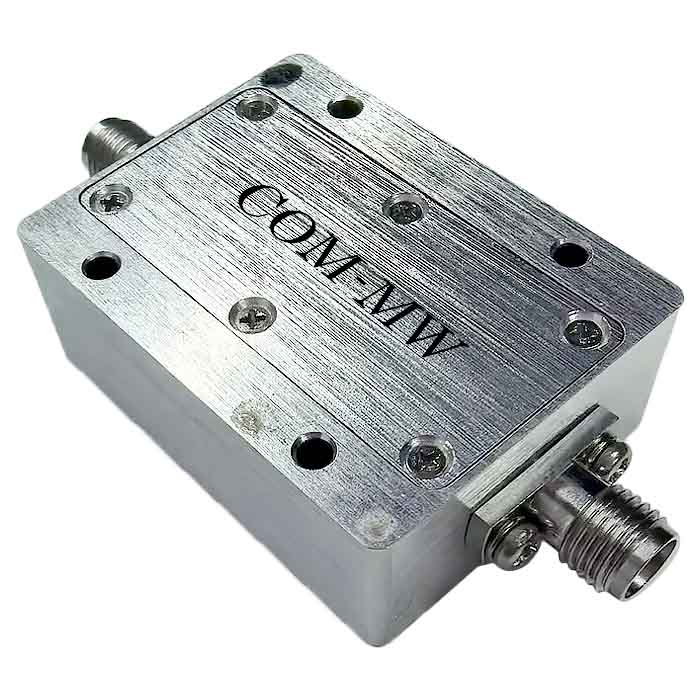

Frequency30~1000MHz, Clipping level15dBm, 200W, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 30 | ~ | 1000 | MHz |
| Clipping level | 15 | dBm | ||

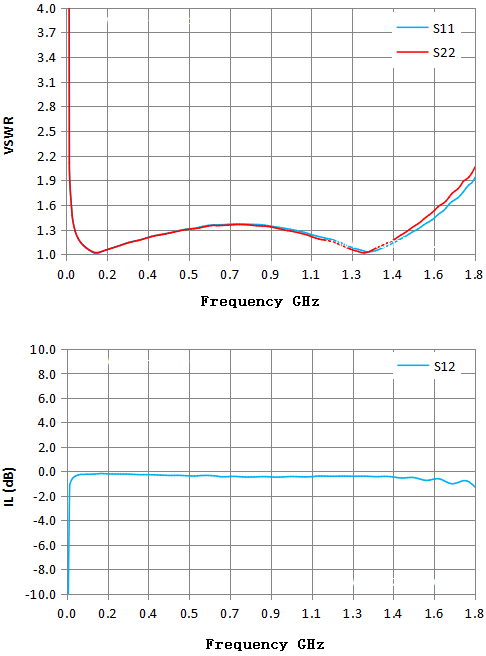

| IL | 0.5 | dB | ||
| VSWR | 1.5 |
| Power Capacity | 200W Design assurance |
| Impedance | 50Ω |

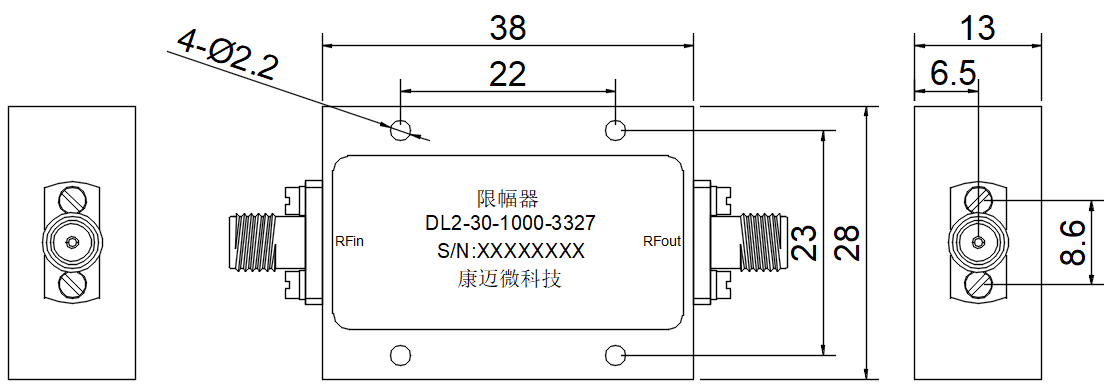

| Connector | SMA-F or K |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Other | 损耗和驻波在0dBm下测试 |
1, Pay attention to the direction of input and output, reverse connection may cause the product to burn out.
