Frequency2~18GHz, Clipping level18dBm, 3W, Microstrip pad
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2 | ~ | 18 | GHz |
| Clipping level | 18 | dBm | ||
| IL | 1.5 | dB | ||
| VSWR | 1.7 |
| Power Capacity | 3W Design assurance |
| Impedance | 50Ω |

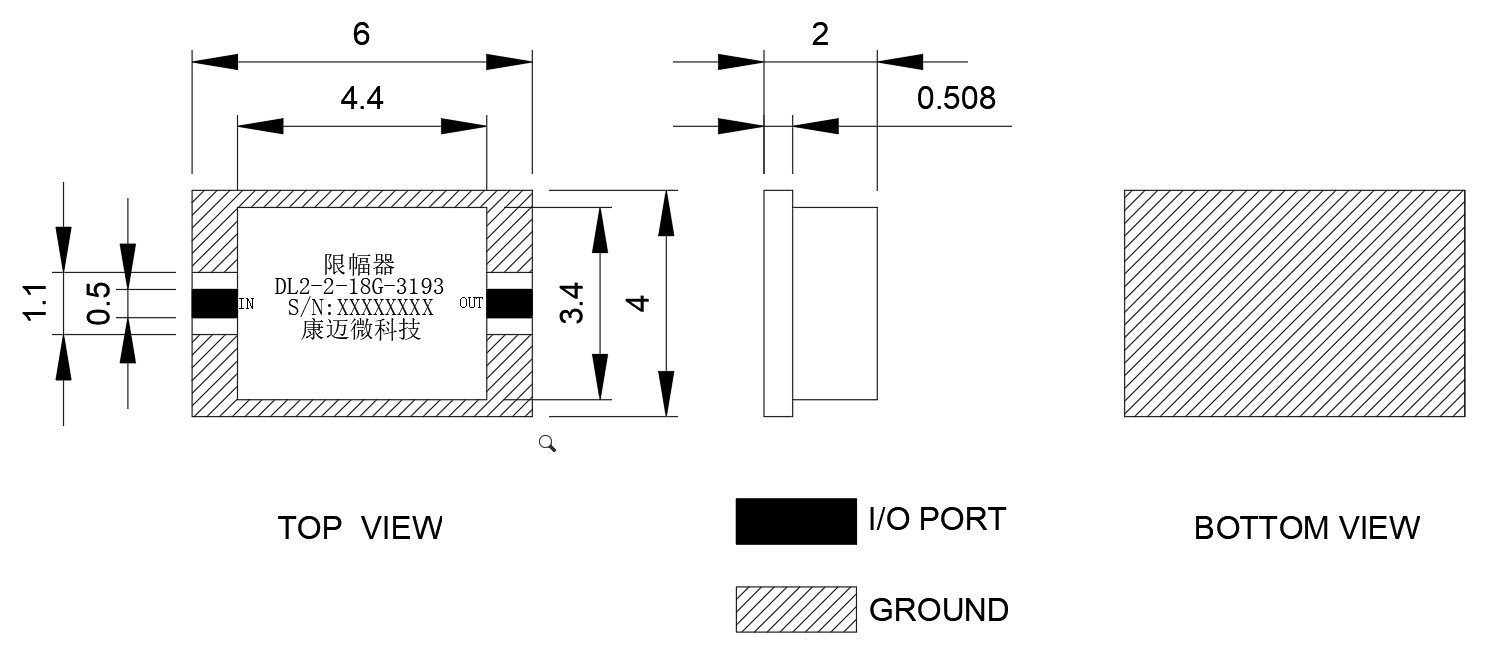

| Connector | Microstrip pad |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
1, Pay attention to the direction of input and output, reverse connection may cause the product to burn out.

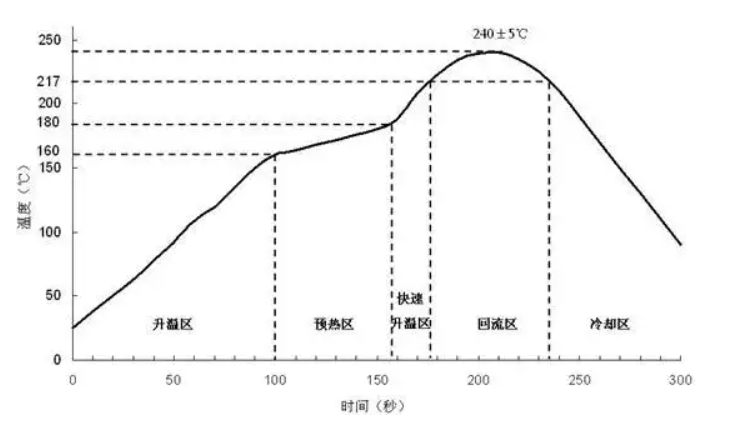

2、本产品支持220℃回流焊。
3、产品内部无隔直电容，请根据实际使用情况，在外部添加隔直电容。
