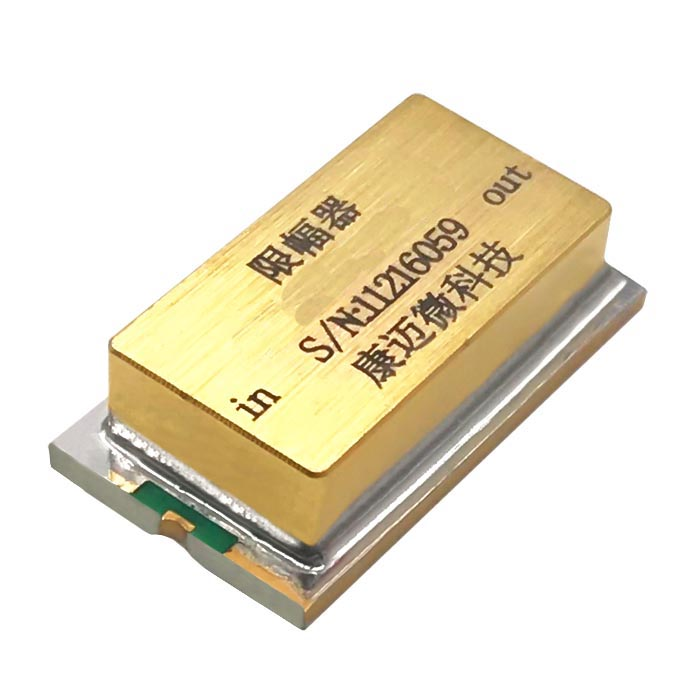

Frequency200~2000MHz, Clipping level12.5dBm, 10W, Microstrip pad
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 200 | ~ | 2000 | MHz |
| Clipping level | 12.5 | dBm | ||
| IL | 0.5 | dB | ||
| VSWR | 1.3 |
| Power Capacity | 10W Design assurance |
| Impedance | 50Ω |
| Connector | Microstrip pad |
| Operation Temp. | -45~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Other | 功率容量：连续波10W工作10分钟 峰值功率200W占空比5％脉宽125us |
1, Pay attention to the direction of input and output, reverse connection may cause the product to burn out.
