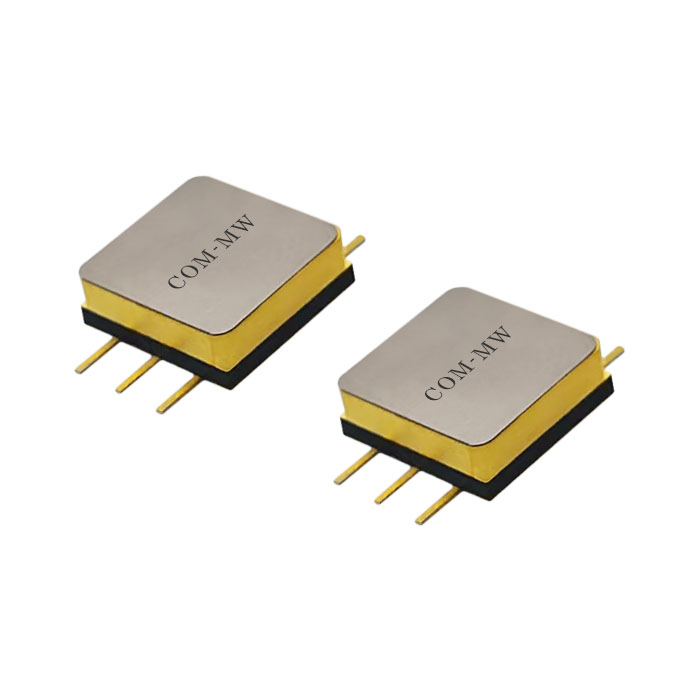

Frequency1.6~3GHz, Clipping level17dBm, 200W(pulse wave), SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1.6 | ~ | 3 | GHz |
| Clipping level | 13 | 17 | dBm | |
| IL | 0.75 | dB | ||
| VSWR | 1.6 |
| Power Capacity | 200W (pulse wave) |
| Impedance | 50Ω |
| Connector | SMD |
| Operation Temp. | -45~+75℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Other | Pulse width of 100uS, duty cycle of 50%, duration of 5S. |

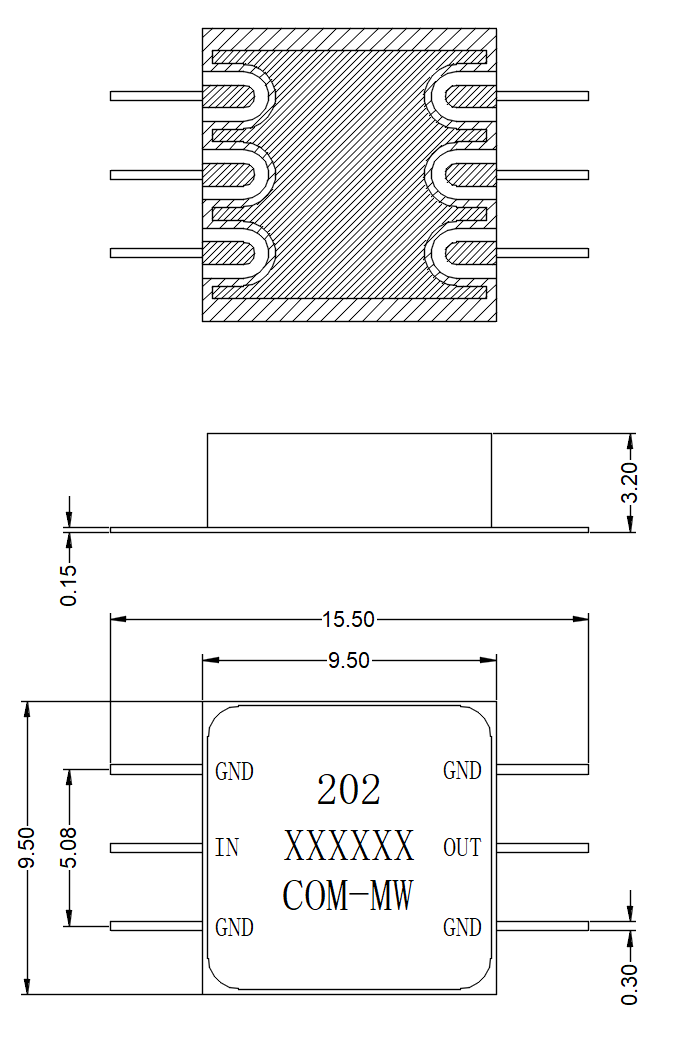

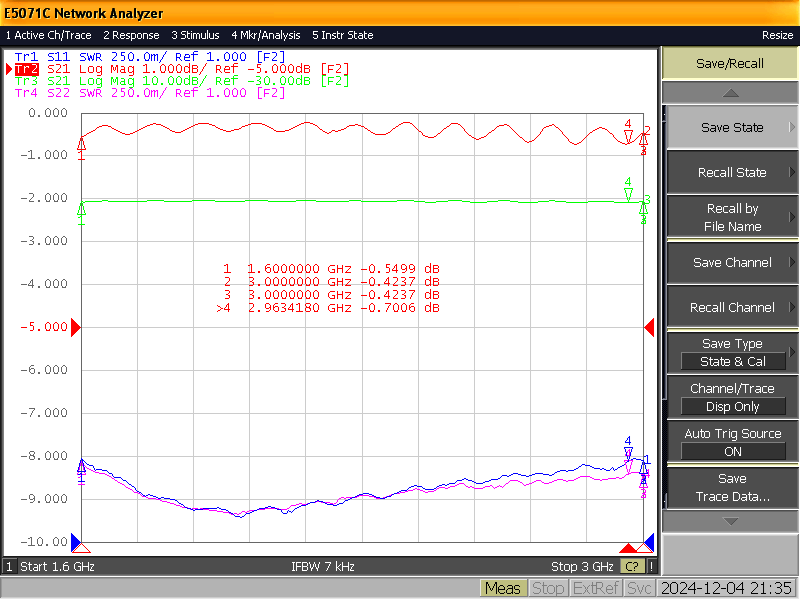

| Frequency MHz | S11 VSWR | S21损耗 | S22 VSWR |
|---|---|---|---|
| 1600 | 1.49 | -0.54 | 1.46 |
| 1740 | 1.3 | -0.39 | 1.29 |
| 1880 | 1.19 | -0.26 | 1.19 |
| 2020 | 1.17 | -0.23 | 1.18 |
| 2160 | 1.22 | -0.19 | 1.22 |
| 2300 | 1.28 | -0.27 | 1.27 |
| 2440 | 1.32 | -0.36 | 1.31 |
| 2580 | 1.35 | -0.56 | 1.31 |
| 2720 | 1.39 | -0.64 | 1.34 |
| 2860 | 1.45 | -0.51 | 1.38 |
| 3000 | 1.47 | -0.41 | 1.39 |
1, Pay attention to the direction of input and output, reverse connection may cause the product to burn out.
2. Note that there is no DC blocking capacitor inside the input and output, and an external 100pF capacitor is required.
