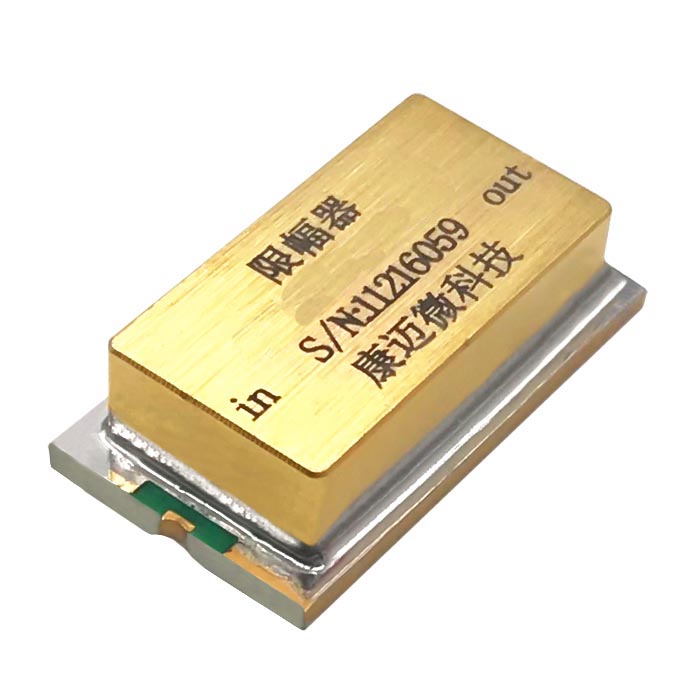

Frequency1~300MHz, Clipping level13dBm, Power Capacity20W, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1 | ~ | 300 | MHz |
| Clipping level | 13 | dBm | ||
| IL | 0.5 | dB | ||
| VSWR | 1.5 |
| Power Capacity | 20W Design assurance |
| Impedance | 50Ω |

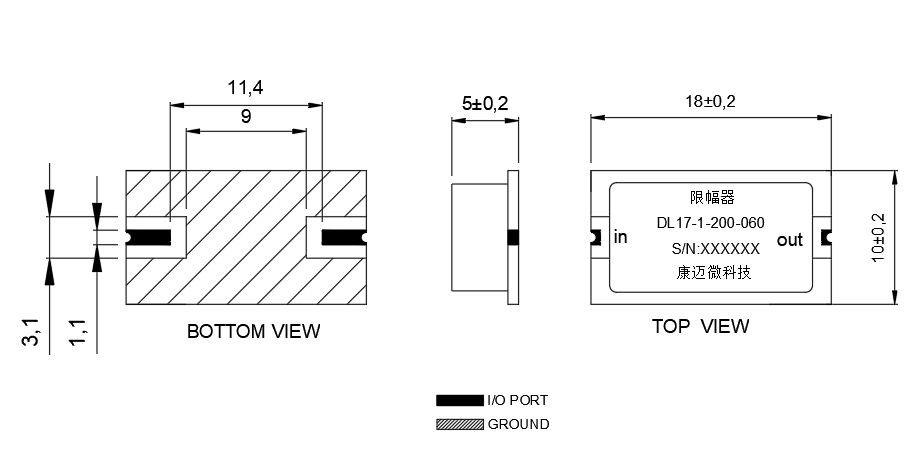

| Connector | SMD |
| Operation Temp. | -45~+75℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
1, Pay attention to the direction of input and output, reverse connection may cause the product to burn out.
