Frequency2425~2475MHz, Forward Power6500W, Waveguide
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2425 | ~ | 2475 | MHz |
| IL | 0.25 | dB | ||
| Isolation | 15 | dB@18-28℃ | ||
| Isolation | 18 | dB@25±1℃(6L/min) | ||
| VSWR | 1.2 | |||
| Coupling | 49 | 50 | 51 | dB |
| Forward Power | 6500W Design assurance |
| Reverse power | Arbitrary phase total reflected |
| Direction | Anticlockwise |
| Connector | Waveguide |
| Monitoring Probe | N-K |
| Waveguide port | WR340/WG9A/R26 |
| Waveguide flange | UDR26 |
| Coolant | water |
| Water Input pressure | 0.2-0.3Mpa |
| Water leak test pressure | 1Mpa,10min |
| Coolant connectors | Gas G 1/4’’ |
| Operation Temp. | 0~+40℃ Design assurance |
| Storage Temp. | -0~+60℃ Design assurance |
| Body Material | antirust aluminum |
| Mounting holes | φ6.35 clear holes |

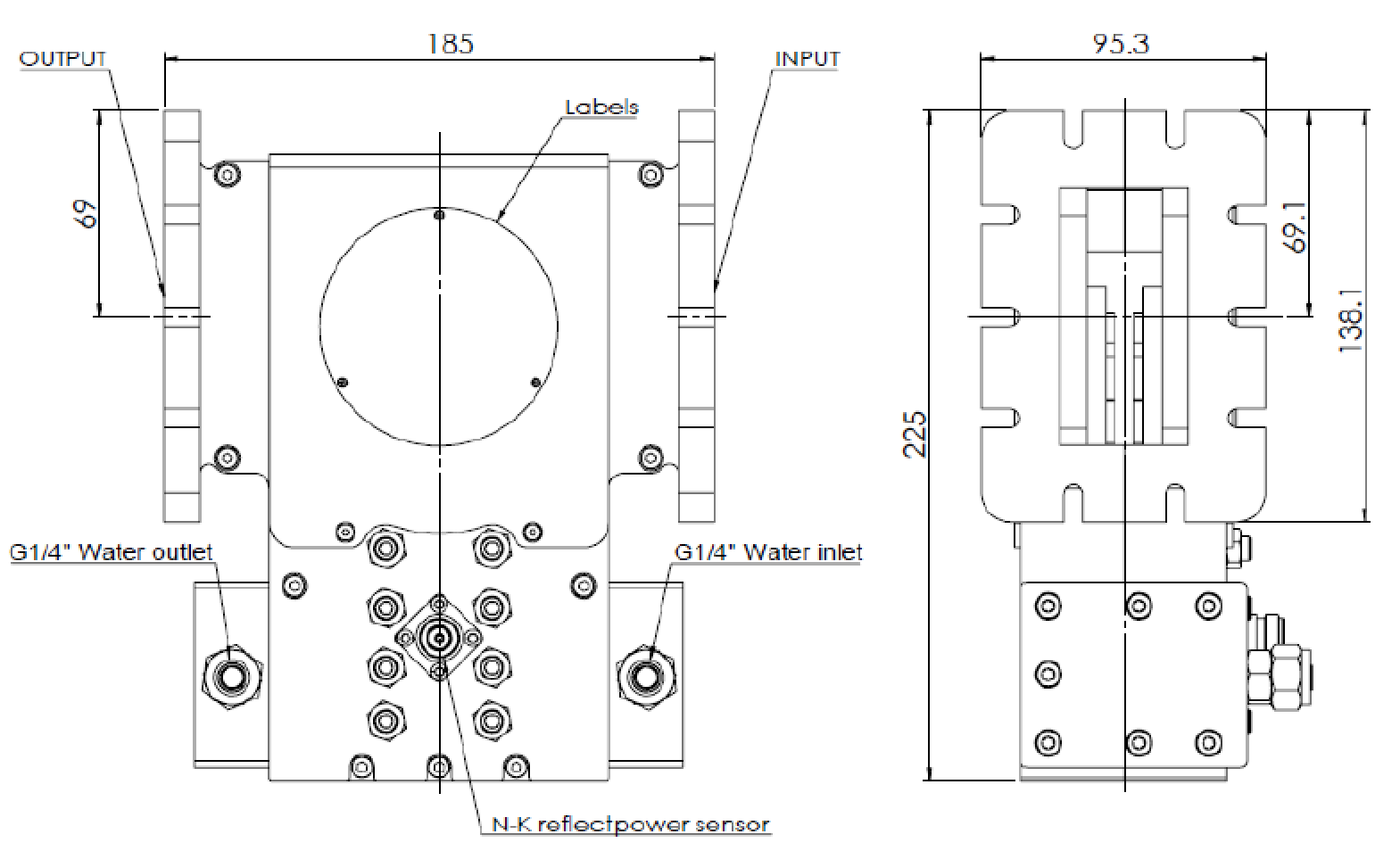

Before product testing or working, pure water (clean, free of impurities, bubbles and stable flow rate) must be introduced from the water inlet. After the water flow rate is stable, the electrical specifications can be tested, and the isolation specification at this time shall prevail. All products delivered keep in line with requirements of the technical datasheet.
