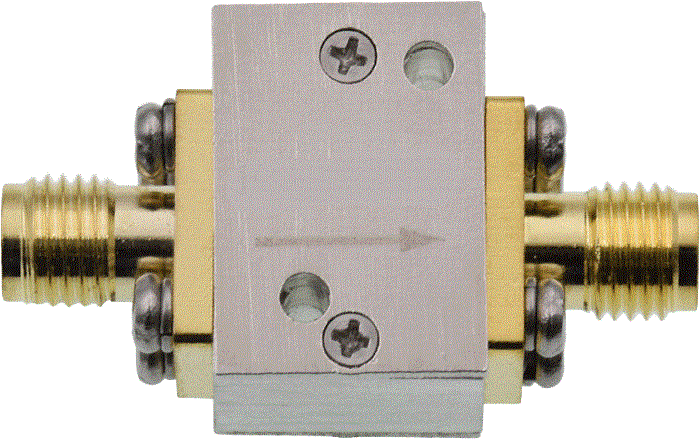

Frequency18~28GHz, Forward Power5W, 2.92-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, small volume.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 18 | ~ | 28 | GHz |
| IL | 0.8 | dB | ||
| Isolation | 14 | dB | ||
| VSWR | 1.5 |
| Forward Power | 5W Design assurance |
| Reflected power | 1W Design assurance |
| Direction | Left to right |
| Connector | 2.92-K |
| Impedance | 50Ω |
| Operation Temp. | -30~+70℃ Design assurance |

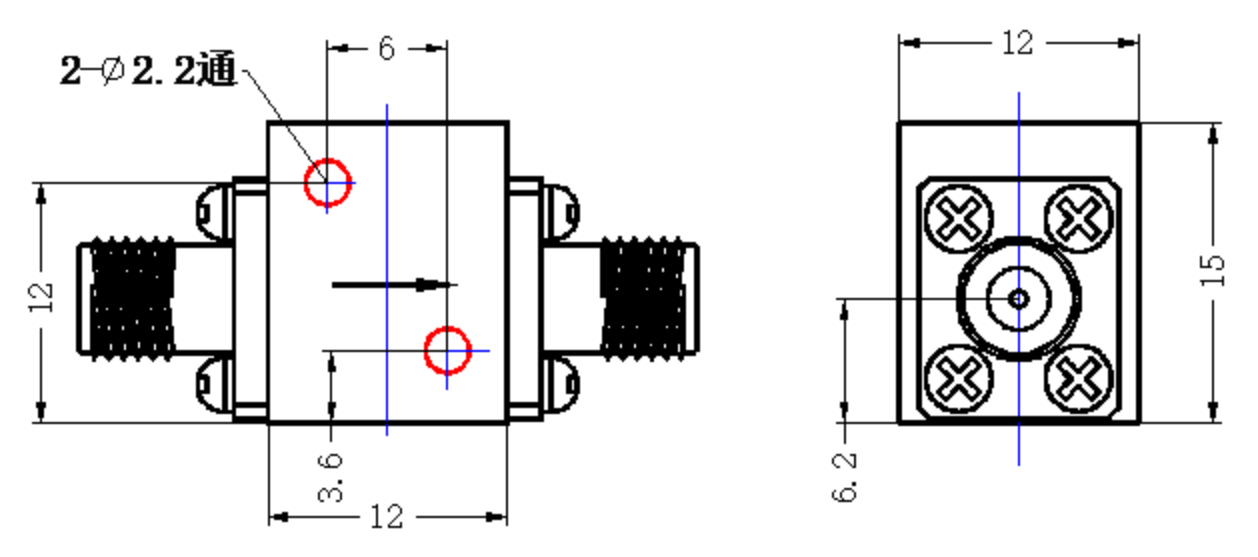

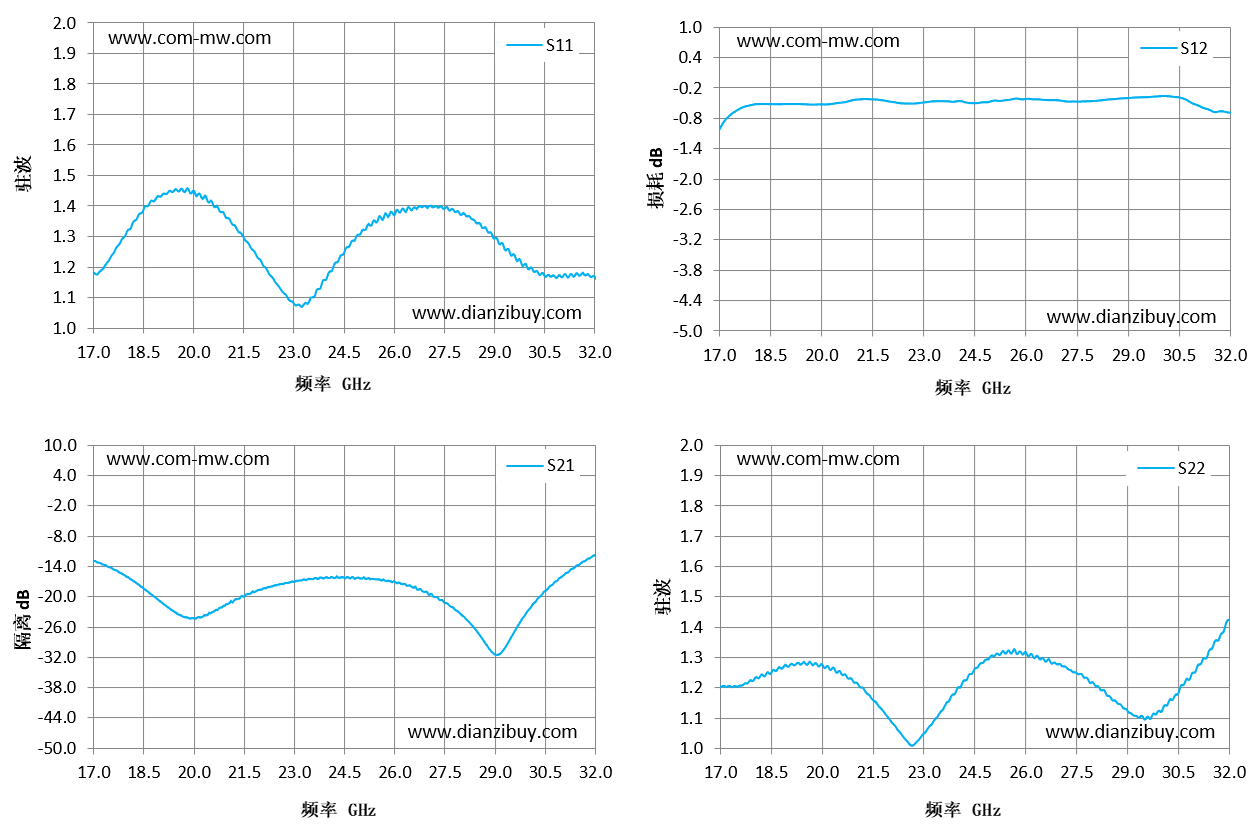

| Frequency(GHz) | S11 VSWR | S21 ISO dB | S12 IL dB | S22 VSWR |
|---|---|---|---|---|
| 17 | 1.18 | -12.93 | -1.04 | 1.21 |
| 18.07 | 1.32 | -16.4 | -0.53 | 1.24 |
| 19.14 | 1.44 | -21.65 | -0.52 | 1.28 |
| 20.21 | 1.43 | -24.05 | -0.53 | 1.26 |
| 21.29 | 1.32 | -20.48 | -0.42 | 1.19 |
| 22.36 | 1.16 | -17.91 | -0.51 | 1.04 |
| 23.43 | 1.08 | -16.46 | -0.46 | 1.11 |
| 24.5 | 1.25 | -16.28 | -0.5 | 1.26 |
| 25.57 | 1.37 | -16.65 | -0.43 | 1.31 |
| 26.64 | 1.39 | -18.23 | -0.44 | 1.29 |
| 27.71 | 1.39 | -22.03 | -0.47 | 1.24 |
| 28.79 | 1.32 | -29.95 | -0.41 | 1.15 |
| 29.86 | 1.2 | -24 | -0.37 | 1.11 |
| 30.93 | 1.17 | -16.3 | -0.52 | 1.25 |
| 32 | 1.17 | -11.78 | -0.69 | 1.42 |
The installation surface is flat, and the grounding is good. The isolator and circulator are unidirectional devices, so pay attention to the signal direction of input and output ports. Isolators and circulator are magnetic devices, Please use stainless steel screws to fix them, It is forbidden to use steel screws, It is forbidden to install the devices on the steel shell. They are installed in the same assembly with other devices with permanent magnets or other isolators, Please keep the distance between the devices greater than 1cm, otherwise the electrical performance of the product may be affected. If the overall temperature of the product is greater than 100 ℃, please negotiate with us before placing an order. Clean the surface of the product, do not immerse the product in cleaning solution for cleaning. The isolator and circulator should be stored separately for a long time, Please store them in a moisture-proof box with humidity less than 25%.
