Stopband F98MHz, Stopband F892.5MHz, ≥25dB, PassbandDC~80MHz, ~825MHz, ~1350MHz, N, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

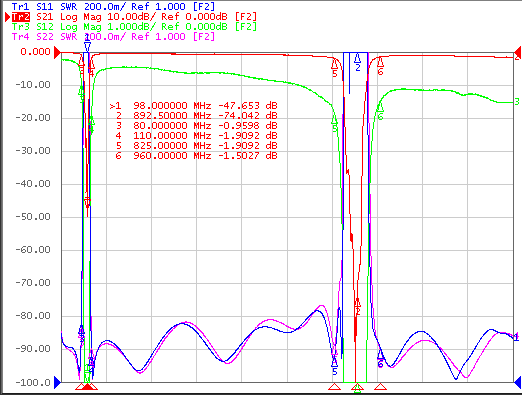

| Parameters | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|
| Stopband F | 98 | MHz | |||
| Stopband F | 892.5 | MHz | |||
| Stopband Rej. | ≥ | 25 | dB | ||
| Passband | DC | ~ | 80 | MHz | |
| Passband | 110 | ~ | 825 | MHz | |
| Passband | 960 | ~ | 1350 | MHz | |
| Passband IL | 3.0 | dB | |||
| Passband VSWR | 1.5 |

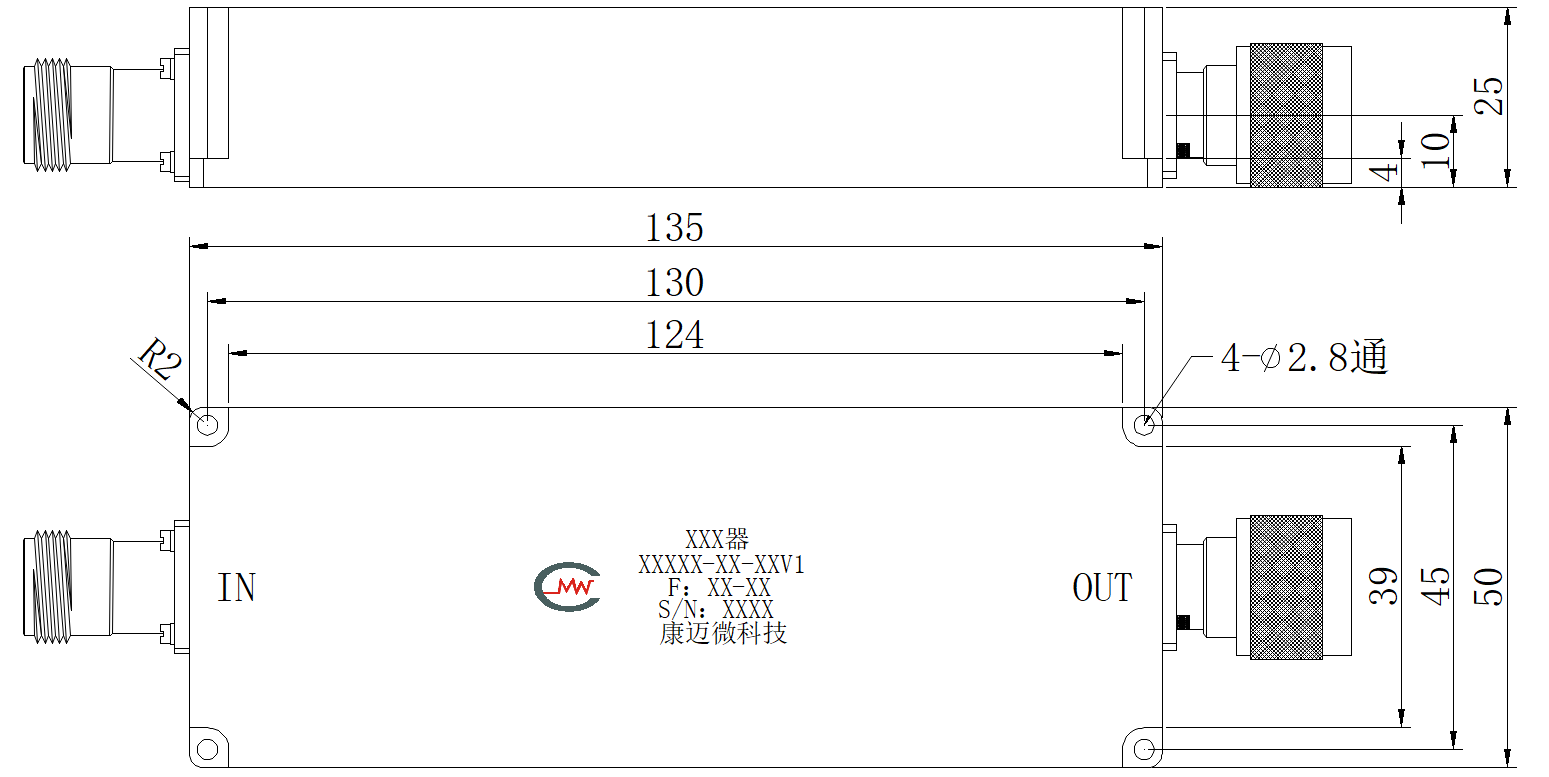

| Connector | N -F（输入） |
| Connector | N -M(Output) |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Baking paint (matte brown green) |
| Power Capacity | 2W design guarantee (input anti burn power) |
| Operation Temp. | -10~+55℃ |
| Storage Temp. | -25~+70℃ Design assurance |
| Limiting function | Limit to 10dBm; (Input Port Limiting) |
| Power requirements | Capable of direct current of+15V/1A; |
| Feed direction | RF signal output terminal to signal input terminal |
| Waterproof requirements | Has rainproof ability and can work outdoors |
| Other | / |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
